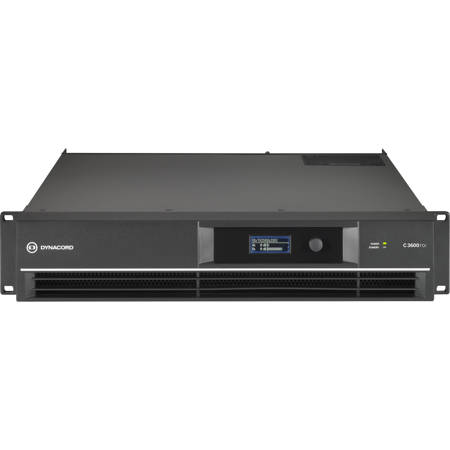

Dynacord C3600FDI-US 2x 1800W DSP Power Amplifier with FIR Drive, Phoenix Connectors, Install, 70V/100V Output, GPI Remote Power

SKU: DYC3600FDIUS MFR: F.01U.314.195
Earn VIP Reward Points

Key Features

  • Experience powerful, reliable audio with this Dynacord power amplifier, perfect for live sound.
  • This power amplifier delivers high power output (up to 1800W) for robust, clear sound amplification.
  • Enjoy low distortion and a clean signal with a >109 dB signal-to-noise ratio on this amplifier.
  • With input impedance at 20KOhms, this power amplifier integrates seamlessly into your audio setup.
  • Benefit from reliable protection features, ensuring longevity and consistent performance for your amp.
  • Optimize your sound with built-in DSP, FIR filters, and EQ for precise audio control on this amplifier.
See More Product Details
Special Order?Estimated to Ship: 09/11/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Dynacord C3600FDI-US Specifications

  • Load Impedance

    2 Ohms
    2.7 Ohms
    4 Ohms
    8 Ohms

  • Maximum Output Power, Single Channel

    2 Ohms: 3200W
    2.7 Ohms: 2700W
    4 Ohms: 1800W
    8 Ohms: 950W

  • Maximum Output Power, Dual Channel

    2 Ohms: 3000W
    2.7 Ohms: 2500W
    4 Ohms: 1700W
    8 Ohms: 900W

  • Maximum Output Power, Bridged

    4 Ohms: 6000W
    8 Ohms: 3400W

  • Direct Drive

    2 Ohms: 70V Operation
    4 Ohms: 100V Operation

  • Load Capability

    4 Ohms: 2x 1250W (-1.5 dB)

  • Maximum RMS Voltage Swing

    90.6 V (THD = 1%, 1 kHz)

  • Voltage Gain Ref. 1 kHz

    32.0 dB

  • THD at 1200W/4 Ohms MBW = 80kHz, 1kHz

    < 0.05%

  • IMD-SMPTE, 60 Hz, 7 kHz

    < 0.1%

  • DIM30, 3.15 kHz, 15 kHz

    < 0.05%

  • Maximum Input Level

    +21 dBu

  • Crosstalk ref. 1 kHz, at 100W/4 Ohms

    < -80 dB

  • Frequency Response, ref. 1 kHz

    10 Hz to 21 kHz (+/-1 dB)

  • Input Impedance, Active Balanced

    20KOhms

  • Signal to Noise Ratio Amplifier

    >109 dB (A-weighted, ref to Max. Output Power at 8 Ohms)

  • Output Noise, A-weighted

    < -68 dBu

  • Output Stage Topology

    Class H

  • Power Requirements

    240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)

  • Power Consumption

    850 W (1/8 Max Output Power at 4 Ohms)

  • Mains Fuse

    240 V/230 V: T15AH; 120 V/100 V: T30AH

  • Protection

    Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay

  • Cooling

    Front-to-rear, 3-stage-fans

  • Ambient Temperature Limits

    5 to 40 deg. C (41 to 104 deg. F)

  • Safety Class

    I

  • Signal Processing

    FIR Filters, Audio Limiters Output delay per channel, 31 band GEQ per channel, PEQ per channel, Load impedance

  • Remote Power ON/GPIO

    Power remote via switch, delay time selectable
    Floating relay contacts (show protect mode)
    Inputs for preset selection

  • Dimensions (WxHxD)

    483 x 88 x 462.4mm (19.02 x 3.46 x 18.20")

  • Weight

    18.2kg (40.12 lbs)

  • UPC Code

    800549803458

About Dynacord C3600FDI-US

What sets the Dynacord C3600FDI-US Power Amplifier apart is its robust design and advanced technology, tailored for professional audio installations that demand continuous operation. This powerful 2x 1800W amplifier is engineered to deliver high-quality sound reinforcement in a variety of settings, from concert halls to houses of worship.

The C3600FDI-US stands out with its ability to operate at low impedances of 2, 4, or 8 Ohms, and it can directly drive 100V loudspeaker lines with a minimal loss of -1.5 dB, eliminating the need for output transformers. Its built-in digital signal processing (DSP) with FIR Drive technology ensures precise sound control and optimization, allowing for fine-tuning of audio to achieve the perfect acoustic environment.

Crafted with reliability in mind, the C Series amplifier employs Class A/B and Class H topologies, renowned for their exceptional acoustic performance and durability. The connectivity of this unit is specifically designed to meet the intricate requirements of fixed installations, ensuring seamless integration into any professional audio setup.

For those conscious of energy consumption, the C3600FDI-US includes a power-saving standby mode, reducing the cost of ownership without compromising on performance. The front panel features an LC display for local control and monitoring, while the intuitive system control software facilitates quick system setup, flexible management, and comprehensive supervision of the amplifier's functions.

Moreover, the inclusion of Phoenix connectors and GPI remote power capability enhances the versatility and ease of use of this amplifier, making it a reliable choice for audio professionals seeking a durable and advanced solution for their installation needs. With the ability to power two speakers or audio systems simultaneously, the C3600FDI-US is an indispensable tool for creating immersive soundscapes in any venue.

Dynacord C3600FDI-US Features

  • Professional Installation DSP amplifier
  • Optimized for LZ and 100V Direct Drive Operation
  • Fully integrated professional speaker processing with FIR Drive technology
  • Market leading acoustic performance and rock solid reliability
  • Intuitive system control software, makes setup and control easy

Product Documents

User Manual

Key Features

  • Experience powerful, reliable audio with this Dynacord power amplifier, perfect for live sound.
  • This power amplifier delivers high power output (up to 1800W) for robust, clear sound amplification.
  • Enjoy low distortion and a clean signal with a >109 dB signal-to-noise ratio on this amplifier.
  • With input impedance at 20KOhms, this power amplifier integrates seamlessly into your audio setup.
  • Benefit from reliable protection features, ensuring longevity and consistent performance for your amp.
  • Optimize your sound with built-in DSP, FIR filters, and EQ for precise audio control on this amplifier.

What's in the box:

  • Dynacord C3600FDI-US 2x 1800W DSP Power Amplifier
  • Mains Cord
  • USB Cable
  • RMK15 Rear Rack Mount Kit
  • MARC Multi Amplifier Remote Control Software
  • Installation Manual
  • Safety Instruction Card
  • Dynacord Warranty
