Deity Microphones Connect Deluxe Kit w/2x BP-TRX Tx, 2-Ch Rx & 2x W.Lav TRS Mics
See all Deity Microphones items

Deity Microphones Connect Deluxe Kit with 2x BP-TRX Transmitters/Pocket Recorder, Dual-Channel Receiver and 2x W.Lav TRS Lavalier Microphones

SKU: DYCDELKITUS
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Deity Microphones Connect Deluxe Kit Specifications

Included Items

Included Items

Jump to...

  • Additional Included Items

    2x DUO-RX External Antennas
    USB-C to USB-A Firmware Update Adapter
    Cold Shoe
    Sync Cable
    Hard-Case with Foam Insert
    Manual

BP-TRX Transmitter

Jump to...

  • Transmission Type

    2.4GHz

  • Modulation Type

    Proprietary Protocol

  • RF Protection

    Encrypted RF Signal

  • Frequency Type

    AAFP

  • RF Output Power

    10mw, 25mW, 50mW, 100mW, AUTO

  • Latency

    19ms

  • Range (distance)

    Up to 100m

  • Bitrate/Sampling

    24bit/48KHz

  • Frequency Response

    20 - 20KHz

  • Input Connection

    Locking 3.5mm TRS

  • Input Type

    Mono, Stereo

  • Input Level

    Mic, Line

  • Input Mic Power

    2.5V

  • Input Gain

    -12dB to +36dB

  • Limiter

    Guard Rail Analog Limiter

  • Low Cut Filter

    Off, 20Hz to 200Hz

  • Output Connection

    Locking 3.5mm TRS

  • Output Level

    Mic, Line, Headphone

  • Output Type

    XLR, DSLR, TC Sync

  • Timecode Accuracy

    30.2ppm

  • Timecode Type

    SMTPE

  • Timecode Frame-Rates

    23.976ND, 24ND, 25ND, 29.97ND, 29.97D, 30ND, 30D

  • Antenna Inputs

    Internal & External SMA

  • Recording

    BWF .wav file

  • Card Type

    Micro SD

  • Micro SD Max Size

    Up to 128Gb

  • USB update

    exFat/Fat16/Fat32

  • Display Type

    1.3" OLED Display

  • Battery Capacity

    2800mAh

  • Battery Working Time

    -12Hrs@100mW RF Output

  • Battery Life

    12Hrs TX Mode
    12Hrs RX Mode
    21Hrs REC Only Mode
    +25Hrs TC Box Mode

  • Battery Charge Time

    130 Minutes

  • Temperature Range

    14 Degree F to +113 Degree F (-10 Degree C to +45 Degree C)

  • Battery Info

    Required, included

  • Battery Material

    Lithium-Ion

  • Battery Quantity

    1

  • Battery Type

    Non-universal

  • Dimensions

    3.29 x 2.5 x 0.72" (83.75 x 63.5 x 18.5mm)

  • Weight

    5.64 oz (160g)

Receiver

Jump to...

  • Transmission Type

    2.4GHz

  • Modulation Type

    Proprietary Protocol

  • RF Protection

    Encrypted RF Signal

  • Frequency Type

    AAFP

  • RF Output Power

    10mw, 25mW, 50mW,100mW

  • Latency

    19ms

  • Bitrate/Sampling

    24bit/48KHz

  • Frequency Response

    50 - 20KHz

  • Output Type

    XLR, DSLR

  • Antenna Inputs

    Internal & External SMA

  • Output Connection

    2x Locking 3.5mm TRS

  • Output Level

    Mic

  • USB update

    exFat/Fat16/Fat32

  • Battery Type

    Lithium-Ion Rechargeable Battery

  • Battery Capacity

    2200mAh

  • Battery Life

    12 Hrs

  • Battery Charge Time

    70 Minutes

  • Display Type

    1.3" OLED Display

  • Dimensions

    3.44 x 4.44 x 1.31" (87.4 x 113 x 33.5mm)

  • Weight

    8.74 oz (248g)

  • Temperature Range

    14 Degree F to +113 Degree F (-10 Degree C to +45 Degree C)

W.Lav TRS Lavalier Microphone

Jump to...

  • Color

    Black

  • Sound Field

    Mono

  • Frequency Response

    20Hz - 20KHz

  • Polar Pattern

    Omni

  • Capsule Type

    Pre-Polarized Condenser

  • Sensitivity

    -40dB

  • Max SPL

    130dB SPL

  • Dynamic Range

    110dB typical

  • Waterproof Standard

    IP57

  • Mic Head Size

    4 x 17mm

  • Cable Length

    51.18" (1.3m)

  • Connector Type Locking

    3.5mm TRS

General

Jump to...

  • Battery Capacity

    5.5 Wh

Other

Jump to...

  • UPC Code

    6971842181056

About Deity Microphones Connect Deluxe Kit

The Deity Connect Deluxe Kit is the ultimate bundle in digital wireless. Remote control either of the included BP-TRX units from the DUO-RX. Never worry about audio interference ever again thanks to having a backup recorder you can switch.

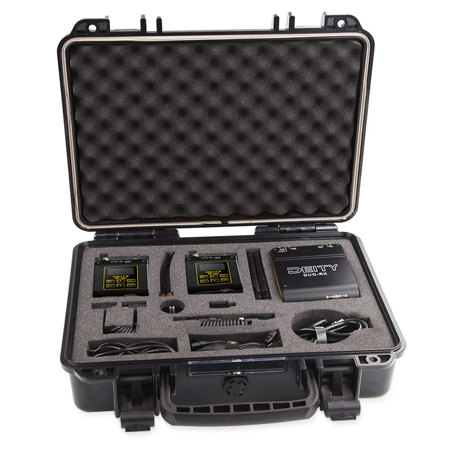

The Deity Connect Deluxe Kit includes everything someone might need to capture audio. Featuring both XLR and 3.5mm audio cables for going into an audio recorder, cinema camera or DSLR. The kit also includes lavaliers, cable ties, and even a waterproof hard carrying case to keep it all organized between shoots.

Deity Microphones Connect Deluxe Kit Features

  • 2x BP-TRX + 1x Dual Channel RX
  • Includes Cables, Lavs, and Hard-case with foam insert
  • Has a range of 100 meters
  • 12Hrs TX and RX Mode
  • 21Hrs REC Only Mode
  • +25Hrs TC Box Mode
  • Able to take up to 128Gb Micro SD
  • Metal Build
  • Has an on-board timecode audio recorder
  • Can jam to external timecode or generate and output its own
  • The onboard analog limiter also prevents audio from clipping

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 2x BP-TRX + 1x Dual Channel RX
  • Includes Cables, Lavs, and Hard-case with foam insert
  • Has a range of 100 meters
  • 12Hrs TX and RX Mode
  • 21Hrs REC Only Mode
  • +25Hrs TC Box Mode

What's in the box:

  • 2x Deity Microphones BP-TRX Transmitters/Pocket Recorder
  • Receiver with Hook & Loop Strap
  • 2x W.Lav TRS Lavalier Microphones
  • 2x Cable Ties
  • 2x Microphone Tie Clips
  • 2x Foam Windscreens
  • Locking TRS to TRS Coiled Audio Cable
  • 2x Type-C Charging and Data Cables
  • Time Code Sync & Audio Cable
  • 2x 3.5mm TRS to 3-Pin XLR Audio Cables
  • 2x BP-TRX External Antennas
  • (See Specification Section for Additional Included Items)
  • Deity Microphones 2 Year Limited Warranty & 6 Month Extension with R
