6 + 4
2 Pre, 2 Post, 2 Pre/Post switchable
0 to +60 dB / +10 to +60 dB
-10 to +20 dB
MIC input to Master A L/R outputs, +16 dBu, typical: < 0.005%
-3 dB, ref. 1 kHz, any input to any Mixer output: 15 Hz to 70 kHz
Fader and FX/AUX/MON-Send attenuation: >85 dB
Channel to Channel: < -80 dB
> 80 dB
MIC / LINE (Mono) / LINE (Stereo) / CD (Stereo): 74 dBu (155 MuV) / -54 dBu (1.55 mV) / -34 dBu (15.5 mV) / -34 dBu (15.5 mV)
+21 dBu
+41 dBu / +30 dBu
+22 dBu
+22 dBu
2 kOhms / > 3.3 kOhms
10 kOhms
>15 kOhms
47 Ohms
75 Ohms
-130 dBu
Master fader down: -97 dBu
Master fader 0 dB, Channel fader down: -91 dBu
Master fader 0 dB, Channel fader 0 dB, Channel gain unity: 83 dBu (A-weighted)
+/-15 dB / 60 Hz
+/-15 dB / 100 Hz to 8 kHz
+/-12 dB / 2.4 kHz
+/-15 dB / 12 kHz
+/-10 dB / Q = 1.5 to 2.5 (63, 125, 250, 400, 630, 1k, 1.6k, 2.5k, 4k, 6.3k, 12k Hz)
45W
50W
f = 80 Hz, 18 dB/oct.
Switchable
70 Hz to 7 kHz, Notch, -9 dB
Dual stereo 24/48-bit multi effects processors, 100 Factory + 20 User, Tap-Delay
Footswitch, MIDI
128 x 64 pixels, OLED
4 In / 4 Out
24-bit, 44.1 / 48 / 88.2 / 96 kHz
USB 2.0, Female Type B
5-pin DIN connector, In / Out
MON 1, MON 2, MASTER A
Mains Over/Undervoltage, High Temperature (MuC controlled)
48 V DC
100 V to 240 V AC, 50 Hz to 60 Hz (SMPS with auto range mains input)
510.5 x 155 x 498.5mm (20.10 x 6.10 x 19.63")
Rack-mount: 483.0 x 135.0 x 443.7mm (19.02 x 5.31 x 17.47") (Without lid)
Including Rackmount Kit: 9.5kg (20.94 lbs) (without lid)

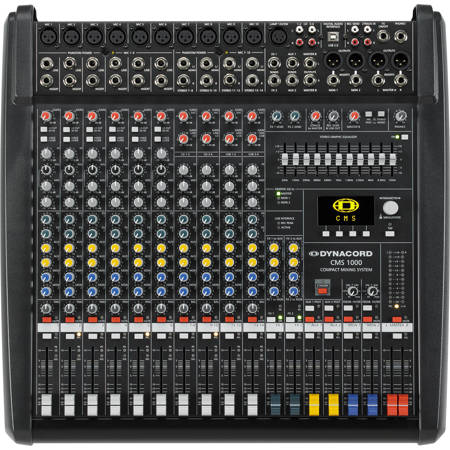

The Compact Mixing System has seized pole position in this segment of the market by virtue of the quality of its sound, components and features. By integrating a high-quality mixer, two digital effects processors of studio grade, a graphic equalizer and also a professional digital interface to PC or Mac, the CMS mixers represent the ideal solution for a large number of demanding applications in the audio sector.
The mixing section starts with 10 lowest noise, discrete microphone preamps. 6 auxiliary busses, two of them switchable pre/post fader, allow high flexibility for monitoring. The two effects processors offer 100 factory presets, including the already legendary PowerMate-reverbs. A TAP key allows precise setting of delay times. Further, each preset can be edited and stored to 20 User memories.
The built in uncompromising USB audio interface shares 4 playback and 4 recording channels simultaneously with a PC or Mac, following studio standard 24-bit / 96 kHz. An additional MIDI interface allows integration of instruments, such as keyboards. A license for Steinbergs Cubase software is part of the package. The 11 band stereo graphic equalizer can be routed flexible to master or monitor channels.
For dark environments an optional gooseneck light can be connected. All faders are dust protected and not least the balanced XLR outputs for master and monitor underline the professional approach. Optional a very robust cover lid with an integrated handle is available. A solution that offers optimal protection for the device as well as greater carrying comfort without the need of adding a large, heavy flight case.
