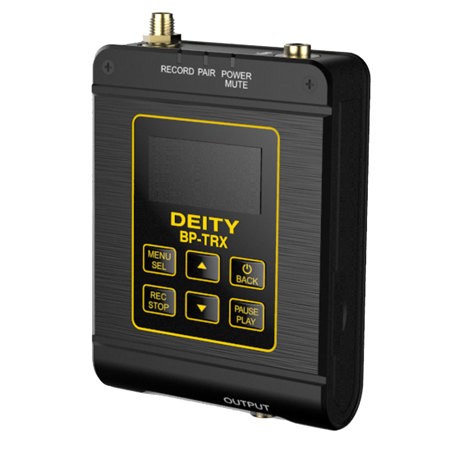

Deity Microphones BP-TRX Transmitter/Pocket Recorder with W.Lav TRS Lavalier Microphone

SKU: DYDCBPTRXUS

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?EDDIE L : Needed two. Already had one.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Deity Microphones BP-TRX Specifications

BP-TRX Transmitter

BP-TRX Transmitter

Jump to...

  • Transmission Type

    2.4GHz

  • Modulation Type

    Proprietary Protocol

  • RF Protection

    Encrypted RF Signal

  • Frequency Type

    AAFP

  • RF Output Power

    10mw, 25mW, 50mW, 100mW, AUTO

  • Latency

    19ms

  • Range (distance)

    Up to 100m

  • Bitrate/Sampling

    24bit/48KHz

  • Frequency Response

    20 - 20KHz

  • Input Connection

    Locking 3.5mm TRS

  • Input Type

    Mono, Stereo

  • Input Level

    Mic, Line

  • Input Mic Power

    2.5V

  • Input Gain

    -12dB to +36dB

  • Limiter

    Guard Rail Analog Limiter

  • Low Cut Filter

    Off, 20Hz to 200Hz

  • Output Connection

    Locking 3.5mm TRS

  • Output Level

    Mic, Line, Headphone

  • Output Type

    XLR, DSLR, TC Sync

  • Timecode Accuracy

    30.2ppm

  • Timecode Type

    SMTPE

  • Timecode Frame-Rates

    23.976ND, 24ND, 25ND, 29.97ND, 29.97D, 30ND, 30D

  • Antenna Inputs

    Internal & External SMA

  • Recording

    BWF .wav file

  • Card Type

    Micro SD

  • Micro SD Max Size

    Up to 128Gb

  • USB update

    exFat/Fat16/Fat32

  • Display Type

    1.3" OLED Display

  • Battery Capacity

    2800mAh

  • Battery Working Time

    -12Hrs@100mW RF Output

  • Battery Life

    12Hrs TX Mode
    12Hrs RX Mode
    21Hrs REC Only Mode
    +25Hrs TC Box Mode

  • Battery Charge Time

    130 Minutes

  • Temperature Range

    14 Degree F to +113 Degree F (-10 Degree C to +45 Degree C)

  • Battery Info

    Required, included

  • Battery Material

    Lithium-Ion

  • Battery Quantity

    1

  • Battery Type

    Non-universal

  • Dimensions

    3.29 x 2.5 x 0.72" (83.75 x 63.5 x 18.5mm)

  • Weight

    5.64 oz (160g)

W.Lav TRS Lavalier Microphone

Jump to...

  • Color

    Black

  • Sound Field

    Mono

  • Frequency Response

    20Hz - 20KHz

  • Polar Pattern

    Omni

  • Capsule Type

    Pre-Polarized Condenser

  • Sensitivity

    -40dB

  • Max SPL

    130dB SPL

  • Dynamic Range

    110dB typical

  • Waterproof Standard

    IP57

  • Mic Head Size

    4 x 17mm

  • Cable Length

    51.18" (1.3m)

  • Connector Type Locking

    3.5mm TRS

Other

Jump to...

  • UPC Code

    6971842181018

About Deity Microphones BP-TRX

The BP-TRX is the next evolution in 2.4GHz digital wireless microphones systems. Using its bi-directional transceiver radio, the BP-TRX can be used as body pack transmitter or as a single channel wireless receiver with special receiver modes to act as a wireless IEM system for directors and producers or as a camera hop.

The BP-TRX features an on-board timecode audio recorder. It can jam to external timecode or generate and output its own. With its ability to transmit and record at the same time, you will never have to worry about missing audio due to wireless interference ever again. The on-board analog limiter also prevents audio from clipping.

Deity Microphones BP-TRX Features

  • Compatible with Deity Connect wireless systems
  • Can be used as a transmitter, receiver, or recorder
  • Has a range of 100 meters
  • 12Hrs TX and RX Mode
  • 21Hrs REC Only Mode
  • +25Hrs TC Box Mode
  • Able to take up to 128Gb Micro SD
  • Metal Build
  • Has an on-board timecode audio recorder
  • Can jam to external timecode or generate and output its own
  • The onboard analog limiter also prevents audio from clipping

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Compatible with Deity Connect wireless systems
  • Can be used as a transmitter, receiver, or recorder
  • Has a range of 100 meters
  • 12Hrs TX and RX Mode
  • 21Hrs REC Only Mode
  • +25Hrs TC Box Mode

What's in the box:

  • Deity Microphones BP-TRX Transmitter/Pocket Recorder
  • W.Lav TRS Lavalier Microphone
  • Cable Tie
  • Microphone Tie Clip
  • Foam Windscreen
  • Locking TRS to TRS Coiled Audio Cable
  • Type-C Charging and Data Cable
  • Time Code Sync & Audio Cable
  • BP-TRX External Antenna
  • Deity Microphones 2 Year Limited Warranty & 6 Month Extension with Registration
