Deity Microphones SPD Mini and SRD-Mini Power Distribution System

- SPD Mini Compact Power Distro System -
The SPD-Mini - a compact yet powerful solution for your power management needs, perfect for audio professionals seeking reliable and smart power solutions. Featuring a vibrant color screen, the SPD-Mini provides real-time telemetry data from SMbus-enabled smart batteries, giving you precise information on remaining battery life in hours, calculated in real-time based on your current amp draw. Stay ahead of your power needs with this intelligent system.

The SPD-Mini boasts five 4-pin Push-Pull Power ports, controllable via a convenient top-mounted switch, making it easy to manage your gear. The top-mounted 5V USB-C output supports 10W power delivery, ideal for quick and efficient charging.

This device seamlessly adapts to your workflow, being compatible with both TA4 Smart Battery cups and USB-C inputs. The USB-C input defaults to the 15V PD standard but is also compatible with 12V PD, offering flexibility based on your needs.

Output is unique because it transfers smart battery data to devices such as Sound Devices' 8-series audio recorders, allowing them to decode telemetry information and manage power effectively. The SPD-Mini can handle demanding devices like the SD 888, making it indispensable for high-amp-draw audio setups.

As part of our innovative Regional Power System, the SPD-Mini can be securely mounted and interconnected with other compatible devices such as the SRD Mini, sharing power effortlessly through its four threaded mounting points. This gives you an additional cable-free output, streamlining your setup and reducing clutter.

Optimize your audio gear and stay powered with the SPD-Mini.

Best for
Sound bags or sound carts where power and battery health needs to monitored without sacrificing available space.

• Narrative Story Telling
• Multi-Camera

Color Screen and More
The SPD-Mini utilizes a bright color screen that can be flipped upside down with flick of a switch. This combined with the two belt clip mounting points allow you to rig the SPD-Mini how ever you need to in your sound bag.

It also features 5x 4-Pin Push-Pull Power ports that can be turned on/off with a top mounted switch.

USB-C Output
The top of the SPD-Mini features a 5V USB-C output with support for 10Ws of power delivery. Perfect for keeping a tablet or phone topped off that's running the Sidus Audio app.

Smart Pass Thru
The SPD-Mini supports TA4 Smart Battery cups and USB-C. The USB-C input defaults to the 15V PD standard but is also compatible with the 12V PD standard.

Next to the inputs is the output. This output is unique in that it passes along the smart battery data to audio recorders that can decode the telemetry data like the Sound Devices 8-series. The output on the SPD-Mini is capable of handling the power draw up to a SD 888.

Regional Power System
The SPD-Mini is apart of our Regional Power System. This allows the SPD-Mini to lock together with other compatible devices using 4 threaded mounting points and share power between the devices.

This gives the SPD-Mini an extra cable-less output.

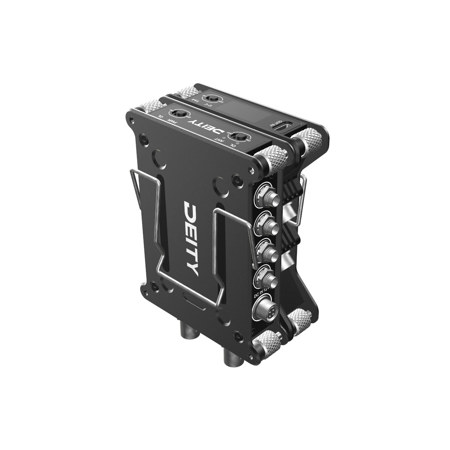

- SRD-Mini Antenna Distribution System -
Simplify the management of wireless microphone signals in demanding field conditions with the Deity Microphones SRD-Mini, an ultra-slim, portable 4-channel antenna-distribution system designed specifically for location sound mixers. This RF distro is equipped with two main ins and four outs (A and B), for a 2-to-8 split.

Supporting both passive and active antennas, the SRD-Mini features an active splitter that compensates for gain loss, ensuring that your RF signals remain strong and consistent. The unit also supplies power to external antenna circuitry. Each side of the distro (A / B) can have it's external power toggled on or off independently. The SRD-Mini is made of CNC aluminum and is ultra lightweight. Its slim and ergonomic design makes it easy to place it wherever you need to in your sound bag.

Industry Standard Connectors
• The SRD-Mini utilizes standard connectors, ensuring compatibility with a wide range of equipment
• Two 50-ohm BNC ports act as the A/B inputs while eight 50-ohm SMA outputs split the incoming signal (1 A x 4 A / 1 B x 4 B)

Wide Frequency Range
The SRD-Mini operates in the 470 MHz to 1 GHz range, allowing it to operate anywhere in the world and with nearly any UHF wireless microphone system you may already own.

Multiple Power Options
• The SRD-Mini has traditional power inputs like a 12-16.8 VDC 4-pin Hirose-compatible connector and a 5 VDC USB-C connector
• For a cable-less power solution, the unit can also be powered from the SPD-Mini power distributor (available separately) via its pogo pins

Best for
Any shooting situation where multiple RF antennas are being used or when specialized antennas such as butterfly or shark fins.

• Narrative Story Telling
• Multi-Camera Weddings
• Reality TV Productions

Active Splitter
The SRD-Mini features an active splitter that also can supply power to external antenna circuitry. Each side of the distro (A/B) can have it's external power toggled on or off independently. Above each toggle switch is an LED to indicate if the incoming signal is overloading the RF amp in the SRD-Mini.

The SRD-Mini supports both passive and active antennas.

Industry Standard Connectors
The SRD-Mini utilized connectors that are widely used through the sound community. Two 50 Ohm BNC ports act as the A/B inputs while eight 50 Ohm SMA outputs split the incoming signal.

• (1A x 4A/1B x 4B)

The operational range of the SRD-Mini is 470MHz-1GHz. This allows it to operate anywhere in the world, and with nearly any UHF wireless microphone system you may already own.

Multiple Powering Options
The SRD-Mini features the our Regional Power System, allowing it to be powered from the SPD-Mini's pogo pins for a cable-less power solution. But it also has traditional power inputs like a 4-Pin Hirose-compatible power input and USB-C.

A connection for any occasion
We have created a catalog of RF cables for any setup you might have. See the accessories tab listed above.
