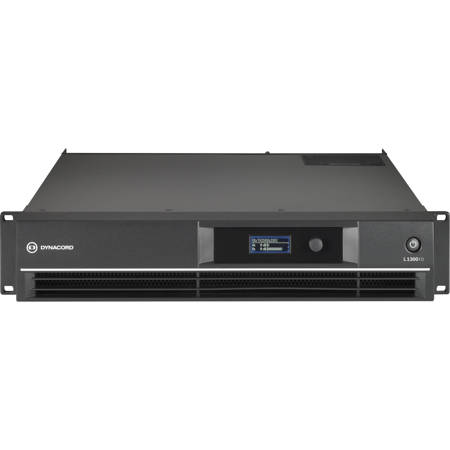

Dynacord L1300FD-US 2x 650W DSP Power Amplifier with FIR Drive
See all Dynacord items
20% Off

Dynacord L1300FD-US 2x 650W DSP Power Amplifier with FIR Drive, XLR/NL4 Connectors

SKU: DYL1300FDUS MFR: F.01U.312.384
Be the first to review this itemAsk a Question
$969.00
$1,218.00
Save: $249 (20%)
OR
$81/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience high power output with the Dynacord L1300FD-US, delivering robust audio performance.
  • Achieve pristine sound quality with a high signal-to-noise ratio, ensuring clear audio amplification.
  • Enjoy reliable protection circuits that safeguard your power amplifier from potential damage.
  • Optimize your sound with built-in DSP, offering FIR filters and precise audio adjustments.
  • Perfect impedance matching guarantees efficient power transfer and optimal speaker performance.
  • Its compact form factor makes this power amplifier ideal for both touring and fixed installations.
See More Product Details
Special Order?Estimated to Ship: 12/07/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
2-Year Adorama Protect$119.99
3-Year Adorama Protect$154.99
5-Year Adorama Protect$269.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the integrated Digital Signal Processing (DSP) in the L1300FD-US Power Amplifier?

The integrated DSP allows for more precise control of the sound and equalization. It also enables professional-grade speaker processing with FIR Drive technology, optimizing the quality and performance of the audio signal.

What are Class A/B and Class H topologies in the context of this amplifier?

Class A/B and Class H topologies refer to the design and operation of the amplifier's circuitry. These topologies are known for delivering superior acoustic performance and reliability, making them ideal for professional audio applications.

Is the L1300FD-US Power Amplifier suitable for large venues and events?

Yes, with a high wattage range of 300-399 watts per channel, the L1300FD-US Power Amplifier can handle powerful audio signals, making it suitable for use in larger venues or events.

What does the system control software included with the L1300FD-US Power Amplifier do?

The included system control software allows for fast system setup, flexible control, and comprehensive supervision of the amplifier. This makes it easy to optimize the audio quality and performance to suit specific needs.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dynacord L1300FD-US Specifications

  • Load Impedance

    2 Ohms
    2.6 Ohms
    4 Ohms
    8 Ohms

  • Maximum Output Power, Single Channel

    2 Ohms: 1100W
    2.6 Ohms: 950W
    4 Ohms: 660W
    8 Ohms: 350W

  • Maximum Output Power, Dual Channel

    2 Ohms: 1000W
    2.6 Ohms: 850W
    4 Ohms: 600W
    8 Ohms: 320W

  • Maximum Output Power, Bridged

    4 Ohms: 2000W
    8 Ohms: 1200W

  • Maximum RMS Voltage Swing

    55.3 V (THD = 1%, 1 kHz)

  • Voltage Gain Ref. 1 kHz

    32.0 dB

  • THD at 450W/4 Ohms MBW = 80kHz, 1kHz

    < 0.05%

  • IMD-SMPTE, 60 Hz, 7 kHz

    < 0.1%

  • DIM30, 3.15 kHz, 15 kHz

    < 0.05%

  • Maximum Input Level

    +21 dBu

  • Crosstalk ref. 1 kHz, at 100W/4 Ohms

    < -80 dB

  • Frequency Response, ref. 1 kHz

    10 Hz to 21 kHz (+/-1 dB)

  • Input Impedance, Active Balanced

    20K Ohms

  • Signal to Noise Ratio Amplifier

    >104 dB (A-weighted, ref to Max. Output Power at 8 Ohms)

  • Output Noise, A-weighted

    < -68 dBu

  • Output Stage Topology

    Class AB

  • Power Requirements

    240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)

  • Power Consumption

    550 W (1/8 Max Output Power at 4 Ohms)

  • Mains Fuse

    240 V/230 V: T10AH; 120 V/100 V: T20AH

  • Protection

    Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay

  • Cooling

    Front-to-rear, 3-stage-fans

  • Ambient Temperature Limits

    5 to 40 deg. C (41 to 104 deg. F)

  • Safety Class

    I

  • Signal Processing

    FIR Filters, Audio Limiters Output delay per channel, 31 band GEQ per channel, PEQ per channel, Load impedance

  • Dimensions (WxHxD)

    483 x 88 x 462.4mm (19.02 x 3.46 x 18.20")

  • Weight

    12.9kg (28.44 lbs)

  • UPC Code

    800549797719

About Dynacord L1300FD-US

A powerful and advanced solution for your audio needs, the Dynacord L1300FD-US 2x 650W DSP Power Amplifier with FIR Drive and XLR/NL4 Connectors is designed for professional dual-channel audio amplification in both live and mobile applications. This high-quality amplifier is equipped with integrated digital signal processing (DSP), offering access to professional-grade speaker processing with FIR Drive technology.

Engineered with Class A/B and Class H topologies, the L1300FD-US delivers market-leading acoustic performance and reliability, making it a durable choice for demanding audio environments. Its high wattage range of 300-399 watts per channel means it can handle powerful audio signals, making it ideal for larger venues or events.

The L1300FD-US is optimized for mobile applications, with connectivity designed to meet the needs of on-the-go audio setups. A user-friendly front panel LC display allows for local control and supervision of the amplifier, ensuring smooth operation at all times.

Moreover, the amplifier comes with intuitive system control software, enabling fast system setup, flexible control, and comprehensive supervision. This feature ensures that you can optimize the audio quality and performance to suit your specific needs.

In summary, the Dynacord L1300FD-US 2x 650W DSP Power Amplifier with FIR Drive and XLR/NL4 Connectors is a powerful, high-quality, and reliable choice for professional audio amplification in a variety of applications.

Dynacord L1300FD-US Features

  • Professional DSP amplifier for live and mobile application
  • Fully integrated professional speaker processing with FIR Drive technology
  • Market leading acoustic performance and rock solid reliability
  • True 2 Ohms stability
  • Intuitive system control software, makes setup and control easy

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Experience high power output with the Dynacord L1300FD-US, delivering robust audio performance.
  • Achieve pristine sound quality with a high signal-to-noise ratio, ensuring clear audio amplification.
  • Enjoy reliable protection circuits that safeguard your power amplifier from potential damage.
  • Optimize your sound with built-in DSP, offering FIR filters and precise audio adjustments.
  • Perfect impedance matching guarantees efficient power transfer and optimal speaker performance.
  • Its compact form factor makes this power amplifier ideal for both touring and fixed installations.

What's in the box:

  • Dynacord L1300FD-US 2x 650W DSP Power Amplifier
  • Mains Cord
  • USB Cable
  • RMK15 Rear Rack Mount Kit
  • MARC Multi Amplifier Remote Control Software
  • Installation Manual
  • Safety Instruction Card
  • Dynacord Warranty
