Dynamite Passport P4 200W AC/DC 4-Port Multicharger with Bluetooth Connectivity

SKU: DYNC3017

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Dynamite Passport P4 Specifications

  • Ampere Meter

    Yes - on main LCD display

  • Battery Balance Connector

    Four JST_XH

  • Battery Temperature Monitoring

    Yes (Temperature Sensor Not Included)

  • Battery Type

    LiPo/LiIon/LiFe/LiHV: 1-6cells
    NiMH/NiCd: 1-15cells
    Pb: 2 - 20V

  • Cooling Method

    Fan

  • Discharge

    .1A-2.0A Rate

  • Display

    480x320 color LCD

  • Input Voltage

    100-240V AC or 11-18V DC

  • Integrated Balancing

    Yes (Internal Balancer & External Adapter)

  • Maximum Charge Rate

    Channel A/B: 0.1-10A; Channel C/D: 0.1-5A

  • Model Memory

    Yes. 10 x 4

  • Output Connector

    Banana to IC3 x 4, banana to stripper x 2

  • PC Connectivity

    Yes (USB, external adapter required)

  • Peak Detection

    Yes

  • Selectable Charge Rate

    Yes- incremental (0.1A increments)

  • Software Updates

    Yes (via USB port)

  • Dimensions

    7.17 x 2.8 x 7.76" (182 x 71 x 197mm)

  • Weight

    2.94 lb (1.33kg)

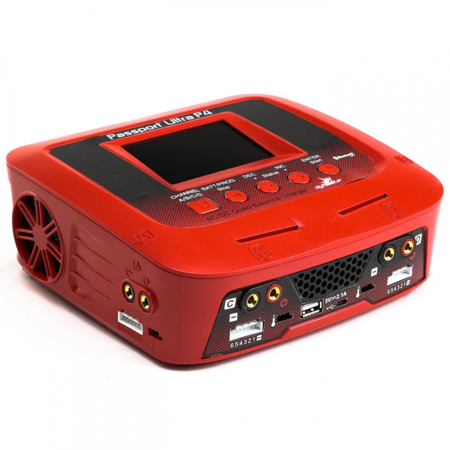

About Dynamite Passport P4

The Dynamite Passport Ultra P4 AC Pro AC/DC Four Port Multi-Charger represents the pinnacle of premium, high-performance chargers. With 200W output capability, the Passport Ultra P4 can charge low-to-medium capacity Li-Po batteries in half the time it takes lower wattage/amperage chargers. In addition, you get the full gamut of charging features, including the ability to charge virtually all battery types and intuitive LCD display.

Dynamite Dashboard

The Dynamite Dashboard provides seamless integration to select Dynamite "P" Series chargers by bringing real-time monitoring to your mobile device. You can monitor the charge status of your batteries, view real time battery stats including; battery type, battery cells, charge current, voltage, battery capacity, battery charge level and more. Simply download the app, pair your mobile device to the compatible Dynamite P-Series charger via Bluetooth and take advantage of viewing real-time charge stats while monitoring your battery's charge process. With Bluetooth communication, the Dynamite Dashboard puts your charge setting control at your fingertips.

In addition, and thanks to Dynamite's QR Scan with Smartphone control functionality, you can scan the QR code on your Dynamite Reaction 2.0 batteries to automatically set the optimal charge settings for that specific battery. This functionality is only available using Dynamite Reaction 2.0 batteries with integrated QR code functionality and makes charging easy, convenient and safe.

Dynamite Passport P4 Features

  • Powerful 200W AC/DC multicharger
  • Four channels charge four different kinds of batteries simultaneously
  • Dynamite Dashboard - smart phone control and monitoring via Bluetooth, compatible with Android and iOS
  • Backlit, 480 x 320, color LCD screen
  • Built-in balancing ports
  • 40 Battery Memory (10 Per Channel)
  • Thermal, reverse polarity, short circuit protection, over-current and low voltage protection
  • Safety timer
  • Software updates available via USB port (external adapter required)

Key Features

  • Powerful 200W AC/DC multicharger
  • Four channels charge four different kinds of batteries simultaneously
  • Backlit, 480 x 320, color LCD screen
  • Built-in balancing ports
  • 40 Battery Memory (10 Per Channel)
  • Thermal, reverse polarity, short circuit protection, over-current and low voltage protection

What's in the box:

  • Passport P4 200W AC/DC 4-Port Multicharger
  • 4x Charge Adapter (Banana to EC3 Device)
  • 4x Balancing Adapter Board (XH)
  • 2x Bare Charge Leads
  • AC Power Cord
  • Product Manual
  • Dynamite 5 Year Limited Warranty
