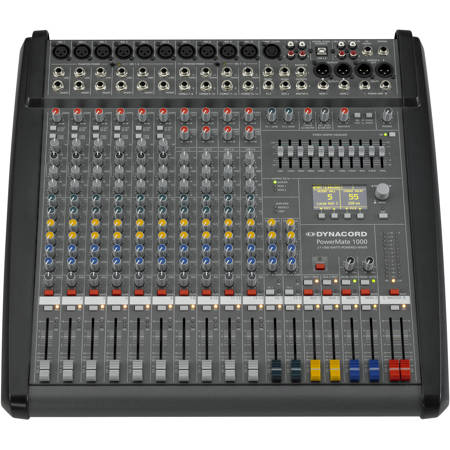

Dynacord PowerMate 1000-3 10-Channel Powered Mixer
See all Dynacord items

Dynacord PowerMate 1000-3 10-Channel Compact Powered Mixer, 6x Mic/Line + 4x Mic/Stereo-Line Channels, 2x 1000W Power Amplifier

SKU: DYPM10003UNI

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Dynacord PowerMate 1000-3 Specifications

  • Channels (Mono + Stereo)

    6 + 4

  • Auxiliary (MON, FX, AUX)

    2 Pre, 2 Post, 2 Pre/Post switchable

  • Max. Single Channel Output Power

    Dynamic-Headroom, IHF-A:
    Into 2.66 Ohms: 2x 1600W
    Into 4 Ohms: 2x 1250W
    Into 8 Ohms: 2x 675W

    Continuous, 1 kHz, THD = 1%:
    Into 2.66 Ohms: 2x 1350W
    Into 4 Ohms: 2x 1150W
    Into 8 Ohms: 2x 650W

    1 kHz, THD = 1%, Dual Channel:
    Into 2.66 Ohms: 2x 1350W
    Into 4 Ohms: 2x 1000W
    Into 8 Ohms: 2x 600W

  • Rated Output Power

    20 Hz to 20 kHz, THD < 0.5%, Single Channel:
    Into 4 Ohms: 2x 900W
    Into 8 Ohms: 2x 450W

  • Maximum Output Voltage

    74 Vrms (of power amplifier, 1 kHz, no load)

  • THD, at 1 kHz, MBW = 80 kHz

    MIC input to Master A L/R outputs, +16 dBu, typical: < 0.005%
    POWER AMP INPUTS to Speaker L/R outputs: < 0.075%

  • DIM 30

    < 0.05% (power amplifier, 3.15 kHz, 15 kHz)

  • IMD-SMPTE

    < 0.15% (power amplifier, 60 Hz, 7 kHz)

  • Frequency Response (-3 dB, ref. 1 kHz)

    Any input to any Mixer output: 15 Hz to 70 kHz
    Any input to Speaker L/R output: 20 Hz to 30 kHz

  • Crosstalk (1kHz)

    Amplifier L/R: < -85 dB
    Channel to Channel: < -80 dB
    Mute- and Standby-Switch attenuation: > 100 dB
    Fader and FX/AUX/MON-Send attenuation: > 85 dB

  • CMRR/MIC input (1 kHz)

    > 80 dB

  • Input Sensitivity

    All level controls in max. position:
    MIC inputs: +21 dBu
    Mono Line inputs: +41 dBu
    Stereo Line inputs: +30 dBu
    All other inputs: +22 dBu
    All other outputs: +22 dBu

  • Maximum Level (Mixing Desk)

    Mic inputs: +21 dBu
    Mono Line inputs: +41 dBu
    Stereo Line inputs: +30 dBu
    All other inputs: +22 dBu
    All other outputs: +22 dBu

  • Input Impedances

    MIC: 2 kOhms
    Insert Return: 3.3 kOhms
    2Track Return & CD In: 10 kOhms
    All other inputs: > 15 kOhms

  • Output Impedances

    Phones: 47 Ohms
    All other outputs: 75 Ohms

  • Equivalent Input Noise

    -130 dBu (MIC input, A-weighted, 150 ohms)

  • Noise

    Channel inputs to Master A L/R outputs, A-weighted:
    Master fader down: -97 dBu
    Master fader 0 dB, Channel fader down: -91 dBu
    Master fader 0 dB, Channel fader 0 dB, Channel gain unity: -83 dBu

  • Signal/Noise-Ratio

    105 dB (power amplifier, A-weighted, 4 Ohms)

  • Output Stage Topology

    Class D (amplifier)

  • Equalization

    LO Shelving: +/-15 dB / 60 Hz
    MID Peaking, mono inputs: +/-15 dB / 100 Hz to 8 kHz
    MID Peaking, stereo inputs: +/-12 dB / 2.4 kHz
    HI Shelving: +/-15 dB / 12 kHz
    Master EQ 11-band (63, 125, 250, 400, 630, 1k, 1.6k, 2.5k, 4k, 6.3k, 12k Hz): +/-10 dB / Q = 1.5 to 2.5

  • Filter

    LO-CUT, mono inputs: f = 80 Hz, 18 dB/oct.
    VOICE FILTER, mono inputs: switchable
    FEEDBACK FILTER, MON 1/2: 70 Hz to 7 kHz, Notch, -9 dB
    Speaker Processing: LPN, switchable

  • Effects

    Type: Dual stereo 24/48-bit multi effects processors
    Effects presets: 100 Factory + 20 User, Tap-Delay
    Remote control: Footswitch, MIDI

  • Display

    128 x 64 pixels, OLED

  • Digital Audio Interface

    Channels: 4 In / 4 Out
    AD/DA Conversion: 24-bit
    Sampling Rate: 44.1 / 48 / 88.2 / 96 kHz
    PC Interface: USB2.0, Female Type B
    Peak Display: 6 dB before Clip

  • MIDI Interface

    5-pin DIN connector, In / Out

  • Output Power Control

    Adjustable long term RMS Limiter (Speaker Protection)

  • Protection

    Mixer Outputs (Relay controlled): MON 1, MON 2, MASTER A
    Amplifier: Audio Limiters, High Temperature, DC, HF, Short Circuit, Peak Current Limiters, Turn-on Delay, Back EMF
    Switching Mode Power Supply (MuC controlled): Inrush Current Limiters, Mains Over/Under voltage, Mains Over Current, High Temperature

  • Cooling

    Continuous speed controlled Fans

  • Phantom Power

    48 V DC (switchable in groups)

  • Power Requirements

    100 V to 240 V AC, 50 Hz to 60 Hz (SMPS with auto range mains input)

  • Power Consumption

    450W at 1/8 maximum output power, 4 Ohms

  • Safety Class

    I

  • Ambient Temperature Limits

    5 to 40 deg. C (41 to 104 deg. F)

  • Dimensions (WxHxD)

    With lid: 510.5 x 164.5 x 571.5mm (20.10 x 6.48 x 22.50")
    Rack-mount: 483.0 x 135.0 x 443.7mm (19.02 x 5.31 x 17.47")

  • Weight

    Without Lid: 12.5kg (27.56 lbs)
    With Lid: 14kg (30.86 lbs)

About Dynacord PowerMate 1000-3

The PowerMate compact power mixers incorporate profound know-how, based on our research, development and inter-communication with our customers in the professional audio market, for decades. It incorporates not less than six dedicated audio devices into one compact frame: mixing console, two effects units, graphic equalizer, USB audio interface and power amplifier. Each of them is on the highest quality level as you would expect from a stand-alone device. The PowerMate is a real all-rounder for almost all applications with maximum feature set at minimum size.

The mixing section starts with 10 lowest noise, discrete microphone preamps. 6 auxiliary busses, two of them switchable pre/post fader, allow high flexibility for monitoring. The two effects processors offer 100 factory presets, including the already legendary PowerMate-reverbs. Further, each preset can be edited and stored to 20 User memories. The built in USB audio interface shares 4 playback and four recording channels simultaneously with a PC or Mac, following studio standard 24-bit / 96 kHz. An additional MIDI interface allows integration of instruments, such as keyboards.

A license for Steinberg's Cubase software is part of the package. The 11 band stereo graphic equalizer can be routed flexible to master or monitor channels. The amplifier is extremely powerful with 2 x 1000 W / 4 Ohms (RMS). Due to modern switching mode power supply technology and a class-D output stage, it's very efficient and lightweight, too. An optional speaker protection allows limitation of long-term power without giving up dynamics. Finally, the slim housing is protected by a rugged plastic lid with integrated handle for easy transportation.

Dynacord PowerMate 1000-3 Features

  • Intuitive mixer with 10 input channels (6 Mic/Line + 4 Mic/Stereo-Line)
  • Very powerful and reliable amplifier with 2 x 1.000 Watts / 4 Ohms
  • 2 High-Quality editable effects, 100 factory and 20 user presets
  • Professional 4x4 24-bit / 96 kHz USB interface with MIDI
  • Lightweight (14 kg) road-ready package with extra robust cover-lid

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Dynacord PowerMate 1000-3 10-Channel Compact Powered Mixer
  • Mains Cord (2m)
  • DVD with USB Driver/Documentation/Software
  • Owner's Manual
  • Quick Start Manual
  • Dynacord 3 Year Warranty
