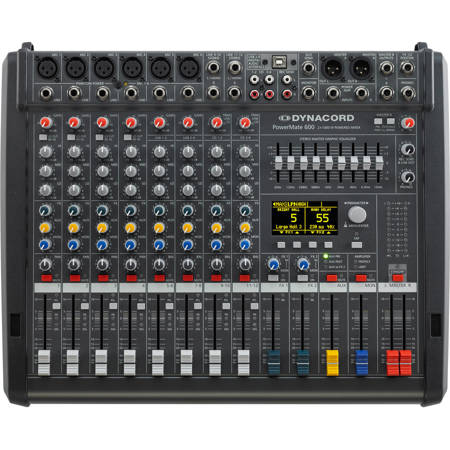

Dynacord DC-PM600-3-MIG Compact Power Mixer & 2x 1000W Power Amplifier
See all Dynacord items

Dynacord DC-PM600-3-MIG Compact Power Mixer with 4 Mic/Line, 4 Mic/Stereo Line Channels & 2x 1000W Power Amplifier

SKU: DYPM6003MIG
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dynacord DC-PM600-3-MIG Specifications

General

General

Jump to...

  • Channels

    4 + 4 (Mono + Stereo)

  • Microphone Inputs (XLR)

    6

  • Auxiliarys (MON, FX, AUX)

    1 Pre, 1 Post, 1 Pre/Post switchable

  • Max. Single Channel Output Power

    Dynamic-Headroom, IHF-A
    into 2.66 Ohm: 2 x 1600 W
    into 4 Ohm: 2 x 1250 W
    into 8 Ohm: 2 x 675 W

    Continuous, 1 kHz, THD = 1%
    into 2.66 Ohm: 2 x 1350 W
    into 4 Ohm: 2 x 1150 W
    into 8 Ohm: 2 x 650 W

  • Maximum Midband Output Power

    1 kHz, THD = 1%, Dual Channel
    into 2.66 Ohm: 2 x 1350 W
    into 4 Ohm: 2 x 1000 W
    into 8 Ohm: 2 x 600 W

  • Rated Output Power

    20 Hz to 20 kHz, THD < 0.5%, Single Channel
    into 4 Ohm: 2 x 900 W
    into 8 Ohm: 2 x 450 W

  • Maximum Output Voltage

    74 Vrms (power amplifier, 1 kHz, no load)

THD (at 1 kHz, MBW = 80 kHz)

Jump to...

  • MIC input to Master A L/R outputs

    < 0.005% (+16 dBu, typical)

  • Power Amp Inputs to Speaker L/R outputs

    < 0.075%

  • DIM 30

    < 0.05% (power amplifier, 3.15 kHz, 15 kHz)

  • IMD-SMPTE

    < 0.15% (power amplifier, 60 Hz, 7 kHz)

Frequency Response (-3 dB, ref. 1 kHz)

Jump to...

  • Any input to any Mixer output

    15 Hz to 70 kHz

  • Any input to Speaker L/R output

    20 Hz to 30 kHz (-3 dB, ref. 1 kHz)

Crosstalk (1 kHz)

Jump to...

  • Amplifier L/R

    < -85 dB

  • Channel to Channel

    < -80 dB

  • Mute- & Standby-Switch attenuation

    > 100 dB

  • Fader & FX/AUX/MON-Send attenuation

    > 85 dB

  • CMRR, MIC input, 1 kHz

    > 80 dB

Input Sensitivity (all controls in max.)

Jump to...

  • MIC

    -74 dBu (155 microV)

  • LINE

    Mono: -54 dBu (1.55 mV)
    Stereo: -34 dBu (15.5 mV)

  • CD (Stereo)

    -34 dBu (15.5 mV)

  • Power Amp Inputs

    +8 dBu (1.95 V)

Maximum Level (mixing desk)

Jump to...

  • MIC inputs

    +11 dBu

  • Line inputs (Mono & Stereo)

    +31 dBu

  • All other inputs

    +22 dBu

  • All other outputs

    +22 dBu

Input Impedances

Jump to...

  • MIC

    2 Kohms

  • CD In

    10 Kohms

  • All other inputs

    > 15 Kohms

Output Impedances

Jump to...

  • Phones

    47 Ohm

  • All other outputs

    150 Ohm / 75 Ohm (balanced/unbalanced)

  • Equivalent Input Noise

    -130 dBu (MIC input, A-weighted, 150 ohms)

Noise (Ch inputs to Master A L/R output)

Jump to...

  • Master fader down

    -100 dBu

  • Master fader 0 dB

    Channel fader down: -92 dBu
    Channel fader 0 dB, Channel gain unity: -82 dBu

  • Signal/Noise-Ratio, power amplifier

    105 dB (A-weighted, 4 Ohm)

  • Output Stage Topology

    Class D

Equalization

Jump to...

  • Shelving

    LO: +/-15 dB / 60 Hz
    HI: +/-15 dB / 12 kHz

  • MID Peaking

    +/-12 dB / 2.4 kHz

  • Master EQ 9-band

    +/-10 dB / Q = 1.5 to 2.5 (63, 125, 250, 500, 1k, 2k, 4k, 6.3k, 12kHz)

Filter

Jump to...

  • LO-CUT, mono inputs

    f = 80 Hz, 18 dB/oct., switchable

  • Speaker Processing

    LPN, switchable

Effects

Jump to...

  • Type

    2 x Stereo 24/48-bit multi effects processors

  • Effects presets

    100 Factory + 20 User, Tap-Delay

  • Remote control

    Footswitch, MIDI

  • Display

    128 x 64 pixels, OLED

Digital Audio Interface

Jump to...

  • Channels

    4 In / 4 Out

  • AD/DA Conversion

    24-bit

  • Sampling Rate

    44.1 / 48 / 88.2 / 96 kHz

  • PC Interface

    USB2.0, Female Type B

  • Peak Display

    6 dB before Clip

  • MIDI Interface

    5-pin DIN connector, In / Out

  • Output Power Control

    Adjustable longterm RMS Limiter (Speaker Protection)

Protection

Jump to...

  • Mixer Outputs, relay controlled

    AUX, MON, MASTER A L/R

  • Amplifier

    Audio Limiters, High Temperature, DC, HF, Short Circuit, Peak Current Limiters, Turn-on Delay, Back EMF

  • Switching Mode Power Supply

    Inrush Current Limiters, Mains Over/Undervoltage, Mains Over Current, High Temperature (microC controlled)

  • Cooling

    Continuous speed controlled Fans

  • Phantom Power, switchable

    48 V DC

  • Power Requirements

    100 V to 240 V AC, 50 Hz to 60 Hz (SMPS with auto range mains input)

  • Power Consumption

    450 W (at 1/8 maximum output power, 4 Ohm)

  • Safety Class

    I

  • Ambient Temperature Limits

    5 to +40 Degree C (40 to 105 Degree F)

Physical

Jump to...

  • Dimensions

    With lid: 17.2 x 6.3 x 14.2" (438.8 x 161.7 x 362.5mm)
    Rack-mount: 19 x 5.3 x 12.2" (483 x 135.8 x 310.3mm) (7 HU)

  • Weight

    Without lid: 19.8 lb (9kg)
    With lid: 20.9 lb (9.5kg)

About Dynacord DC-PM600-3-MIG

The PowerMate compact power mixers incorporate profound know-how, based on our research, development and inter-communication with our customers in the professional audio market, for decades.

It incorporates not less than six dedicated audio devices into one compact frame: mixing console, two effects units, graphic equalizer, USB audio interface and power amplifier. Each of them is on the highest quality level as you would expect from a stand-alone device. The PowerMate is a real all-rounder for almost all applications with maximum feature set at minimum size.

The mixing section starts with 6 lowest noise, discrete microphone preamps. 3 auxiliary busses, one of them switchable pre/post fader, allow high flexibility for monitoring. The two effects processors offer 100 factory presets, including the already legendary PowerMate-reverbs. Further, each preset can be edited and stored to 20 User memories.

The built in USB audio interface shares 4 playback and 4 recording channels simultaneously with a PC or Mac, following studio standard 24-bit / 96 kHz. An additional MIDI interface allows integration of instruments, such as keyboards. A license for Steinbergs Cubase software is part of the package.

The 9 band stereo graphic equalizer allows precise tone control for speakers and room matching.

The amplifier is extremely powerful with 2 x 1000 W / 4 Ohms (RMS). Due to modern switching mode power supply technology and a class-D output stage, it's very efficient and lightweight, too. An optional speaker protection allows limitation of long-term power without giving up dynamics.

Finally, the slim housing is protected by a rugged plastic lid, hold by strong snap in magnets.

Dynacord DC-PM600-3-MIG Features

  • Mixer with 8 input channels (4 Mic/Line + 2 Mic/Stereo-USB + 2 Stereo-Line)
  • Very powerful and reliable amplifier with 2 x 1.000 Watts / 4 Ohms
  • 2 High-Quality editable effects, 100 factory and 20 user presets
  • Professional 4x4 24-bit / 96 kHz USB interface with MIDI
  • Lightweight (9.5 kg) road-ready package with extra robust cover-lid

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Mixer with 8 input channels (4 Mic/Line + 2 Mic/Stereo-USB + 2 Stereo-Line)
  • Very powerful and reliable amplifier with 2 x 1.000 Watts / 4 Ohms
  • 2 High-Quality editable effects, 100 factory and 20 user presets
  • Professional 4x4 24-bit / 96 kHz USB interface with MIDI
  • Lightweight (9.5 kg) road-ready package with extra robust cover-lid

What's in the box:

  • PowerMate 600-3
  • Mains Cord (2m)
  • DVD with USB Driver/Documentation/Software
  • Quickstart Manual
  • Owner's Manual
  • Dynacord 3 Year Limited Warranty
