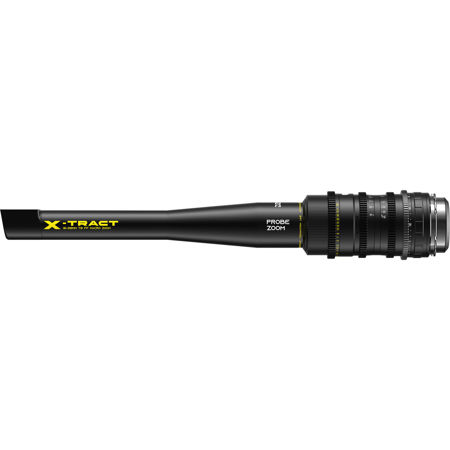

DZOFILM X-Tract 18-28mm T8 2.1x Macro Probe Lens with 90-Degree Tube, PL Mount

SKU: DZOX1828B MFR: DZO-X1828B
Earn VIP Reward Points

Key Features

  • Capture unique perspectives with this 18-28mm probe lens, offering a distinct visual style.
  • Achieve stunning close-ups with a minimum focus distance of just 6mm using this cinema lens.
  • Enjoy exceptional build quality with its robust aluminum alloy construction for lasting durability.
  • The T8 aperture on this DZOFILM lens allows for precise depth of field control in your shots.
  • Create captivating visuals with the 90-degree direct view, perfect for product and macro videography.
  • This PL mount lens is compatible with professional cinema cameras, ensuring seamless integration.
See More Product Details
FREE 2-Day Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$129.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DZOFILM X-Tract 18-28mm T8 Specifications

  • Material

    Aluminum Alloy

  • Focal Length

    18-28mm

  • Lens Type

    90 Degree Periscope

  • Mount

    PL

  • Aperture

    T8-T45

  • Image Circle

    Dia.: 43.2mm

  • Construction of Optics

    26 Elements in 19 Groups

  • Flange Distance

    52mm

  • Close Focus (from sensor plane)

    1.54' (0.47m)

  • Close Focus (from lens front)

    6mm

  • Zoom Ratio

    1.55x

  • Magnification factor (28mm)

    2.1X

  • Iris Control

    Manual (72 Degree )

  • Focus Control

    Manual (300 Degree )

  • Zoom Control

    Manual (100 Degree )

  • Front Dia.

    1.48 x 1.2" (37.7 x 30.58mm)

  • Length

    415mm16.57" (421mm)

  • Iris Blade

    10pcs

  • Gear Pitch

    0.8 Mod

  • Weight

    2.5 lbs (1.132kg)

  • UPC Code

    842463103542

Related Articles & Videos

NAB 2025 Announcements
DZOFilm X-tract 18-28mm - Groundbreaking New Category in Macro Filmmaking

DZOFilm X-tract 18-28mm - Groundbreaking New Category in Macro Filmmaking

Macro filmmaking just got a whole lot easier with the new DZOFILM X-tract 18-28mm full-frame macro lens, announced today. This lens maintains a fixed aperture across the focal range. Additionally, the Probe Zoom features an advanced optical design and coatings. The coating minimizes flaring and vign...
Read more

20 Accessories for DZOFILM X-Tract 18-28mm T8 2.1x Macro Probe Lens with 90-Degree Tube, PL Mount

  • All Accessories (20)
  • Follow Focus & Lens Support (3)
  • Lens Adapters & Converters (3)
  • Tripods & Monopods (3)
  • Cleaning Accessories (2)
  • Cap Leash (2)
  • Bags & Cases (7)
Models
Venus Laowa 15-35mm T12 Macro Probe Lens, PL Mount
$3,999.00

Temporarily On Backorder

4 Styles Available

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

Kit StyleBaseBaseBase
FormatFull FrameFull FrameFull Frame
Lens TypeMacroMacroMacro
Fixed Focal LengthNANANA
Lens MountPL MountPL MountPL Mount
Maximum ApertureT8.0T8.0T12
Zoom Focal Length18-28mm18-28mm15-35mm
Focus TypeManual FocusManual FocusManual Focus

About DZOFILM X-Tract 18-28mm T8

World’s First T8 90°Probe Zoom Lens – Redefining Macro Cinematography with Unprecedented Flexibility.

X-tract 18-28mm T8 90°Probe Zoom Lens is a groundbreaking innovation in macro cinematography establishing another industry first - the initial 90° probe zoom lens with a T8 aperture and 18-28mm zoom range, unlocking unprecedented creative flexibility for filmmakers to capture stunning close-up visuals from unique right-angle perspectives.

Premium Image Quality

The X-tract 90° lens features a fixed 90° optical path, bending light at a right angle to explore intricate details from unconventional viewpoints. Its 360° rotating ring enables precise horizontal adjustments, while the square front element with a PET silver-coated reflective layer maximizes light transmission, delivering consistent illumination for premium image quality.

DZOFILM X-tract 18-28mm T8 Lens features a fixed 90-degree optical path

T8 Aperture for Consistent Brightness Across all Focal Lengths

Designed for full-frame sensors and compatible with S35 formats, the lens provides an equivalent 22-35mm T8 focal range in Arri Alexa 35 Open Gate mode. Its constant T8 aperture ensures consistent brightness across all focal lengths.

DZOFILM X-tract 18-28mm T8 Lens constant T8 aperture ensures consistent brightness across all focal lengths

Maintain Focus During Zooming

The X-tract 90° lens introduces a new dimension to macro cinematography, bending the light path at a 90° angle to explore unique perspectives and create immersive visuals. Its parfocal design ensures focus remains sharp during zooming, enabling smooth transitions and classic techniques like the Hitchcock dolly zoom effect.

DZOFILM X-tract 18-28mm T8 Lens parfocal design ensures focus remains sharp during zooming

Precise and Smooth Focus Control

With a 300° focus throw, 2.1x magnification ratio, and 6mm minimum focus distance, the lens captures intricate details such as water droplets, insect wings, or miniature landscapes with stunning clarity and precision.

DZOFILM X-tract 18-28mm T8 Lens captures intricate details with stunning clarity and precision

Seamless Compatibility with Professional Gear

Weighing just 1.09-1.13kg and measuring 41.5-42.1cm in length, the X-tract 90° lens is designed for agility and stability. Its rear-heavy design ensures better balance when used with tripods, sliders, stabilizers, or robotic arms, minimizing shake and simplifying focus and zoom adjustments.

DZOFILM X-tract 18-28mm T8 Lens is designed for agility and stability

Built for Extreme Conditions

IP57 dustproof and waterproof rating guarantees reliable performance in extreme conditions. X-tract 90° lens is perfectly suitable for various shooting environments as it is waterproof up to 28 cm.

DZOFILM X-tract 18-28mm T8 Lens is perfectly suitable for various shooting environments

DZOFILM X-Tract 18-28mm T8 90 Features

  • Rotating Ring Design: Features a rotating rollrig design, adding versatility to shooting angles.
  • Excellent Breathing Feature: Incorporates a breathing function for specific creative effects.
  • 300 Degree Focus Rotation: Boasts a 300 - degree focusing range, enabling precise focusing.
  • Close Focus Capability: Has a short minimum focusing distance for close – up shooting.
  • High Magnification: Offers a certain magnification ratio for detailed imaging.
  • All - Metal Construction: Made of all - metal materials, ensuring durability.
  • Rear - centered Design: Features a rear - centered design for better balance during use.
  • Large Front Aperture: With a 29.6mm front aperture, allowing more light to enter.
  • Waterproof: Waterproof up to 28cm, suitable for various shooting environments.

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture unique perspectives with this 18-28mm probe lens, offering a distinct visual style.
  • Achieve stunning close-ups with a minimum focus distance of just 6mm using this cinema lens.
  • Enjoy exceptional build quality with its robust aluminum alloy construction for lasting durability.
  • The T8 aperture on this DZOFILM lens allows for precise depth of field control in your shots.
  • Create captivating visuals with the 90-degree direct view, perfect for product and macro videography.
  • This PL mount lens is compatible with professional cinema cameras, ensuring seamless integration.

What's in the box:

  • DZOFILM X-Tract 18-28mm T8 2.1x Macro Probe Lens (PL Mount)
  • 90 Degree Tube
  • Front Cap
  • Rear Cap
  • Y-Bracket Support
  • Bolt Driver
  • Shim Set
  • Hard Case with Foam Inlay
  • 3x Support Ring
  • DZOFILM 1 Year Limited Warranty
