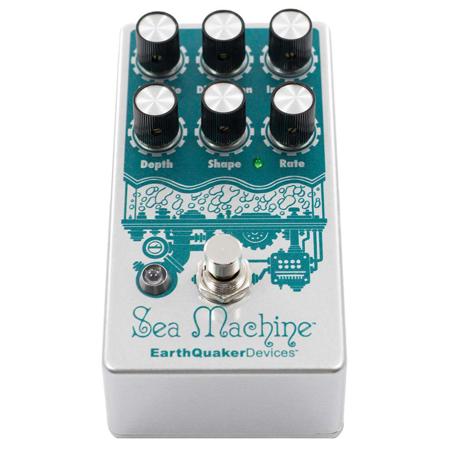

Earthquaker Devices Sea Machine V3 Super Chorus Pedal

The Sea Machine is a chorus pedal with as many modulation possibilities as there are fish in the ocean. That's a lot of fish. And a lot of modulation. From subtle, shimmery chorus sounds, to wobbly, seasick, warbly pitch-bent detuning that rocks the boat, the Sea Machine is the audio bait that'll help you reel in the big one.

The Sea Machine ain't no one-trick seahorse. With a mix of standard and unique controls, everything from subtle warble, classic Leslie, seasick pitch bends, strangled alien sounds, stunted arpeggiations and many more far out sounds are available. Or you could just use it as a chorus. That works, too. Oh, and if you're a bass player who fancies themselves a fan of the classic 80s post-punk bass sound, the Sea Machine is pretty much just like (tone) heaven.

Controls

Animate
How far the pitch shifted signal swings, lower levels equal a tighter and more focused shift a la traditional chorus. As you increase the control a more wild and animated pitch shift begins to emerge.

Dimension
Adds a slight slap-back at low levels, reverb-like ambiance at mid levels and an echo-resonance that will lead to self-oscillation at max.

Intensity
Adjusts how much modulated signal is blended in with the dry signal. Unity for this control is right around noon, everything above that is boosting the modulated signal.

Depth
Adjusts how strongly the LFO modulates the delay time.

Shape
Goes from triangle wave to square wave as you turn clockwise.

Rate
This sets the speed of the LFO. The miniature LED will blink to the tempo, even in bypass mode.

Suggested Settings
• Haunting Slow Modulations
• Sequential Roots & Fourths

Flexi-Switch Technology
This device features Flexi-Switch Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

• For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass
• For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed

Since the switching is relay based, it requires power to pass signal.

Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise.

Note: Do not run at higher voltages!
