Eartec EVADE EVX13D-CM Dual Channel Light Industrial Full Duplex Wireless Intercom System with 13x Dual-Ear Headsets

SKU: EAEVX13DCM MFR: EVX13D-CM
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this full duplex wireless intercom system.
  • Communicate hands-free across a 1/2 mile range with 13 dual-ear headsets.
  • Ensure secure & reliable communication using advanced time division duplexing.
  • Enjoy up to 8 hours of continuous operation; perfect for long workdays.
  • Durable intercom system designed for light industrial environments, built to last.
  • Easy to use; get your team connected quickly with this wireless intercom system.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Eartec EVXD-CM Specifications

  • Frequency Range

    2407-2475MHz

  • Data Rate

    1Mbps

  • Bandwidth

    150KHz

  • Channel Spacing

    1MHz

  • Modulation Type

    GFSK

  • Gain of Antenna

    0dB

  • Duplexing

    Time Division Duplex (TDD)

  • Speech Encoding

    ADPCM/16kbit/s

  • RF Accessing

    Time Division Multiple Access (TDMA)

  • Power Supply

    Rechargeable Li-polymer Battery @ 3.7v/1000mAH

  • RF Output Power

    80mw

  • Operating Temperature

    32 - +122 Degree F (0 - +50 Degree C)

  • Operating Relative Humidity Range

    30% - 90%

  • Operation Current

    110mA

  • Operation Time

    8h

  • Range

    1/2 mile (open field)

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    14

About Eartec EVXD-CM

The EVADE Double is the ultimate full duplex wireless headset in comfort and performance. Totally self-contained they feature Light Industrial design that provides a simultaneous talk, open line of team communication for up to 32 crew. EVADE Double are a dream to wear covering both ears with extra wide deluxe padding and do not require a cable, belt pack transceiver or even a base station. This smart engineering makes the EVADE series easy to operate, reliable, and affordable.

Operation of the EVADE Double is controlled by a digital operating system known as Frequency Hopping. From the instant they are powered up the compact full duplex radio installed in the earcups continuously monitors the environment and automatically switches to channels that are clear to avoid interference. Frequency Hopping is digital wireless technology that provides crystal clear communication by circumventing or "evading" other wireless systems.

The Conference Module (included) provides a staff conference with a single touch of a button.

The Conference Module is a compact wireless repeater that expands the capacity of any EVADE system from 9 to 16 users. This lightweight digital transceiver can either belt worn or placed centrally on location and features dual channels allowing two separate crews to talk privately. Pressing the conference button on the Module face connects the entire team, and tapping the button again re-separates the groups. Two Conference Modules can also be interlinked doubling system capacity to 32 users all connected in full duplex mode.

Field programmable, smaller set-ups can and be easily expanded to meet your changing needs without factory programming or re-tuning.


- 9-Port Multi-Charger with US Plug Adapter -
Each new EVADE series intercom includes a multi-charger with AC adapter that charges all system batteries. Batteries Are Charged In Nine Individual Bays, LED Indicates Battery Readiness, Charge Time Appx. 3 Hours.


- Soft Padded Case -
Eartec's Softside Case will keep your wireless system stored safely. Constructed of waterproof nylon this headset bag/case includes internal compartments so the headsets stay organized. There is also a pocket with Self-Securing Closure enclosure for the charger and any spare batteries. The molded hard plastic handle makes transport easy and convenient for "On Location" work.

Eartec EVXD-CM Features

  • Excellent performance - Range up to 1/2 mile
  • Radio installed inside earcup, no wires or beltpacks
  • Li-Poly Batteries - Provide continuous 8 hr operation and are field replaceable
  • Auto Mute Boom - Mute when in UP position
  • Volume Control - Simple up / down push button adjustment
  • Sealed for use outdoors in inclement conditions
  • Light Industrial Design - Wear comfortably for an 8 hour work shift
  • Field Programmable - Start small and add to your system as needed

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience crystal-clear audio with this full duplex wireless intercom system.
  • Communicate hands-free across a 1/2 mile range with 13 dual-ear headsets.
  • Ensure secure & reliable communication using advanced time division duplexing.
  • Enjoy up to 8 hours of continuous operation; perfect for long workdays.
  • Durable intercom system designed for light industrial environments, built to last.
  • Easy to use; get your team connected quickly with this wireless intercom system.

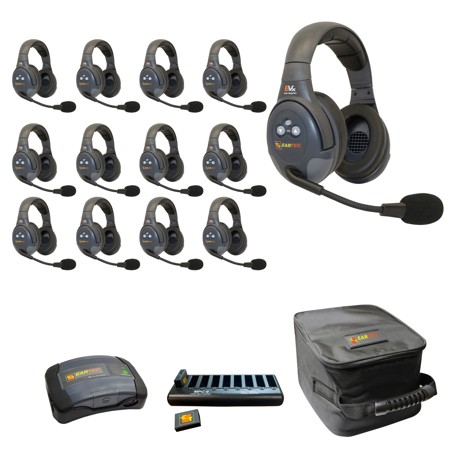

What's in the box:

  • Eartec EVADE C-MOD Mini 2-Channel Base Station
  • EVADE Dual-Ear Main Headset
  • 12x EVADE Dual-Ear Remote Headsets
  • 2x 9-Port Multi-Charger with US Plug Adapter
  • Lithium-Polymer Battery for EVADE C-MOD Mini Base Station
  • 13x Lithium-Polymer Batteries
  • 2x Extra Large Soft Padded Cases
  • Eartec 1 Year Limited Warranty
