Eartec HUB Global Connect 2 Person Full Duplex Long Range Wireless Intercom System with 2x UltraPAK Belt Packs and 2x Cyber Plug-in Headsets

EARTEC HUB Intercoms with Global Connect and lightweight Headsets provide discreet full duplex communication over IP enhancing the capability of videoconferencing and video telephony. When added to a computer or smartphone these Global Connect systems allow up to 8 mobile wireless users on one side of a web chat to communicate hands free through computer or cell phone to persons on the other side of the call anywhere in the world over the internet.

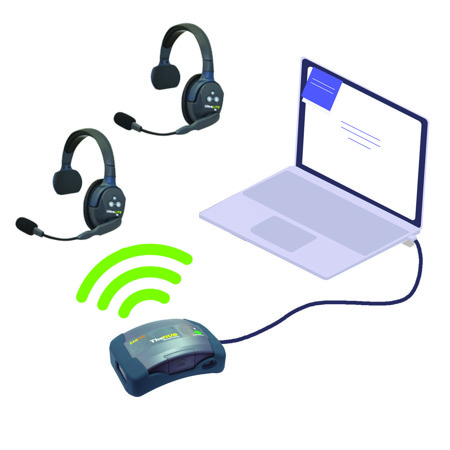

All Global Connect systems begin with a custom wireless intercom that includes a compact repeater called The HUB along with any combination of up to 8 UltraPAK transceivers with plug-in Headsets. The HUB is a mini base station that provides larger groups hands free wireless communication. UltraPAK are compact full duplex radios that are linked via the HUB right "Out of The Box". To operate simply turn your HUB and UltraPAK "ON" and talk. Featherweight Cyber options provide discreet operation and outstanding comfort. The complete HUB w/ UltraPAK intercom interfaces with the internet via the Global Connect kit that includes an interconnect cable assembly for smartphone as well as USB with soundcard for laptop / desktop. Once a videoconference or webchat is established via Zoom, Skype, Microsoft Teams etc. simply plug-in your HUB system and everyone that is communicating within a 400-yard range is automatically linked to your party or parties on the other side of the internet conference / chat. (iPhone requires dongle, not included)

Since all Eartec transceivers are field programmable standard 2-person systems are easily expandable simply by adding additional UltraPAK with Cyber Headsets. Operating in the non-licensed DECT band (Digital Enhanced Cordless Technology) the HUB Global Connect will not interfere with other RF equipment including WIFI.


- Cyber Plug-In Headsets -

The Cyber is another popular headset in the Eartec product line. These specialty headsets are designed to be worn comfortably for an entire work shift. Weighing only 1/2 of an ounce, the Cyber features a slender tension back-band that provides a luxurious unisex fit. These ultra-light models are widely used in the food service, restaurant, and health care industries, or wherever discreet voice communications is required.


- UltraPAK Transceivers -

UltraPAK are compact, powerful full duplex transceivers designed specifically for crews that need hands free, voice communication and also require discreet, lightweight Headsets. This traditional beltpack / Headsets configuration affords the flexibility of selecting between midweight and lightweight Headsets and provides outstanding full duplex performance within a 300 yard range.

UltraPAK are the smallest full duplex radios on the market weighing only 2.5 oz. They feature an ergonomic cabinet and a military clothing / belt clip. The silicone sealed microphone mute button includes an LED that illuminates red when engaged indicating that the microphone gain is cut off. A volume control assembly includes 5 "Up or Down" settings, and the Headsets jack is a simple, robust, 2 pin style.

Another terrific feature of UltraPAK systems is that the Lithium Polymer batteries (included) charge externally and are field replaceable. This allows you to keep spare charged batteries on hand extending the run time of your system indefinitely.

Up to eight UltraPAK transceivers can be connected in full duplex through The HUB, a digital repeater that includes two channels of communication. Pressing the CH combine button links all UltraPAK in the system.

An added benefit is that HUB transceivers can be utilized as an additional beltpack expanding the capacity to a crew of nine all communicating in full duplex. When two HUBs are interlinked the talking pattern can be expanded even further up to 16 users.

The featherweight Cyber the most popular Headsets models for the UltraPAK because they feature a discreet back-band design that provide a comfortable unisex fit.

If you need to add full duplex wireless to an existing, permanently installed wired system in an auditorium, church, or production studio then the HUB Interface with UltraPAK is an affordable, sound solution. The HUB Interface is a software controlled module creates a seamless audio link allowing up to 8 roaming wireless users to communicate with the wired system in full duplex just as if connected by a floor cable. Check out the HUB interface page for a detailed explanation.

Since UltraPAK are field programmable you can always modify your system adding components at any time expanding the talking pattern as your needs grow. Select from the standard HUB Full Duplex Wireless Beltpack Intercom packages or contact EARTEC for help designing a customized full duplex system for your crew.

- HUB Mini Base -

The EARTEC HUB Full Duplex Wireless Intercom System provides full duplex wireless communication to larger production staffs that need to stay in constant voice contact while working with their hands. This versatile Mini Base weighs only 9 oz. and can either be placed strategically "on location" or belt worn. When clipped comfortably to the user's waist this digital repeater moves seamlessly with your group allowing crews to talk simultaneously within a 400-yard range.

Two operating channels are built-into the HUB circuitry so that separate groups of four can talk privately, and pressing the CH button creates an eight-person conference. A dual pin jack allows addition of a wired Headsets extending the talk net to nine users.

The Modular capabilities of the HUB Mini Base provide sound solutions to complicated communication problems. When a larger talking pattern is required two separate HUB intercoms with eight users can be linked via the interface cable assembly doubling capacity to 16 full duplex transceivers. Extension cables to this interconnect of 50, 100, and 200 feet lengths are also available which allows you to separate the HUBs, stretching the range and supplying wireless signal to areas that may be difficult to reach. For example, inside heavily constructed buildings, steel enclosures, large factory / warehouse floors, or mobile broadcast production trucks etc.

If you need to add full duplex wireless Headsets to an existing, permanently installed wired intercom the HUB Interface makes this a snap. The HUB Global Connect series will link wireless crews anywhere in the world through internet webchat (via mobile phone connection or by laptop / desktop). To learn more about these terrific capabilities visit the HUB Wired Interface and Global Connect pages.

Another important feature of the HUB is the dual power option: rechargeable Lithium Polymer battery and AC wall plug (both included). The HUB battery can be charged externally, is field replaceable, and also charges when installed in the HUB during operation under wall current.

The Eartec HUB is offered in two series, with UltraLite self-contained wireless Headsets or UltraPAK belt pack style transceivers and plug-in lightweight Headsets for those users that need discreet operation. Select the series from the two options listed below. Your brand new, complete duplex intercom will be shipped in a soft side case ready to go right out of the box.
