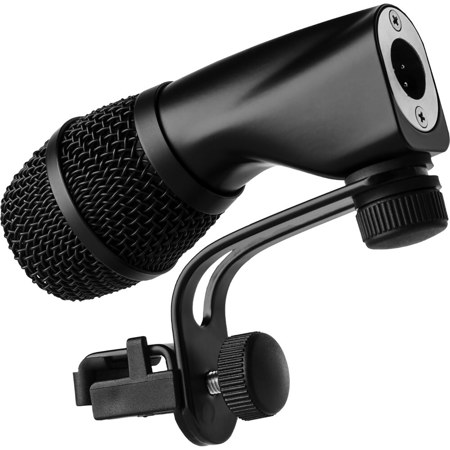

Earthworks DM17 Cardioid Condenser Instrument Microphone for Tom and Snare Drum

SKU: EWDM17 MFR: DM17
Earn VIP Reward Points

Key Features

  • Capture every beat with the Earthworks DM17, a premium condenser microphone for drums.
  • Experience crystal-clear audio from 20 Hz to 17 kHz, perfect for tom and snare drums.
  • Its cardioid polar pattern ensures focused sound capture, minimizing unwanted stage bleed.
  • Handle high-impact drumming with an impressive 148 dB SPL, preventing distortion.
  • Enjoy professional-grade performance with this durable cast metal instrument microphone.
  • Elevate your drum recordings and live sound with Earthworks' latest microphone technology.
See More Product Details
Temporarily On Backorder?Expected Availability: 05/2026
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Earthworks DM17 Specifications

Capture Type

Capture Type

Jump to...
  • Microphone Type

    Pre-Polarized Condenser

  • Polar Pattern

    Cardioid

  • Diaphragm Size

    10mm

Audio Performance

Jump to...
  • Frequency Response

    20 Hz - 17 kHz

  • 1 kHz Sensitivity

    -51 dBV/Pa (2.8 mV/Pa)

  • A-Weighted Self-Noise

    28 dBA

  • Maximum SPL (3% THD)

    148 dB SPL

  • Minimum Load Impedance

    1 k Ohm

Power Requirements

Jump to...
  • Power Requirements

    48V Phantom Power (P48), 6 mA

Connectivity

Jump to...
  • Analog Output Connector

    1x XLR 3-Pin Male

Physical

Jump to...
  • Color

    Black

  • Material

    Cast metal body, painted steel windscreen, stainless steel tip

  • Dimensions (L x W)

    6.9 x 2.25" (175.26 x 57.15mm)

  • Weight

    6.35 oz (180g)

  • UPC Code

    827517735856

About Earthworks DM17

Instant Game-Changing Drum Sound
Found with the biggest names in music and on the biggest stages in the world -Earthworks Drum mics are literally game-changing. DM17 is the easiest, most accessible path to our signature premium sound on snares and toms.

The Best of Both Worlds
DM17's tight cardioid pattern is engineered to provide the premium on-axis detail you'd expect from the best condensers, with superior off-axis rejection that rivals the best dynamic mics.

RM3 Drum Rim Mount
RM3 is a low-profile, tour-quality solution for securely mounting DM17 to the rim of snare drums and toms, eliminating the need for mic stands, and enabling easy setup and intuitive mic placement.

Industry-leading compatibility with a wide variety of metal drum hoop types and suspension mounts.

Earthworks DM17 Features

  • Instant game-changing drum sound on snares and toms
  • Tight cardioid pattern with superior off-axis rejection
  • Low-profile RM3 mount for easy drum rim placement
  • Compatible with various metal hoops and suspension mounts

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture every beat with the Earthworks DM17, a premium condenser microphone for drums.
  • Experience crystal-clear audio from 20 Hz to 17 kHz, perfect for tom and snare drums.
  • Its cardioid polar pattern ensures focused sound capture, minimizing unwanted stage bleed.
  • Handle high-impact drumming with an impressive 148 dB SPL, preventing distortion.
  • Enjoy professional-grade performance with this durable cast metal instrument microphone.
  • Elevate your drum recordings and live sound with Earthworks' latest microphone technology.

What's in the box:

  • Earthworks DM17 Cardioid Condenser Instrument Microphone
  • RM3 Rim Mount
  • Carrying Bag
  • Earthworks 2 Year Limited Warranty
