Eartec UPMX4GD8 Specifications

HUB Base Master

HUB Base Master

Jump to...
  • Standard

    DECT 6.0 (Digital Enhanced Cordless Telecommunications)

  • Frequency

    1920-1930MHz (USA)

  • Euro Frequency

    1880-1900MHz (EURO)

  • Connector

    2.5mm, 3.5mm Plug-in

  • Channel Bandwidth

    1.728GHz

  • Modulation Type

    GFSK

  • Transmission Speed

    1.152 Mbps (Baud Rate)

  • Duplexing

    Time Division Duplex (TDD)

  • Speech Encoding

    ADPCM / 32bit/s

  • RF Accessing

    Time Division Multiple Access (TDMA)

  • Range

    400m in open space

  • Headset Power Supply

    Rechargeable Lithium (3.7V, 800mAh, 3.0Wh)

  • Charger Power Supply

    AC/Adapter: Input: 110-40Vac
    Output: 5.0V - 1 (1000mA)

  • Charge Time

    3 hours

  • Operation Time

    4 hours

  • Storage Temperature

    -10 to 60 deg. C (14 to 140 deg. F)

Max 4G Headset

Jump to...
  • Type

    Over Ear, Double-Eared

  • Microphone Type

    Electret Condenser

  • Impedance

    32 Ohms

  • Connection

    1x 3.5mm
    1x 2.5mm

  • Cable Length

    3' (0.91m)

Charging Base

Jump to...
  • For Use with

    8x UltraLITE, UltraPAK and HUB batteries

  • Charge Time

    Approximately three hours

  • Input Power

    100 to 240 VAC

General

Jump to...
  • Dimensions (WxDxH)

    HUB Base Master: 5.5 x 1.5 x 3.75" (13.97 x 3.81 x 9.53cm)

  • Weight

    HUB Base Master: 4 oz (113.40g)
    Max 4G Headset : 6.0 oz (170.10g)

About Eartec UPMX4GD8

The Eartec UPMX4GD8 is a professional full duplex intercom for 8 people that need to communicate and work with their hands. This compact system features the HUB Mini base to be placed on-location or belt-worn. Also included are 8 Remote UltraPAK beltpacks with Max 4G Midweight headsets. UltraPAK utilize Digital Enhanced Cordless Technology (DECT) to provide professional, simultaneous talk wireless communication within a quarter mile range. No FCC License Required.

- UltraPAK Transceivers -
The UltraPAK is a ergonomic belt pack radio that can be integrated into Eartecs UltraLITE full duplex wireless series. These compact digital transceivers have been designed specifically for those users that need hands free, voice communication and also require a lightweight, headset accessory.

UltraPAK transceivers weigh only 2.5 oz and feature an ergonomic design so they fit comfortably when belt worn. They include volume control adjustment and a mic mute button with LED indicator that illuminates when gain is set to standby. The field replaceable Lithium battery charges externally and operates for up to 6 hours in full duplex mode.

- Max4G Double Headset -
The Max4G Headset is a tremendous accessory to your wireless system. Available in single or double ear models, these midweight headsets feature a fully adjustable headband and deluxe foam padding to ensure a firm, comfortable fit. Boom arm rotates 270 degrees and when set in the UP position the Automute Boom Technology automatically mutes the microphone gain.

- Field Replaceable Lithium Battery -
Each UltraLITE wireless headset comes complete with a rechargeable Lithium battery that is installed in a special compartment of the headset plastics. The batteries are lightweight and only about the size of a book of matches. They charge in approximately 3 hours and operate the headset for 6 hours. Since they are removable and are charged externally in the Multi-Port charger, they can be changed out in seconds.

- Multi-Port Charger -
All complete UltraLITE wireless systems include a Multi-Port charger (either 2 or 8 port) that charge the headset batteries in individual bays. When each battery reaches full charge the corresponding LED turns from red to green indicating that the battery is ready to go. This feature allows users to have extra batteries on hand in the charger whenever necessary.

- Softside Case -
Eartec's Softside Case is included to keep your wireless system stored safely. Constructed of waterproof nylon this headset bag/case includes internal compartments so the headsets stay organized. There is also a pocket with hook and loop enclosure for the charger and any spare batteries. The molded hard plastic handle makes transport easy and convenient for "On Location" work.

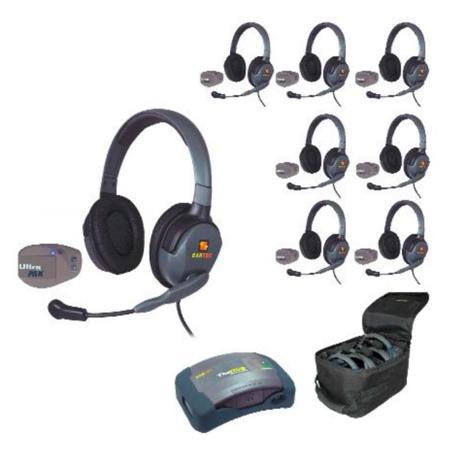

What's in the box:

  • Eartec HUB Mini Base Master
  • 8x UltraPAK Remote Beltpack Transceiver
  • 8x Max4G Midweight Double Headset
  • 9x Rechargeable Lithium Batteries
  • 8-Bay Multi-Port Charger
  • Softside Case (Medium)
  • Eartec 1 Year Warranty
