Eartec UPSST3 Specifications

HUB Base Master

HUB Base Master

Jump to...
  • Standard

    DECT 6.0 (Digital Enhanced Cordless Telecommunications)

  • Frequency

    1920-1930MHz (USA)

  • Euro Frequency

    1880-1900MHz (EURO)

  • Connector

    2.5mm, 3.5mm Plug-in

  • Channel Bandwidth

    1.728GHz

  • Modulation Type

    GFSK

  • Transmission Speed

    1.152 Mbps (Baud Rate)

  • Duplexing

    Time Division Duplex (TDD)

  • Speech Encoding

    ADPCM / 32bit/s

  • RF Accessing

    Time Division Multiple Access (TDMA)

  • Range

    400m in open space

  • Headset Power Supply

    Rechargeable Lithium (3.7V, 800mAh, 3.0Wh)

  • Charger Power Supply

    AC/Adapter: Input: 110-40Vac
    Output: 5.0V - 1 (1000mA)

  • Charge Time

    3 hours

  • Operation Time

    4 hours

  • Storage Temperature

    -10 to 60 deg. C (14 to 140 deg. F)

SST Headset

Jump to...
  • Compatibility

    HUB Mini Base and UltraLITE headsets

  • Type

    Over-ear

  • Microphone

    Electret condenser

  • Frequency Response

    20Hz to 20kHz

  • Impedance

    16 Ohms

  • Sensitivity

    105 +/- 5 dB

  • Speaker

    Diameter: 1.2" (3.05cm)
    Type: Mylar

  • Connector

    2.5mm, 3.5mm two-pin molded plug

  • Input

    20 mW

  • Cable Length

    3' (0.91m)

Charging Base

Jump to...
  • For Use with

    8x UltraLITE, UltraPAK and HUB batteries

  • Charge Time

    Approximately three hours

  • Input Power

    100 to 240 VAC

General

Jump to...
  • Dimensions (WxDxH)

    HUB Base Master: 5.5 x 1.5 x 3.75" (13.97 x 3.81 x 9.53cm)

  • Weight

    HUB Base Master: 4 oz (113.40g)
    SST Headset: 5.0 oz (141.75g)

About Eartec UPSST3

It's essential for on-the-go professionals to maintain clear and uninterrupted communication, and the Eartec UPSST3 3-Person HUB Intercom System is the perfect solution for such a need. This robust and high-quality system is designed for teams of three, enabling seamless, hands-free dialogue with the convenience of full duplex technology. The system's core, the HUB Mini base, offers versatile placement options, allowing it to be centrally located on-site or comfortably belt-worn for mobility.

The package includes three UltraPAK remote beltpack transceivers, each featuring an innovative, ergonomic design that weighs a mere 2.5 oz, ensuring user comfort throughout extended use. These beltpacks are equipped with Digital Enhanced Cordless Technology (DECT), which facilitates professional-grade, simultaneous talk wireless communication up to a quarter-mile range, all without the need for an FCC License.

Each UltraPAK transceiver boasts user-friendly controls, including volume adjustment and a mic mute button with an LED indicator that signals when the microphone is on standby. The system's portability is further enhanced by the inclusion of three SST headsets, known for their discreet and lightweight "Secret Service Type" design. These headsets feature a flexible, clear audio tube and an earbud, providing high-quality audio while maintaining a low profile, making them ideal for a variety of professional environments.

The system's power is supplied by field-replaceable Lithium batteries, which are compact, lightweight, and capable of operating up to 6 hours in full duplex mode on a single charge. These batteries can be swiftly exchanged, thanks to their external charging capability in the included 8-bay charger, ensuring your team is always ready for action. The charger's intelligent design includes individual charging bays with LED indicators that transition from red to green when the batteries are fully charged.

To keep your intercom system organized and protected during storage or transport, the Eartec UPSST3 comes with a durable, waterproof nylon softside case. This case features internal compartments to neatly store each component, as well as a dedicated pocket with a hook and loop enclosure for the charger and spare batteries. The case is completed with a molded hard plastic handle, making it convenient for professionals to carry their communication system to various "On Location" assignments.

In summary, the Eartec UPSST3 3-Person HUB Intercom System is a portable, durable, and user-friendly solution for teams requiring reliable communication in dynamic environments. Its comprehensive set of accessories and innovative design make it a superior choice for professionals in fields such as sports coaching, event production, and any situation where coordination and collaboration are key.

Eartec UPSST3 Features

  • Full duplex 3-person intercom system for seamless, hands-free communication
  • UltraPAK beltpack transceivers with DECT for wireless connectivity within a quarter-mile range
  • Lightweight SST headsets with clear audio tubes for discreet, high-quality sound
  • User-friendly controls with volume adjustment and mic mute button with LED indicator
  • Rechargeable Lithium batteries with 6-hour life and convenient 8-bay multi-port charger
  • Durable, waterproof nylon softside case with compartments for organized transport

Key Features

  • Full duplex 3-person intercom system for seamless, hands-free communication
  • UltraPAK beltpack transceivers with DECT for wireless connectivity within a quarter-mile range
  • Lightweight SST headsets with clear audio tubes for discreet, high-quality sound
  • User-friendly controls with volume adjustment and mic mute button with LED indicator
  • Rechargeable Lithium batteries with 6-hour life and convenient 8-bay multi-port charger
  • Durable, waterproof nylon softside case with compartments for organized transport

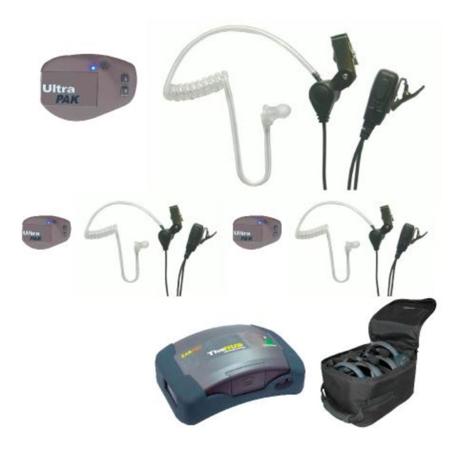

What's in the box:

  • Eartec HUB Mini Base Master
  • 3x UltraPAK Remote Beltpack Transceiver
  • 3x SST Mini Headset
  • 4x Rechargeable Lithium Batteries
  • 8-Bay Multi-Port Charger
  • Softside Case (Medium)
  • Eartec 1 Year Warranty
