Edimax EW-7722PND N600 Wireless Dual-Band PCI Express Adapter
See all Edimax items

Edimax EW-7722PND N600 Wireless Dual-Band PCI Express Adapter

SKU: EDMEW7722PND

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Edimax EW-7722PND Specifications

  • Interfaces

    1 x PCI Express interface
    1 x Link LED
    1 x Tx/Rx LED
    1 x WPS button
    2 x RP-SMA connector
    2 x detachable 3dBi
    dual-band antenna

  • Output Power

    2.4GHz
    11b: 17dBm+/-1.5
    11g: 14dBm+/-1.5
    11n: 13dBm+/-1.5 (20/40MHz)
    5GHz
    11a: 13dBm+/-1.5
    11n: 13dBm+/-1.5 (20/40MHz)

  • Data Rates

    11a: 6/9/12/24/ 36/48/54Mbps
    11b: 1/2/5.5/11Mbps
    11g: 6/9/12/24/ 36/48/54Mbps
    11n (20MHz): MCS0-15 up to 144Mbps)
    11n (40MHz): MCS0-15 (up to 300Mbps)

  • Frequency Band

    2.4000 to 2.4835GHz (Industrial Scientific Medical Band)
    5.150 to 5.825Ghz (subject to local regulations)

  • Standards

    IEEE 802.11a
    IEEE 802.11b
    IEEE 802.11g
    IEEE 802.11n

  • Temperature

    Operating: 32 - 103deg.F (0-40deg.C)
    Storage: -4 - 149deg.F (-20 - 65deg.C)

  • Wireless Security

    64/128-bit WEP, WPA, WPA2
    WPS configuration

  • Installation

    Multi-language EZmax Setup Wizard

  • Humidity

    Operating: 10 - 90% (non-condensing)
    Storage: max. 95% (non-condensing)

  • System Requirements

    Windows XP/Vista/7/8

  • Certifications

    FCC, CE

  • Dimensions

    22 x 121 x 88 mm / 0.86 x 4.76 x 3.46" (without antenna)

  • UPC Code

    649659022904

About Edimax EW-7722PND

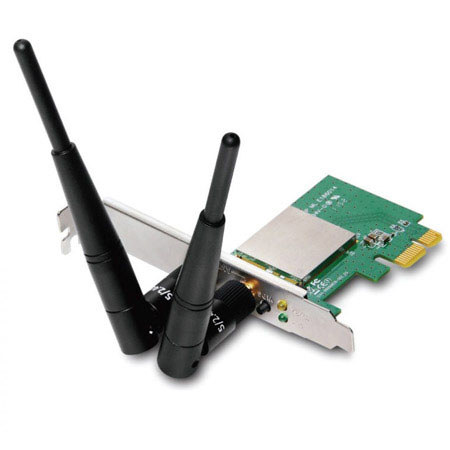

The Edimax EW-7722PnD N600 Wireless Dual-Band PCI Express Adapter is specifically designed to add high-speed, dual-band (2.4GHz/5GHz) wireless connectivity to your desktop computer. Designed with IEEE 802.11a/b/g/n standards, 2T2R MIMO technology and two detachable 3dBi dual-band antennas, this wireless PCI Express adapter allows for fast and stable wireless networking with data rates up to 300Mbps on the 2.4GHz or 5GHz band. It can be easily set up with the bundled EZmax multi-language setup wizard and comes with a low-profile bracket for installation on small computers.

Edimax EW-7722PND Features

  • With 2T2R MIMO technology, this Edimax dual-band wireless adapter is able to establish super fast Wi-Fi connections with either 2.4GHz or 5GHz wireless devices
  • EW-7722PND adapter is specifically designed to utilize the full bandwidth capacity of the PCI Express bus, thus eliminating collisions and latencies that exist with current 32-bit and 64-bit PCI bus architectures
  • The EW-7722PnD comes with two detachable 3dBi dual-band antennas, which enable it to achieve better signal quality compared to common wireless adapters. The antennas' detachable design also gives users the flexibility of using the antennas with extension cables for optimal antenna placement
