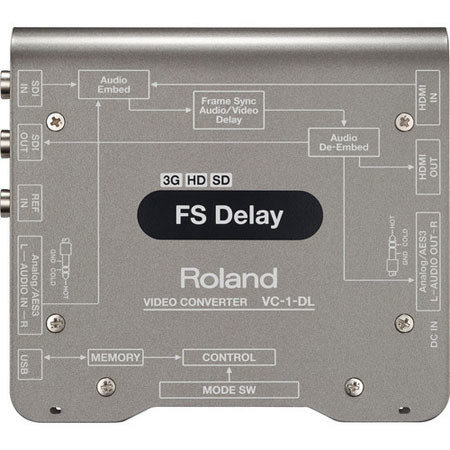

Roland VC-1-DL Bi-directional SDI/HDMI Converter with Delay and Frame Sync
See all Roland items

Roland VC-1-DL Bi-directional SDI/HDMI Converter with Delay and Frame Sync

SKU: EDVC1DL
(2)

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

2018-02-16T11:35:07

Rated 5 out of 5

Needed Video Delay and an Audio Embedder

This device comes in very handy. We purchased one for our control room to use as a video delay, and are now using it as a two channel audio embedder. Bought a second because we liked the flexibility of it. We have used it as a delay, an embedder, an SDI to HDMI converter and vice versa. We keep it in a kit we carry with us when setting up away from home.

Andrew T.

2016-09-30T11:22:54

Rated 5 out of 5

Great product to save our delay issues

Great product to save our delay issues in out edit bay

Kevin B.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Roland VC-1-DL Specifications

  • Processing

    Video delay ( 0 to 4.5 frames ) Audio delay ( 0 to 4.5 frames ) Audio embedding Audio de-embedding

  • Input: SDI Connector

    BNC type x 1

  • Input: HDMI Connector

    Type A (19 pins) x 1

  • Input: Analog Audio Connector

    1/4" TRS phone type ( balanced ) x 1 pair (L/R)

  • Input: Digital Audio Connector

    1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector )

  • Input: Reference Connector

    BNC type x 1

  • Input: Reference Signal Format

    Black Burst, Bi-level, Tri-level

  • Input: Reference Impedance

    75 ohms

  • Output: SDI Connector

    BNC type x 1

  • Output: HDMI Connector

    Type A (19 pins ) x 1

  • Output: Analog Audio Connector

    1/4" TRS phone type ( balanced ) x 1 pair ( L/R)

  • Output: Digital Audio Connector

    1/4" TRS phone type (balanced ) x 1 (Combined use with Analog Audio R ch Connector)

  • SDI Input Signal Standards

    SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C

  • SDI Input Video Format

    1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M ), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )

  • Audio Format

    Linear PCM, 24 bits, 48 kHz, 16 ch 1 (Conforms to SMPTE 299M, SMPTE 272M-C)

  • HDMI Input Video Format

    1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)

  • HDMI Input Audio Format

    Linear PCM, 24 bit, 48 kHz, 8 ch

  • SDI Output Signal Standards

    SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C

  • SDI Output Video Format

    1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )

  • SDI Output Audio Format

    Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)

  • HDMI Output Video Format

    1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-D)

  • HDMI Output Audio Format

    Linear PCM, 24 bit, 48 kHz, 8 ch

  • Analog Audio Input Level

    +4dBu

  • Analog Audio Maximum Input Level

    +24dBu

  • Analog Audio Input Impedance

    110 ohms

  • Analog Audio Output Level

    +4dBu

  • Analog Audio Output Impedance

    600 ohms

  • Digital Audio Output Signal Format

    AES3, 16/24 bits, 32/48 kHz, 2 ch

  • Digital Audio Output Impedance

    110 ohms

  • USB Connector

    USB Type B (Hi-Speed USB) x 1

  • Power Supply

    DC 9V

  • Power Consumption

    8W

  • Operation Temperature

    +0 to + 40 deg.C

  • Dimensions (WxDxH)

    150x130x30mm / 5.90x5.11x1.18"

  • Weight

    500 g / 17.63oz

  • UPC Code

    761294503614

0 Accessories for Roland VC-1-DL Bi-directional SDI/HDMI Converter with Delay and Frame Sync

About Roland VC-1-DL

FEATURED REVIEWS

Needed Video Delay and an Audio Embedder

By Andrew T.

This device comes in very handy. We purchased one for our control room to use as a video delay, and are now using it as a two channel audio embedder. Bought a second because we liked the flexibility of it. We have used it as a delay, an embedder, an SDI to HDMI converter and vice versa. We keep it in a kit we carry with us when setting up away from home.

Great product to save our delay issues

By Kevin B.

Great product to save our delay issues in out edit bay

The Roland VC-1-DL Bi-directional SDI/HDMI Converter provides uncompromising picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1 series also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources.

The VC-1 series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL additionally enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Roland VC-1-DL Bi-directional SDI/HDMI Converter
  • AC Adapter
  • Power Cord
  • Rubber Foot x 4
  • Owner's Manual
