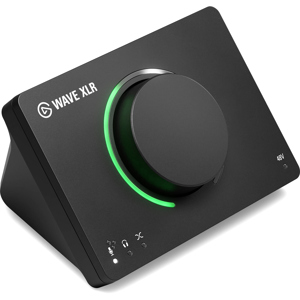

Elgato Wave XLR Microphone Interface & Digital Mixing Solution

SKU: EG10MAG9901 MFR: 10MAG9901
$184.99
Earn VIP Reward Points

Key Features

  • Achieve pristine audio quality with this XLR microphone interface for your recordings.
  • Enjoy low latency monitoring, ensuring real-time audio without distracting delays.
  • Take command with the digital mixing solution, fine-tuning your sound like a pro.
  • Experience wide input/output connectivity, perfect for mics, headsets, and more.
  • Seamless software compatibility ensures smooth integration with your favorite apps.
  • Built for durability, the Elgato Wave XLR interface offers reliable, long-term use.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elgato Wave XLR Specifications

  • System Requirements

    Windows
    OS: Windows 10 (64-bit)
    Others: USB 3.0 or higher

    Mac
    OS: macOS 10.15 or newer
    Others: USB 3.0 or higher

  • Frequency Response

    20 Hz - 20 kHz

  • Dynamic Range

    100 dB (120 dB Clipguard engaged)

  • Equivalent Input Noise (EIN)

    -130 dBV @ 60 dB gain

  • Gain Range

    0 - 75 dB

  • Phantom Power

    48 VDC, 7mA

  • Maximum Input Level

    10 V @ 0 dB gain (Clipguard engaged)

  • Maximum Output Level

    77 mW

  • Resolution

    24-bit

  • Sample Rate

    48/96 kHz

  • Interface

    USB-C

  • UPC Code

    840006642886

About Elgato Wave XLR

Bring your XLR microphone to life with the Wave XLR Microphone Interface & Digital Mixing Solution. This professional-grade, compact device from Elgato, a leader in audio and video equipment, transforms your microphone into a high-quality recording tool.

The Wave XLR is more than just an audio interface. It's a comprehensive solution that combines the functionality of multiple devices into one compact, user-friendly unit. It's equipped with proprietary anti-distortion technology and a capacitive mute button, ensuring your audio remains clear and distortion-free.

This device is designed for seamless integration with the custom Wave Link mixing software, allowing you to control and mix your audio with precision. The interchangeable faceplate adds a touch of personal style, making the Wave XLR a stylish addition to your recording setup.

The multifunctional control dial allows you to set input gain, adjust output volume, crossfade between mic and PC mix, and toggle phantom power. The capacitive sensor provides a convenient tap-to-mute feature, while the XLR input allows you to connect your microphone with ease.

The Wave XLR boasts a high-power headphone output for crystal clear, zero-latency monitoring. The state-of-the-art USB Type-C connection ensures fast and reliable data transfer.

With up to 75 dB of ultra-low-noise gain, the Wave XLR can make even the most insensitive dynamic mics sound loud and clear. The 48 volts of phantom power bring condenser mics to life, eliminating the need for an external preamp.

The proprietary Clipguard technology ensures clean audio output, even at high input levels. This feature reroutes sound through a secondary path at a lower volume when input levels peak, preventing distortion and clipping.

The Wave XLR also features switchable low-cut filters, allowing you to remove low frequencies for both close and distant mic positions. The intuitive Wave Link software gives you ultimate control over your audio, whether you're streaming on Twitch, creating YouTube videos, or recording a podcast.

This device also offers multi-channel command, allowing you to blend audio sources in real time. With the ability to create two completely independent output mixes, you can tailor your audio for both you and your audience.

The Wave XLR is compatible with third-party VST plugins, allowing you to customize your sound with EQ, compression, or reverb. The device also integrates seamlessly with Stream Deck, providing advanced A/V automation at your fingertips.

In conclusion, the Wave XLR Microphone Interface & Digital Mixing Solution is a durable, high-quality, and user-friendly device that offers professional-grade audio recording and mixing capabilities.

Elgato Wave XLR Features

  • Premium XLR to USB-C connection
  • Use the Wave Link app to mix Wave XLR w/multiple audio sources, plus create two independent mixes
  • Proprietary Clipguard technology prevents microphone distortion
  • Up to 75 dB of ultra-low-noise gain amplifies insensitive mics
  • 48 V phantom power drives condenser microphones
  • Dual selectable filters remove low frequencies
  • High-power 3.5 mm headphone jack for clear zero-latency monitoring
  • Capacitive mute button silences your mic feed upon the lightest touch
  • Multifunctional control dial for mic gain, headphone volume, and mic/PC mix
  • Faceplate and control dial can be swapped for different designs

Product Documents

User Manual

Key Features

  • Achieve pristine audio quality with this XLR microphone interface for your recordings.
  • Enjoy low latency monitoring, ensuring real-time audio without distracting delays.
  • Take command with the digital mixing solution, fine-tuning your sound like a pro.
  • Experience wide input/output connectivity, perfect for mics, headsets, and more.
  • Seamless software compatibility ensures smooth integration with your favorite apps.
  • Built for durability, the Elgato Wave XLR interface offers reliable, long-term use.

What's in the box:

  • Elgato Wave XLR Microphone Interface & Digital Mixing Solution
  • USB-C Cable
  • User Manual
  • Elgato 2 Year Limited Warranty
