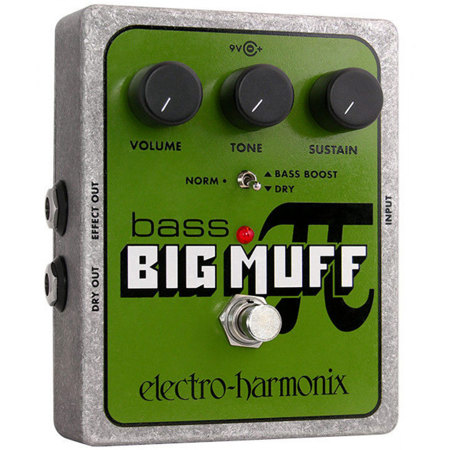

Electro-Harmonix Bass Big Muff Pi Fuzz/Distortion/Sustainer Pedal

SKU: EHBASSBM

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Harmonix Bass Big Muff Pi Specifications

  • Circuit

    Analog

  • Controls and Indicators

    Sustain knob
    Tone knob
    Volume knob
    Toggle Switch: Boost, Normal, Dry
    True Bypass footswitch
    Status LED

  • Connectors

    1/4" phone jack, instrument input
    1/4" phone jack, effect output
    1/4" phone jack, direct output
    DC power jack, 9 VDC power input

  • Impedance

    Input: 100 kOhms

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    9-Volt

  • Battery Quantity

    1

  • Dimensions

    4 x 4.75 x 2.25" (10.2 x 12.1 x 5.7cm)

  • Weight

    15.87 oz (450g)

  • UPC Code

    683274010854

About Electro-Harmonix Bass Big Muff Pi

How can you elevate your musical performance with the right equipment The Electro-Harmonix Bass Big Muff Pi Fuzz/Distortion/Sustainer Pedal is the answer. This innovative pedal combines the powerful drive of the original Big Muff Pi with a bass-tailored design, ensuring no loss of low-end sound.

Drawing inspiration from the legendary bass response of the Black Russian Big Muffs from the 90s, the Bass Big Muff Pi delivers a distortion that hits with the force of a ton of bricks, complete with a sludgy mortar. This high-quality, durable pedal is versatile and effective, offering a full fuzz tone that lets your bass rip and rumble.

The classic three-knob design of Volume, Tone, and Sustain gives you familiar control over the fuzz circuit. The Volume knob sets the output level of the distortion, while the Tone knob provides a range of sounds from high treble to deep bass. The Sustain knob adjusts the amount of sustain and distortion, allowing you to fine-tune your sound.

The pedal also features a Dry/Bass Boost switch that either mixes your dry signal with the fuzz tone or reintroduces more low frequencies into the fuzz circuit, useful when the Tone knob is set high. A separate Dry output allows for two amp sets for increased setup versatility.

The Effect Out Jack is the main audio output, which can be connected to the input of your amp or another effects pedal. The Dry Out Jack is connected directly to the Input jack, allowing access to your original bass signal. This jack can be connected to an amplifier or a different effects chain.

The Bypass Switch and Status LED allow you to toggle between effect mode and True Bypass. When the status LED is lit, the effect is active. The Input Jack is designed for your musical instrument input. The Bass Boost/Norm/Dry Toggle Switch offers three modes for added versatility. In Bass Boost mode, a bass frequency boost is added to the distortion. In Norm mode, you have the pure tone of the classic Big Muff Pi. In Dry mode, the original dry signal from your instrument is mixed with the output of the distortion circuit.

Experience the difference of the Electro-Harmonix Bass Big Muff Pi Fuzz/Distortion/Sustainer Pedal, a trusted choice for musicians seeking to enhance their sound.

Electro-Harmonix Bass Big Muff Pi Features

  • Tailor your drive/distortion sound with sustain, tone and volume knobs
  • A dry switch that mixes your dry bass with the Bass Big Muff Pi's distortion
  • A bass boost EQ switch that reintroduces your low frequencies when tone is set for high frequencies
  • Based on the Russian Big Muff
  • True bypass
  • Tough and compact die-cast chassis

Key Features

  • Innovative Bass Big Muff Pi Fuzz/Distortion/Sustainer Pedal for superior sound effects
  • High-quality, durable design inspired by the legendary Black Russian Big Muffs of the 90s
  • Versatile three-knob design for control over Volume, Tone, and Sustain
  • Dry/Bass Boost switch for mixing dry signal with fuzz tone or reintroducing low frequencies
  • Separate Dry output and Effect Out Jack for increased setup versatility
  • Bypass Switch and Status LED for toggling between effect mode and True Bypass

What's in the box:

  • Electro-Harmonix Bass Big Muff Pi Fuzz/Distortion/Sustainer Pedal
  • 9V Battery
  • (Power Adapter Not Included)
  • Electro-Harmonix 1 Year Limited Warranty
