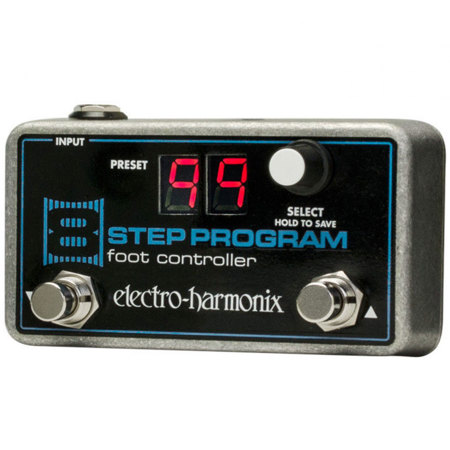

Electro-Harmonix Foot Controller for 8 Step Program Pedal

Quick and easy access to 100 presets on the 8 Step Program!

The EHX 8 Step Program Foot Controller lets you save and recall up to 100 presets with the 8 Step Program Analog Expression/CV Sequencer. Scroll and save presets with the Select knob and toggle through presets with the Up/Down Footswitches.

The Foot Controller receives power from the 8 Step and connects to it with a standard mono guitar cable. It's a must have!

Input
Connect the foot controller to the 8-step program.

2-Digit LED Display
The LED digits display the currently selected or loaded preset number. The numbers range from 0 to 99.

UP/DOWN Footswitches
If no preset is currently loaded, pressing either footswitch will load the preset associated with the currently displayed number. If a preset is loaded, press and release the UP Footswitch and the digits on the 8-STEP FC will increment by one while simultaneously loading the preset indicated by the new number. Press and hold either footswitch for approximately 1 second to jump up or down by 10 presets at a time.

Select Knob
The SELECT knob can be used to scroll through the presets without loading a new preset.
