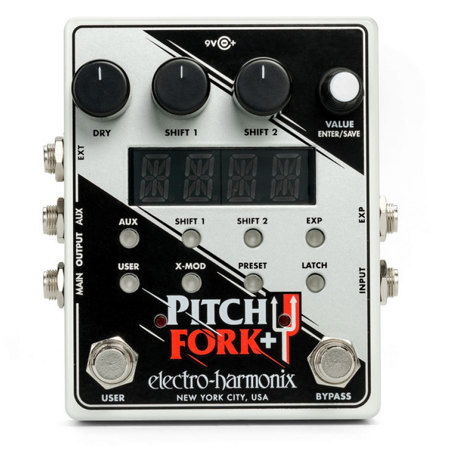

Electro-Harmonix Pitch Fork+ Polyphonic Pitch Shifter Pedal

An innovative sonic tool for musicians, the EHX Pitch Fork+ Polyphonic Pitch Shifter Pedal offers unparalleled pitch-shifting capabilities with dual independent engines. This advanced pedal allows artists to elevate their sound, transposing pitches up or down across a sweeping +/- three-octave range and fine-tuning with detune adjustments of +/-99 cents. The Pitch Fork+ is designed for precision and versatility, featuring rock-solid tracking and an organic, musical tone that integrates seamlessly into any setup.

The pedal's expansive control options include an Input Jack for audio input and an Exp Jack that accepts an expression pedal or control voltage (CV), providing dynamic manipulation over various parameters. The Ext Jack is a TRS input designed for connecting external foot-controllers like the EHX Triple Foot Controller, further expanding the pedal's functionality.

Audio outputs are well catered for with a Main Output Jack for the primary audio signal and an Aux Output Jack for auxiliary audio routing. The Dry Knob allows users to balance the volume level of the unaffected signal, while the Shift 1 and Shift 2 Knobs independently control the volume levels of the two pitch-shifting engines.

The Value Knob is a multi-functional tool used to adjust mode parameters, navigate sub-menus, or save custom presets to memory. A 4-Character Display provides clear visual feedback, indicating current settings and menu options, ensuring users can easily tweak and refine their sound.

The pedal's Aux function lets users decide which channel is sent to the AUX output, and it also configures the BYPASS footswitch's impact on the AUX output. Shift 1 & Shift 2 offer precise control over the transposition of the input signal, with settings available in semitones or octaves, and the ability to detune for added sonic texture.

Expression pedal routing is customizable within the Exp sub-menus, which include FREQ, GLIS, and VOL settings. The User programmable footswitch can be assigned to various parameters, enhancing the pedal's interactivity and control. The X-Mod feature provides access to cross-modulation settings, and the Preset function simplifies the management of presets.

The Latch feature allows users to set the BYPASS footswitch to either latching or momentary mode, a carryover from the original Pitch Fork. This footswitch toggles the effect on and off, with an LED indicator for visual reference. In Momentary mode, the glissando effect is engaged while the footswitch is held down, reverting to bypass upon release.

Additionally, the User Footswitch is independently programmable and operates separately from the BYPASS footswitch, complete with its own status LED to indicate active effects or features.

Crafted for the discerning musician, the EHX Pitch Fork+ Polyphonic Pitch Shifter Pedal is a testament to Electro-Harmonix's commitment to quality and innovation in effects pedal design, offering an expansive range of creative possibilities for guitarists and other instrumentalists seeking to push the boundaries of their music.
