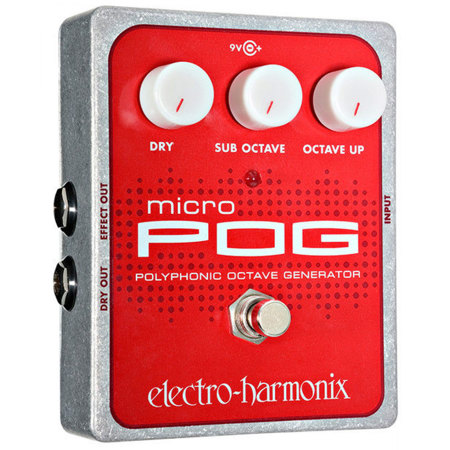

Electro-Harmonix Micro POG Polyphonic Octave Generator Pedal

SKU: EHMICROPOG

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?DAVID N : Too many issues at Sweetwater.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Electro-Harmonix Micro POG Specifications

  • Circuit

    Digital

  • Controls

    1x Knob: Dry
    1x Knob: Sub Octave
    1x Knob: Octave Up

  • Indicators

    LED, Status Effect/Bypass mode

  • Connectors

    1/4" phone jack, input
    1/4" phone jack, effect output
    1/4" phone jack, dry output
    DC power jack, 9 VDC input

  • Impedance

    Input: 2 MOhms
    Output: 250 Ohms

  • Power Supply

    9.6VDC, 200mA

  • Dimensions

    4 x 4.75 x 2.25" (102 x 121 x 57.1mm)

  • Weight

    14.46 oz (410g)

  • UPC Code

    683274010700

About Electro-Harmonix Micro POG

Generate multiple octaves from your input signal. Whether you play single notes, arpeggios or full chords, the Micro POG will track, every note or chord that you play, with precision!

The Legenday and classic original POG won top awards from every major magazine on every continent for its flawless polyphonic tracking and musical flexibility. The EHX Micro POG delivers the same perfect tracking and smooth polyphony in a simplified design. Now in a small pedalboard-friendly diecast chassis, the Micro POG delivers and will blow you away the first time you use it.

With the MICRO POG, you can mix together your original "dry signal" with two different octaves (one above and one below your original note) to create totally new inspiring tones.

Dry Knob
Controls the output volume of the DRY signal.

Sub Octave Knob
Controls the output volume of the SUB OCTAVE signal.

Octave Up Knob
Controls the output volume of the OCTAVE UP signal.

Dry Output Jack
Outputs the signal present at the input jack.

Input Jack
This is the audio input.

Dry Out Jack
Outputs a buffered version of the input signal.

Bypass Footswitch
Toggle between effect and bypass modes.

Electro-Harmonix Micro POG Features

  • Polyphonic super fast tracking: play chords, arpeggios or single notes with no glitches
  • Adjustable original pitch volume
  • Adjustable one octave up volume
  • Adjustable one octave down volume
  • Amazing 12 string guitar
  • Easily turns your guitar into a bass
  • Church organ to Hammond like organ sounds
  • Dry output jack in addition to the effect output jack
  • Tough and compact die-cast chassis

Key Features

  • Polyphonic super fast tracking: play chords, arpeggios or single notes with no glitches
  • Adjustable original pitch volume
  • Adjustable one octave up volume
  • Adjustable one octave down volume
  • Amazing 12 string guitar
  • Easily turns your guitar into a bass

What's in the box:

  • Electro-Harmonix Micro POG Polyphonic Octave Generator Pedal
  • Power Adapter
  • Electro-Harmonix 1 Year Limited Warranty
