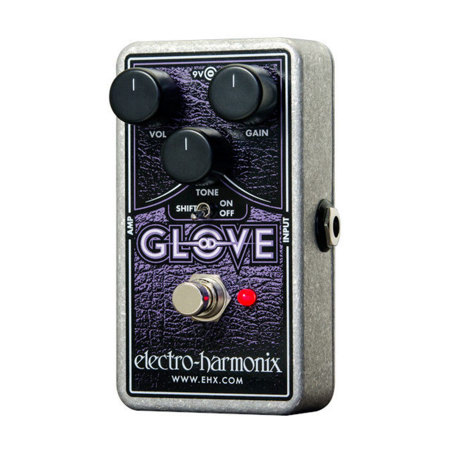

Electro-Harmonix OD Glove MOSFET Overdrive/Distortion Pedal

SKU: EHODGLOVE

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Electro-Harmonix OD Glove Specifications

  • Circuit

    Analog

  • Controls

    3x knob: Volume, Tone, and Gain
    1x Switch: Shift On/Off
    1x Internal Switch: 9V/18V
    1x Footswitch: On/Bypass

  • Indicators

    LED, status

  • Connectors

    1/4" phone jack, input
    1/4" phone jack, AMP output
    DC power jack, 9VDC input

  • Input Impedance

    300 kOhm

  • Output Impedance

    120 - 100 kOhm

  • Power Requirement

    9VDC internal battery

  • Maximum Voltage

    10VDC

  • Current Draw

    12mA/5mA

  • Compliance

    FCC

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    9-Volt

  • Battery Quantity

    1

  • Dimensions

    2.75 x 4.5 x 2.1" (70 x 115 x 54mm)

  • Weight

    10.22 oz (290g)

  • UPC Code

    683274011455

About Electro-Harmonix OD Glove

Delivers overdrive and distortion with impact, and the modern player in mind!

The EHX OD Glove provides a rich, overtone laden sound that doesn't get muddy. Responsive controls that take you from sparkling, clean boost through brown crunch and all the way to thick, saturated hi-gain. Advanced features like Tone Shift and selectable 9 or 18V internal voltage for surgical sound sculpting.

VOL Knob
Sets the output level of the OD GLOVE.

Gain Knob
Controls the amount of input gain and overdrive.

Tone Knob
Filters out high frequencies. Use this to achieve a smoother tone or to reduce any high-frequency harshness.

Tone Shift Switch
Controls the mid-frequency emphasis of the TONE knob.

Footswitch And LED
Selects whether the effect is engaged or in bypass mode. When the effect is engaged, the LED is lit.

Input Jack
This 1/4" jack is the audio input.

AMP Jack
This 1/4" jack is the audio output.

Electro-Harmonix OD Glove Features

  • Versatile MOSFET overdrive/distortion
  • Tone Shift switch
  • Selectable 9V or 18V internal voltage
  • True bypass
  • Tough, compact die-cast chassis

Key Features

  • Versatile MOSFET overdrive/distortion
  • Tone Shift switch
  • Selectable 9V or 18V internal voltage
  • True bypass
  • Tough, compact die-cast chassis

What's in the box:

  • Electro-Harmonix OD Glove MOSFET Overdrive/Distortion Pedal
  • 9V Battery
  • (Power Adapter Not Included)
  • Electro-Harmonix 1 Year Limited Warranty
