Electro-Harmonix Super Switcher Specifications

  • Circuit

    Analog, Analog w/Digital Control

  • Connections

    1/4" Instrument Connectors: Inputs, Sends, Returns, Inserts, Footswitches, Tuner, and Outputs
    5-Pin DIN Connector: MIDI I/O for CC and PC
    Power Connector: For Electro-Harmonix 9.6DC200BI Power Supply

  • Audio Input Impedance

    2 MOhms (Buffer or Boost Only)

  • Audio Output Impedance

    Audio Outputs Buffer Only: 470 Ohms
    Audio Outputs with Boost On: 1 kOhm

  • Current Draw

    150 mA

  • Input Signal Level

    +11 dBu, Maximum

  • Bypass

    Mechanical Relay True Bypass Switching

  • Dimensions

    19 x 6 x 2.75" (48.26 x 15.24 x 6.9cm)

  • Weight

    5.8 lbs (2.65kg)

  • UPC Code

    683274012063

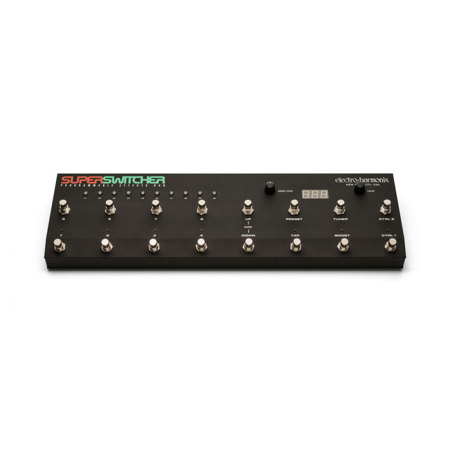

About Electro-Harmonix Super Switcher

An innovative solution for guitarists seeking advanced control over their sound, the Super Switcher Programmable Effects Hub for Electric Guitar by Electro-Harmonix revolutionizes the way you interact with your pedalboard. This high-quality, durable multi-effects processor eliminates the need for complex "tap dancing" around your pedalboard by bringing all your pedals to the forefront with a single button push.

Designed for versatility, the Super Switcher is an ideal choice for guitarists utilizing the "four-cable method." It simplifies the routing of effects that should be positioned in front of an amp and those best placed in the effects loop. This feature enhances the quality of your sound and ensures a seamless performance.

When it comes to live performances, this advanced effects hub excels in organizing presets into easily recallable banks that align with your set list. For those playing to a click track, the Super Switcher offers MIDI programmability, allowing you to sync your presets to a song. This feature also enables you to synchronize time-based effects to a single master clock, ensuring a consistent and harmonious sound.

The Super Switcher's interface includes L1-8 controls that display the on/off status of corresponding effects loops. It also features a Preset Footswitch that toggles between Preset Mode and an Instant Access Mode for manual control. The Tuner Footswitch sends the IN signal directly to the TUNER jack, while the Ctrl 2 Footswitch can be used to switch amp channels or trigger remote effects.

The device also includes Footswitches 1-8 that engage and disengage the corresponding presets for the selected bank. The Bank Up and Bank Down footswitches allow you to navigate through the preset banks, with 16 banks each containing 8 presets. The TAP footswitch updates the BPM setting for the Super Switcher and controls the tempo signal output from the TAP jack.

The Boost Footswitch activates the stereo output boost, and the Ctrl 1 Footswitch can be used to switch amp channels, trigger remote effects, or act as a master bypass button. With the Super Switcher Programmable Effects Hub for Electric Guitar, you gain unparalleled control over your sound, enhancing your performance and musical creativity.

Electro-Harmonix Super Switcher Features

  • Extensive I/O maximizes flexibility and control
  • Mono and stereo send/return, insert send/return and mono/stereo out
  • Equipped with tuner and tap tempo outs, MIDI In & Out and more
  • Eight mechanical-relay controlled, true bypass loops
  • Provides 128 presets: 16 banks with 8 presets each
  • Tap footswitch sets the BPM. The Super Switcher can be configured to send/receive MIDI clock and send tap signals to the output. BPM can be global or per preset
  • Tuner footswitch sends the input signal to the tuner out and cuts off the signal from any loops or output
  • Boost footswitch engages a knob adjustable, output gain Boost on both the left and right channels

Key Features

  • Advanced multi-effects processor for electric guitars by Electro-Harmonix
  • Simplifies control over pedalboard with single button push functionality
  • Ideal for guitarists utilizing the "four-cable method" for precise effect routing
  • MIDI programmability for syncing presets to songs and time-based effects to a master clock

What's in the box:

  • Electro-Harmonix Super Switcher Programmable Effects Hub
  • Power Adapter
  • Electro-Harmonix 1 Year Limited Warranty
