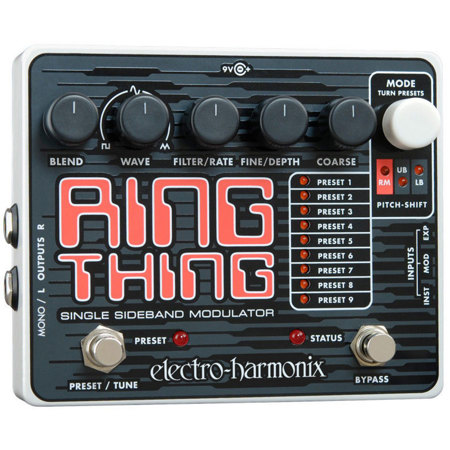

Electro-Harmonix Ring Thing Single Sideband Modulator Pedal

From metallic sweeps to subtle color changes to unique and limitless modulations, it will become your sonic dream machine!

The EHX Ring Thing ring modulator presents state of the art modulation control allowing the user to explore a new sonic world that is both familiar and inventive. Complex modulations with interactive parameters create any sound your mind can imagine. Articulate pitch shifting, preset tuning, selectable waveforms and external control delivers sound designer mystery, with a Rock and Roll edge.

Blend Knob
A wet/dry control for the effect outputs.

Wave Knob
Changes the waveshape of the modulation signal working in two different ways depending on the selected mode.

Filter/Rate Knob
Acts as a low pass filter in all three ring modulator modes and as a modulation RATE control in Pitch Shift mode.

Fine/Depth Knob
Controls the Ring Modulator frequency and Pitch Shift amount, but with a more limited range than the COARSE knob.

Coarse Knob
Controls the Ring Modulator frequency and the Pitch Shift amount in their respective modes.

Mode Knob
Chooses the mode to play through and also scrolls through the nine presets.

Mono/L and R Output Jacks
When in a mono output configuration, use the MONO/L output. When using a stereo output configuration, use both the MONO/L and R output jacks.

Exp Input Jack
The Ring Thing allows for expression pedal input via the EXP input jack.

Mod Input Jack
Connect a modulation source and set the WAVE knob to full counter-clockwise to enable external modulation.

Inst Input Jack
The main input jack.

Preset/Tune Footswitch
Performs two functions: 1. loading and cycling through presets. 2. tuning the ring modulator to the incoming signal at the INST input jack.

Bypass Footswitch/Status LED
Toggles the Ring Thing between effect mode and bypass mode.
