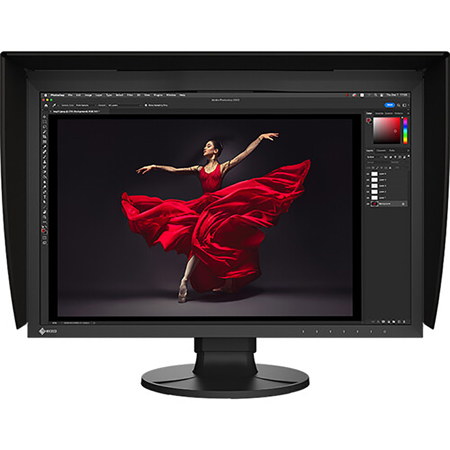

Eizo ColorEdge CG2400S 24.1" 16:10 WUXGA IPS LED Monitor, Black

SKU: EICG2400SBK MFR: CG2400S-BK
Earn VIP Reward Points

Key Features

  • Experience stunning visual clarity with the 24.1-inch WUXGA IPS LED monitor, perfect for creative professionals.
  • Achieve precise color accuracy for your projects, thanks to 99% Adobe RGB and 98% DCI-P3 color gamut.
  • Enjoy seamless connectivity with versatile USB Type-C, DisplayPort, and HDMI inputs for all your devices.
  • Benefit from an impressive 1800:1 contrast ratio and 400 cd/sq. m brightness for vibrant, detailed images.
  • Work comfortably with the ergonomic stand, offering height, tilt, swivel, and pivot adjustments for optimal viewing.
  • Rely on the built-in calibration sensor and ColorNavigator 7 software for consistent, professional color management.
See More Product Details
Temporarily On Backorder?Expected Availability: 12/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Eizo ColorEdge CG2400S Specifications

Panel
  • Type

    IPS

  • Backlight

    Wide-Gamut LED

  • Size

    24.1" (61.1cm)

  • Native Resolution

    1920 x 1200 (16:10 aspect ratio)

  • Viewable Image Size (H x V)

    518.4 x 324mm

  • Pixel Pitch (H x V)

    0.270 x 0.270mm

  • Pixel Density

    94 ppi

  • Display Colors

    1.07 billion colors, 10-bit display (from a palette of 278 trillion, 16-bit LUT)

  • Viewing Angles (H / V, typical)

    178 Degree , 178 Degree

  • Brightness (typical)

    400 cd/sq. m

  • Contrast Ratio (typical)

    1800:1

  • Response Time (typical)

    11 ms (gray-to-gray)

  • Color Gamut (typical)

    Adobe RGB: 99%, DCI-P3: 98%

Video Signals

Jump to...
  • Input Terminals

    USB Type-C (DisplayPort Alt Mode, HDCP 2.3), DisplayPort (HDCP 2.3), HDMI (Deep Color, HDCP 2.3)

  • Digital Scanning Frequency (H / V)

    USB Type-C, DisplayPort: 26 - 76 kHz / 23 - 61Hz
    HDMI: 15 - 76 kHz / 23 - 61Hz

  • Upstream

    USB 5Gbps: Type-C (DisplayPort Alt Mode, Power Delivery Source 70 W max.), USB 5Gbps: Type-B

  • Downstream

    USB 5Gbps: 2x Type-A
    USB 2.0: 2x Type-A

  • Power Input

    AC 100 - 240 V, 50 / 60 Hz

  • Typical Power Consumption

    17W

  • Maximum Power Consumption

    150W

  • Power Save Mode

    0.5 W or less

  • Built-in Calibration Sensor

    Yes

Features & Functions

Jump to...
  • Brightness Stabilization

    Yes

  • Digital Uniformity Equalizer

    Yes

  • Preset Modes

    User, BT.2020, BT.709, DCI-P3, PQ_DCI-P3, HLG_BT.2100, Adobe RGB, sRGB, Calibration (CAL), SYNC_SIGNAL

  • HDR Gamma

    HLG, PQ curve

  • OSD Languages

    English, German, French, Spanish, Italian, Swedish, Simplified Chinese, Traditional Chinese, Japanese

  • Others

    Color Adjustment, PQ Option, HLG Option, SelfCalibration, Input Color Format, YUV Color Matrix, Input Range, I/P Conversion, Picture Expansion, BT.709 Gamut warning, Luminance Warning, Marker, Menu Rotation, Power Save, Input Skip, Mode Skip, Custom Key, Information Display, Key Lock, DUE Priority, Pixel Inspection

Environmental

Jump to...
  • Operating Temperature

    32 - 95 Degree F (0 - 35 Degree C)

  • Operating Humidity (R.H non condensing)

    20 - 80%

Certifications & Standards

Jump to...
  • Certifications & Standards

    CB, CE, UKCA, TUV/GS, cTUVus, FCC-B, CAN ICES (B), VCCI-B, RCM, RoHS, WEEE, TUV/Ergonomics, FograCert Softproofing System (class A)

Dedicated Software

Jump to...
  • Easy Screen-to-Print Color

    Supported (Matching Tool Quick Color Match)

Proprietary Software

Jump to...
  • Color Management Software

    Supported (ColorNavigator 7)

Physical

Jump to...
  • Color

    Black

  • Height Adjustment Range

    6.10" (155mm)

  • Tilt

    35 Degree Up, 5 Degree Down

  • Swivel

    344 Degree

  • Pivot

    90 Degree

  • Hole Spacing (VESA Standard)

    100 x 100mm

  • Dimensions (W x H x D)

    With Stand: 21.83 x 16.07 - 22.17 x 9.65" (554.4 x 408.1 - 563.1 x 245mm)
    With Hood: 22.22 x 16.26 - 22.36 x 12.99" (564.4 x 413.1 - 568.1 x 330mm))
    Without Stand: 21.83 x 14.73 x 2.7" (554.4 x 374.1 x 70.2mm)

  • Weight

    With Stand: 18.74 lbs (8.5kg)
    With Hood: 19.84 lbs (9kg)
    Without Stand: 12.13 lbs (5.5kg)

  • UPC Code

    690592060843

About Eizo ColorEdge CG2400S

Make an Impact
This 24.1-inch monitor features WUXGA (1920 x 1200) resolution and HDR gamma support to bring creative visions to life with stunning detail. With a built-in self-calibration sensor and USB Type-C connectivity, it offers a seamless workflow for professional creatives in any field. Whether your focus is photography, video editing, design, or print, empower your creativity and make a lasting impact.

Compact Design, Expansive Display
The CG2400S features 1920 x 1200 resolution with a 16:10 aspect ratio that allows for more information to be displayed vertically than with Full HD, eliminating the need to scroll. The 24.1-inch screen size provides ample space to display content, even with a tool panel visible, enabling you to continue creating while seeing more of your image.

Streamlined Connection

Single Cable Connection with USB Type-C
The monitor features USB Type-C connectivity that allows you to display video, transmit USB signals, and supply power to a connected device such as a tablet or notebook PC. This convenient multi-purpose connectivity makes it faster and easier to connect when moving between creative work areas, when working remotely, or when working in a home studio.

70 W Power Delivery
The USB Type-C terminal reliably charges a connected tablet or laptop with 70 W power delivery. This eliminates the need for a laptop's bulky power supply unit, freeing up space in your bag and on the desk.

Color Precision

Vivid Colors Reproduced to Industry Standards
The monitor's wide color gamut faithfully reproduces 98% of the DCI-P3 standard used in digital cinema and supports the BT.2020 standard used in broadcasting. In addition, it covers 99% of the Adobe RGB color space so images shot in Adobe RGB will be displayed correctly. It also covers almost the entire ISO Coated v2 and US Web Coated CMYK color spaces used in printing.

Broadcast and Cinema Presets
The CG2400S offers preset modes for DCI-P3, BT.709, and BT.2020 to ensure you can work in the appropriate color spaces and gamma values. In addition, preset modes for PQ (DCI and BT.2100) and HLG (BT.2100) are available for viewing HDR content. With the monitor's built-in calibration sensor, you can conveniently adjust or maintain the brightness setting for each preset.

10-Bit Simultaneous Display
The monitor offers 10-bit simultaneous display from a 16-bit look-up-table (LUT) which means it can show more than one billion colors simultaneously. This is 64 times more colors than you get with 8-bit display, resulting in smooth color gradations and reduced Delta-E between two adjacent colors.

3D LUT for Accurate Color Display
The monitor is equipped with a 3D LUT (look-up table) which adjusts colors on an RGB cubic table. Using ColorNavigator 7's film emulation function, users can emulate film color properties using a 3D LUT file.

Reliable Color Management

Built-In Sensor to Automate Your Workflow
The monitor's built-in sensor can be set to calibrate the monitor automatically at designated times. This eliminates the need for a third-party calibration device and ensures your screen stays color-accurate. In addition, the sensor swings onto the screen, taking up minimal space and allowing you to continue working even during calibration.

ColorNavigator 7 Color Management Software
A monitor needs to be calibrated at regular intervals to maintain color accuracy. EIZO's proprietary ColorNavigator 7 software provides an intuitive and highly precise solution to color management. It allows you to schedule automatic recalibration, calibrate all color modes simultaneously, and conduct correlation with external sensors to match the studio's internal color management framework. Calibration information is saved to the monitor instead of the operating system so users do not have to recalibrate even when using a different PC.

ColorNavigator Network Quality Control Software

ColorNavigator Network provides centralized quality control (QC) of ColorEdge monitors for studios, printing houses, and other enterprises with multiple creators and editors who work on shared projects. With Net Agent or ColorNavigator 7 installed on the workstation, administrators can manage multiple ColorEdge monitors via the web browser, enabling quality control even from remote locations. ColorNavigator Network is hosted on a secure cloud server to free you from the initial investment and running costs of providing your own server.

Features for Video Editing

HDR Gamma Curves
For HDR content, the CG2400S supports the gamma (EOTF) compatible hybrid log-gamma (HLG) transfer function for broadcasting and perceptual quantization (PQ) curve for production of films and streamed content.

True Black Display
In compliance with the DCI standard, the monitor offers a high contrast ratio of 1800:1 for producing true blacks that are otherwise difficult to display on a typical LCD monitor. CG Series monitors are also equipped with a retardation film which allows tones to retain their depth even when viewed from an angle.

Accurately Preview Log Footage
With ColorNavigator 7, users can upload a LUT or log profile directly to the monitor, enabling accurate previewing of footage with correct color and contrast. This ensures that what is seen on-site during filming or in-studio during editing reflects the intended output, helping professionals maintain visual consistency throughout production.

Sync Signal
The monitor's Sync Signal function automatically switches the color settings - brightness, gamma (EOTF), and color gamut - according to the metadata of the input signal. This eliminates the need to manually switch color settings when working on multiple projects, so users can be confident that they are always working with the correct settings.

Check PQ Contents at Any Brightness Level
The monitor offers an optional PQ gamma curve (EOTF) function that allows the input signal to be clipped or compressed to fit within the luminance value of the monitor. This allows users to simulate how the signal will appear in other display environments. The Auto setting under PQ Option menu automatically adjusts the PQ curve according to the monitor's current brightness.

Luminance Warning
The PQ Option function allows you to check PQ content at any brightness level and shows the areas of the image that are clipped when displayed at a specified brightness level. These areas are marked in yellow or magenta to easily distinguish them within the image.

BT.709 Out-of-Gamut Warning
The monitor includes a Gamut Warning mode that indicates areas of a BT.2020 image that cannot be reproduced in the BT.709 color space, which is the standard for Full HD broadcasts, by displaying them in shades of gray. An additional mode called BT.709 Clipping allows the editor to view BT.2020 images within the BT.709 color space, simulating how it would look in an HDTV environment.

Pixel Inspection
Working within the wrong parameters affects editing decisions, potentially requiring significant rework of projects and causing costly delays in production schedules. Pixel Inspection, operated through the monitor's OSD, shows the color information of a pixel from the source input data and the data as it is displayed on the monitor.

System managers can use this information to verify that the creator's technical settings match the current project's predefined color parameters. This is especially helpful when creators are working remotely and system managers cannot verify settings directly. By ensuring that creators are working under the appropriate technical conditions, studios can reduce the likelihood of project rework due to mismatched technical settings.

Markers for Information Overlay
The CG2400S features a marker function to ensure that content, such as text or graphics, is properly positioned on the screen. The Safe Area Marker marks an area of the screen within which captions or other information will appear to ensure they are visible during broadcast. The position and size of the markers can be specified to suit the current project.

Stable Image Display

Adjusted at the Factory for Smooth Color Gradations
The gamma level for each ColorEdge monitor is adjusted at the factory by measuring the R, G, and B gamma values from 0 - 1023. The monitor's 16-bit LUT is then used to select the 1024 most appropriate tones and achieve the desired value. This ensures the smoothest color gradations in your images.

Uniformity Across the Screen
LCD monitors commonly exhibit fluctuations in brightness and chromaticity across the screen, affecting color accuracy. To counter this, ColorEdge monitors are equipped with EIZO's patented digital uniformity equalizer (DUE) technology which corrects deviations in every tone across the screen to ensure stable display.

Stable Display Using Industry-First AI
The color and brightness of an LCD monitor can shift due to changes in ambient temperature. ColorEdge CG Series monitors are equipped with a temperature sensor that measures the temperature inside the monitor and estimates the ambient room temperature. Using this technology, the monitor adjusts in real time to maintain accurate gradation, color, brightness, and other characteristics.

In addition, the monitor uses AI (Artificial Intelligence) in its estimation algorithm to detect and distinguish patterns in temperature changes for more precise calculations to ensure stable and accurate display.

Eizo ColorEdge CG2400S Features

  • 24.1" WUXGA monitor with HDR gamma support for stunning detail
  • USB Type-C with 70 W power delivery for display data and charging
  • Built-in calibration sensor for automated color accuracy
  • 98% DCI-P3 and 99% Adobe RGB coverage for vivid color reproduction
  • 10-bit display from 16-bit LUT showing over one billion colors
  • True Black with 1800:1 contrast ratio for DCI-compliant viewing
  • Uniformity and stability with AI-driven temperature compensation

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience stunning visual clarity with the 24.1-inch WUXGA IPS LED monitor, perfect for creative professionals.
  • Achieve precise color accuracy for your projects, thanks to 99% Adobe RGB and 98% DCI-P3 color gamut.
  • Enjoy seamless connectivity with versatile USB Type-C, DisplayPort, and HDMI inputs for all your devices.
  • Benefit from an impressive 1800:1 contrast ratio and 400 cd/sq. m brightness for vibrant, detailed images.
  • Work comfortably with the ergonomic stand, offering height, tilt, swivel, and pivot adjustments for optimal viewing.
  • Rely on the built-in calibration sensor and ColorNavigator 7 software for consistent, professional color management.

What's in the box:

  • Eizo ColorEdge CG2400S 24.1" 16:10 WUXGA IPS LED Monitor (Black)
  • 6.5' USB Type-C Cable
  • 6.5' HDMI
  • 6.5' USB-A to USB-B Cable
  • AC Power Cord
  • Monitor Hood
  • Factory Calibration Report
  • User Manual
  • Eizo 5 Year Limited Warranty
