What is the resolution of the EV3285 4K Ultra-Slim Frame 31.5" Wide Screen IPS LED Monitor?

The EV3285 monitor offers a 4K UHD resolution of 3840 x 2160, providing four times the workspace of a standard full HD monitor.

Does the EV3285 monitor have built-in speakers?

Yes, the EV3285 monitor has integrated front-facing speakers which eliminate the need for external speakers and provide high-quality audio.

What is the single cable connection feature of the EV3285 monitor?

The EV3285 monitor features a single cable connection with USB Type-C. This allows the transmission of both video and audio signals, data transfer, and the supply of up to 60W of power to attached devices with just one cable.

What are the eye comfort features of the EV3285 monitor?

The EV3285 monitor includes features designed to reduce eye fatigue. These include Auto Brightness Control that adjusts the screen to the ideal brightness level based on ambient light and a blue light reduction feature that can reduce blue light by as much as 80%.

Does the EV3285 monitor come with any software features?

Yes, the EV3285 monitor includes intelligent software features such as Auto Color Mode, which automatically switches to the assigned color mode when specific applications are opened, and Hotkey Assignment, which allows you to switch between two PCs connected to your monitor with just your keyboard.

Shopper : Why Did You Choose This?RICHARD S : Quality, experience with other Eizo models. A bit pricey, but delivers superb performance.DOMINIK F : I already have one of those, it's excellent

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Eizo EV3285 Specifications

Panel
  • Type

    IPS

  • Backlight

    LED

  • Screen Size

    31.5" (80cm)

  • Native Resolution

    3840 x 2160 (16:9 aspect ratio)

  • Viewable Image Size (H x V)

    27.45 x 15.44" (697.3 x 392.2mm)

  • Pixel Pitch

    0.182 x 0.182mm

  • Display Colors

    16.77 million

  • Viewing Angles (H / V, typical)

    178 Degree / 178 Degree

  • Brightness (typical)

    350 cd/sq. m

  • Contrast Ratio (typical)

    1300:1

  • Response Time (typical)

    5 ms (Gray-to-gray)

  • Color Gamut (typical)

    sRGB

Video Signals

Jump to...
  • Input Terminals

    USB Type-C (DisplayPort Alt Mode, HDCP 1.3), DisplayPort (HDCP 1.3), HDMI (HDCP 2.2/1.4) x 2

  • Digital Scanning Frequency (H / V)

    USB Type-C: 31 - 134 kHz / 29 - 31 Hz and 59 - 61 Hz
    DisplayPort: 31 - 134 kHz / 29 - 31 Hz and 59 - 61 Hz
    HDMI: 31 - 135 kHz / 29 - 31 Hz and 49 - 61 Hz

  • Upstream

    USB 3.1 Gen 1: Type-C (DisplayPort Alt Mode, Power Delivery Source 60 W max.)

  • Downstream

    USB 3.1 Gen 1: 2x Type-A (Battery Charging 10.5 W max. 1x)

  • Speakers

    1.0 W +1.0 W

  • Input Terminals

    USB Type-C, DisplayPort, 2x HDMI

  • Output Terminals

    Headphones (Stereo mini jack)

  • Power Requirements

    AC 100 - 240 V, 50 / 60 Hz

  • Typical Power Consumption

    32 W

  • Maximum Power Consumption

    163 W

  • Power Save Mode

    0.5 W or less

Features & Functions

Jump to...
  • Preset Modes

    Color mode (User1, User2, sRGB, Paper, Movie, DICOM)

  • Auto EcoView

    Yes

  • OSD Languages

    English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese

Environmental Requirements

Jump to...
  • Operating Temperature

    41 Degree F to 95 Degree F (5 Degree C to 35 Degree C)

  • Operating Humidity

    20 - 80 % (R.H., non condensing)

  • Certifications & Standards

    TCO Certified Generation 8, EPEAT Gold 2009 (US), EPEAT 2018 (US), TUV/Ergonomics, TUV/Low blue light content, TUV/Flicker Free, TUV/GS, RCM, CE, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, EPA Energy Star, RoHS, WEEE, China RoHS, CCC, China Energy Label Grade3, EAC

Dedicated Software

Jump to...
  • Monitor Control Utility Screen InStyle

    Supported

Physical

Jump to...
  • Color

    Black

  • Height Adjustment Range

    5.86" (148.9mm)

  • Tilt

    35 Degree Up, 5 Degree Down

  • Swivel

    344 Degree

  • Hole Spacing (VESA Standard)

    3.93 x 3.93" (100 x 100mm)

  • Dimensions (W x H x D)

    Landscape: 28.22 x 16.82" to 22.68 x 9.05" (717.4 x 427.3mm to 576.2 x 230mm)
    Without Stand: 28.22 x 16.38 x 2.02" (717.4 x 416.3 x 51.5mm)

  • Weight

    With Stand: 24.25 lbs (11kg)
    Without Stand: 16.75 lbs (7.6kg)

  • UPC Code

    4995047051893

About Eizo EV3285

eizo

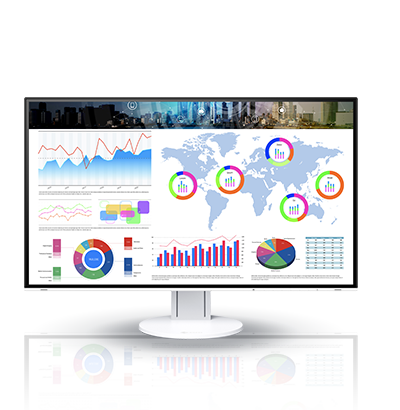

Work Four Times Bigger & Better.

Work four times bigger with this large 31.5-inch, 4K UHD (3840 x 2160) resolution monitor that gives you four times the workspace of full HD. And, work four times better with the EV3285’s four-sided frameless and fully flat design.

eizo

Quadruple The Size Of Your Work Space.

Because various applications are used at work, a high resolution monitor with a large amount of work space is ideal for improving productivity. The EV3285 supports 4K resolution, displaying four times the amount of standard full HD monitors. With 4K you can display all applications on the one screen, without needing to switch windows or scroll through screens, allowing work to progress faster.

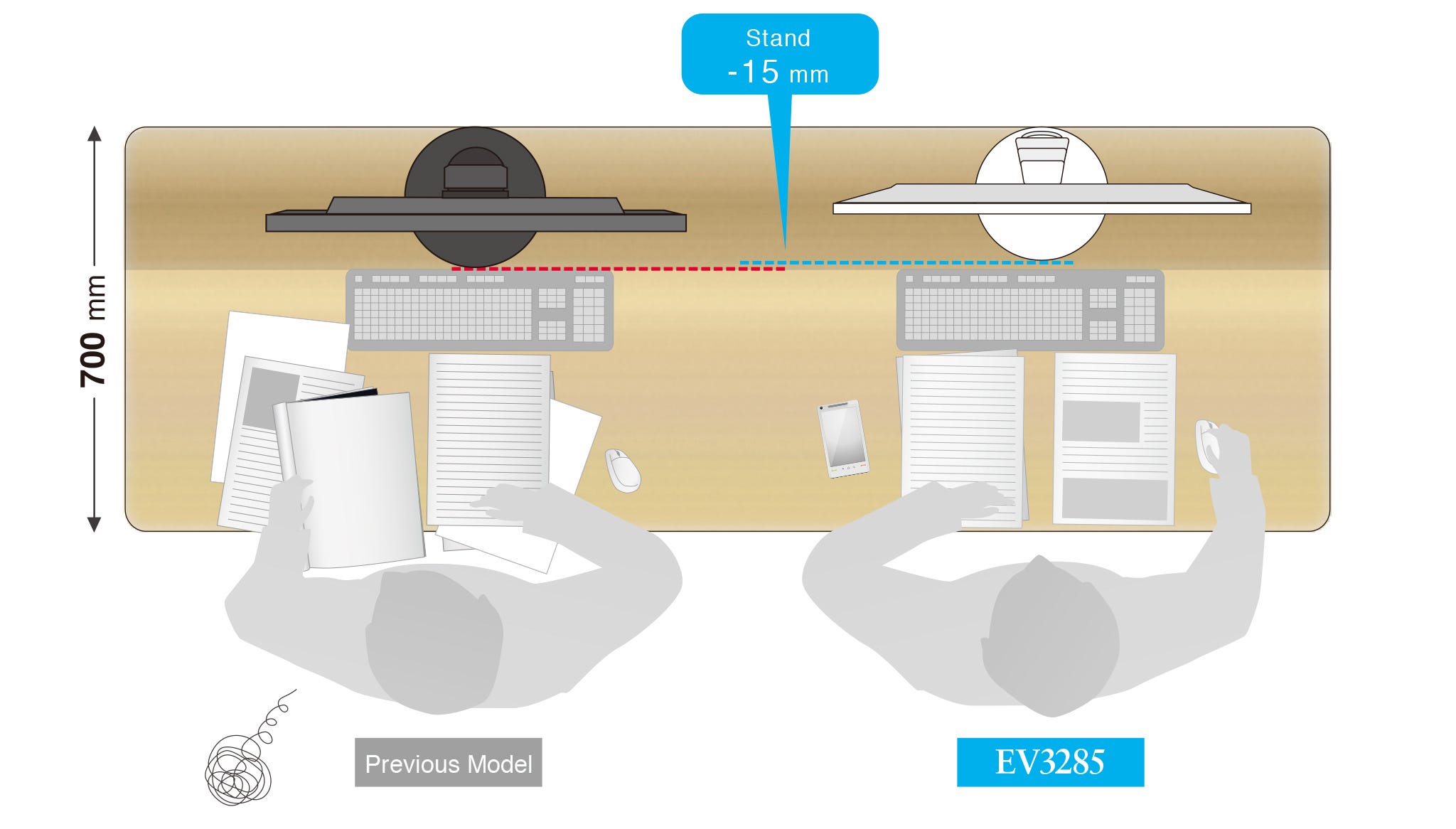

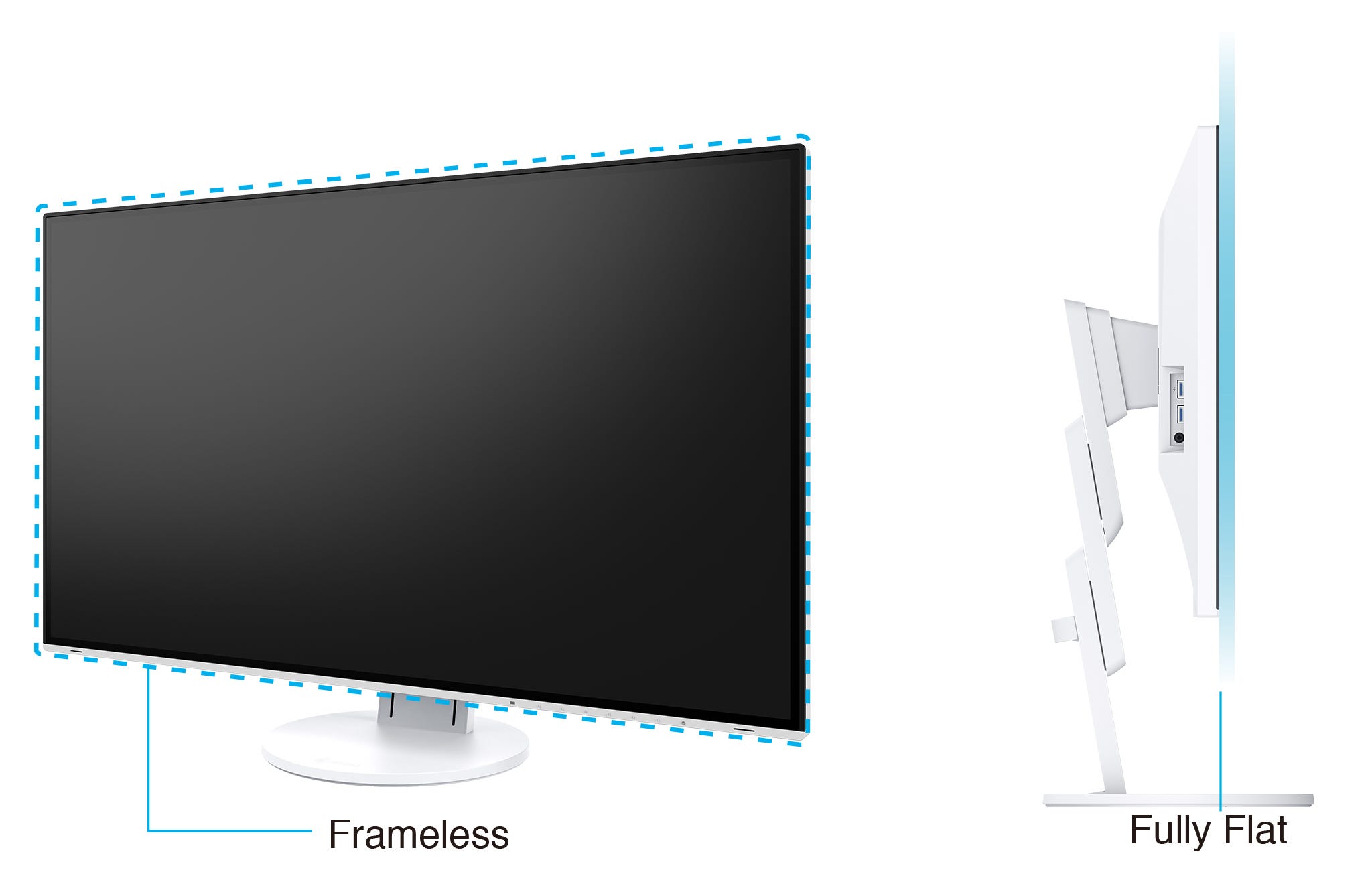

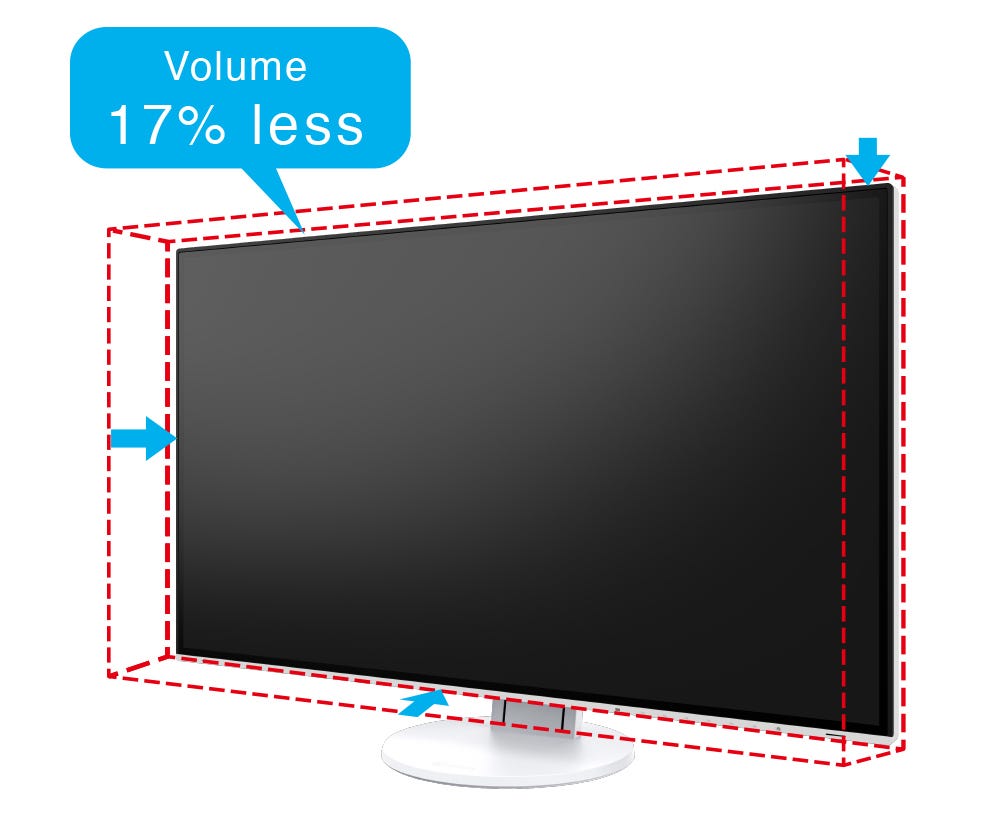

Fit 4K Resolution On Any Desk With This Fully Flat & Frameless Design.

Conventional 4K monitors are large and bulky, making them difficult to install on small desks. The EV3285 solves this by adopting a fully flat and frameless design which keeps the monitor slim and lightweight. Compared to the previous model, the EV3285 has been reduced in volume by 17%, and the stand base has decreased by 12%. With these reductions, the EV3285 can comfortably fit on any desk.

Fit 4K Resolution On Any Desk With This Fully Flat & Frameless Design.
eizo
eixo
eizo

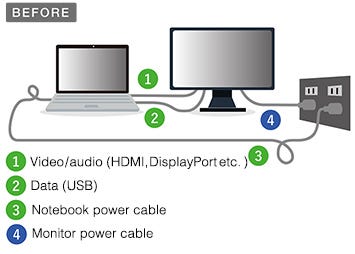

One Cable Connection.

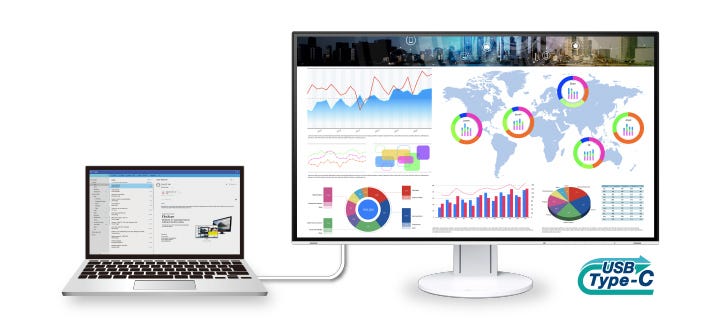

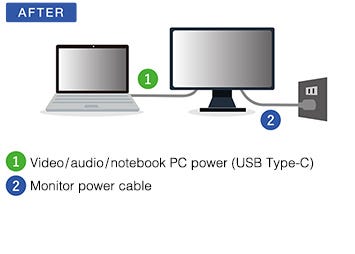

Single Cable Connection With USB Type-C.

When working on the go, a notebook PC is essential. But when work needs to be done in the office, connecting a notebook PC to an external monitor is beneficial. With USB Type-C, the EV3285 makes this new work style a breeze.

With a single USB Type-C cable you can display video, playback audio, transmit USB signals, and supply up to 60W of power to attached devices such as smartphones and notebooks. What’s more, it has an internal power unit so no external AC adapter is required.

Without worrying about your notebook’s battery level, you can simple plug it in and begin working immediately on a large external screen. A keyboard & mouse can be connected to the monitor and used instantly once the notebook is plugged in with USB Type-C.

eizo
eizo
eizo

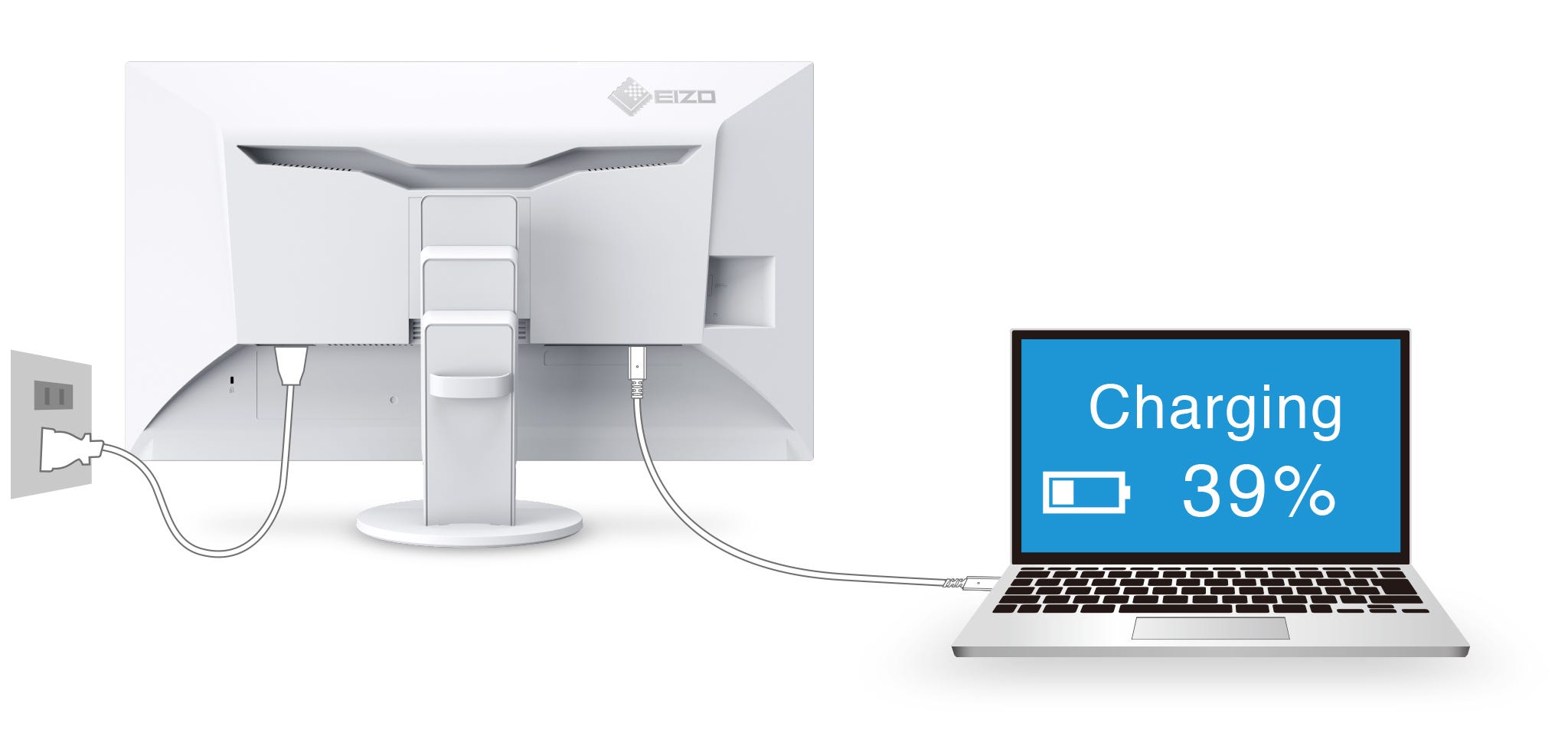

60 W Power Supply For Use With High-End Notebooks.

The USB Type-C terminal supplies up to 60 watts of power making it ideal for use with XPS, MacBook Pro, and other high-end notebooks.

Eizo
eizo

Auto Brightness Control.

To prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occurs throughout the day and automatically adjusts the screen to the ideal brightness level.

eizo

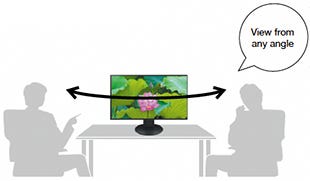

Clear View From All Angles.

The monitor uses an LED-backlit IPS (in-plane switching) LCD panel with 178° viewing angle that minimizes color shift and contrast changes when viewing the screen at an angle. This means that two people sitting at the one computer can easily see the screen with high image quality.

eizo

Reduce Blue Light By 80%.

In the visible light spectrum, blue light has wavelengths adjacent to ultraviolet light. Compared to the factory preset setting of 6500 K of typical LCD monitors, Paper Mode is closer to the spectral distribution with long reddish wavelengths so it reduces the amount of blue light, a cause of eye fatigue, and helps prevent eyestrain when reading documents. When used in conjunction with Auto EcoView dimming function, blue light can be reduced by as much as 80%.

eizo

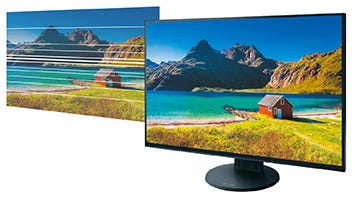

Flicker-Free Viewing.

Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker on their screen which causes eye fatigue. The FlexScan EV3285 utilizes a hybrid solution to regulate brightness and make flicker unperceivable without any drawbacks like compromising color stability – even on low brightness settings.

ezio

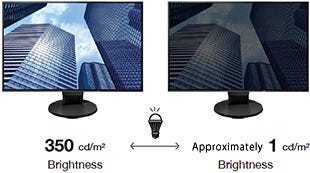

Minimum Brightness Of Approximately 1 cd/m2

In a dimly-lit work environment, a monitor with low brightness settings is more comfortable to use. With its LED backlight, the monitor is adjustable to approximately 1 cd/m² which is less than 1% of the maximum.

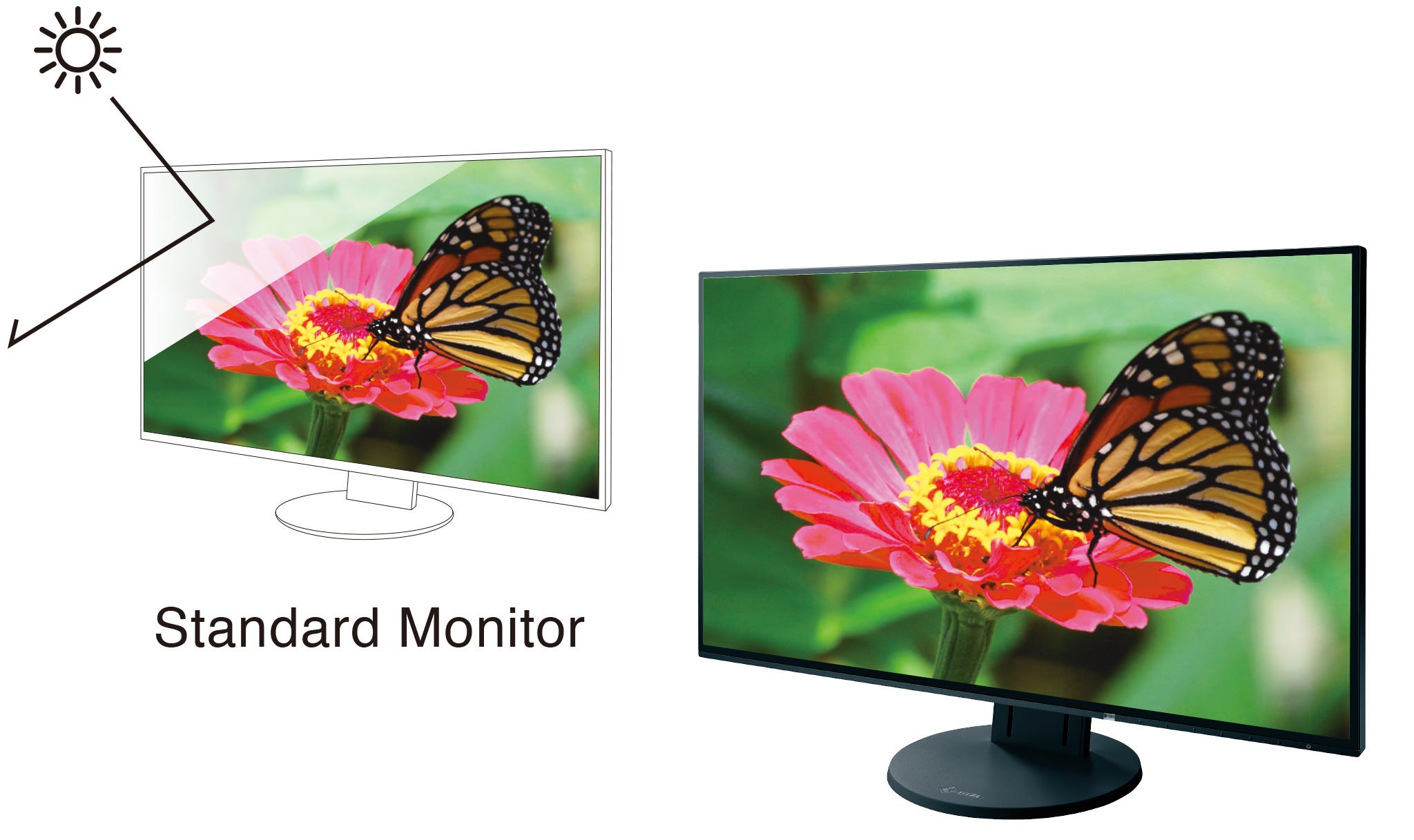

Non-Glare Panel.

Non-Glare Panel.

A non-glare panel reduces eye fatigue by dissipating reflective light that would otherwise make the screen difficult to view from different positions.

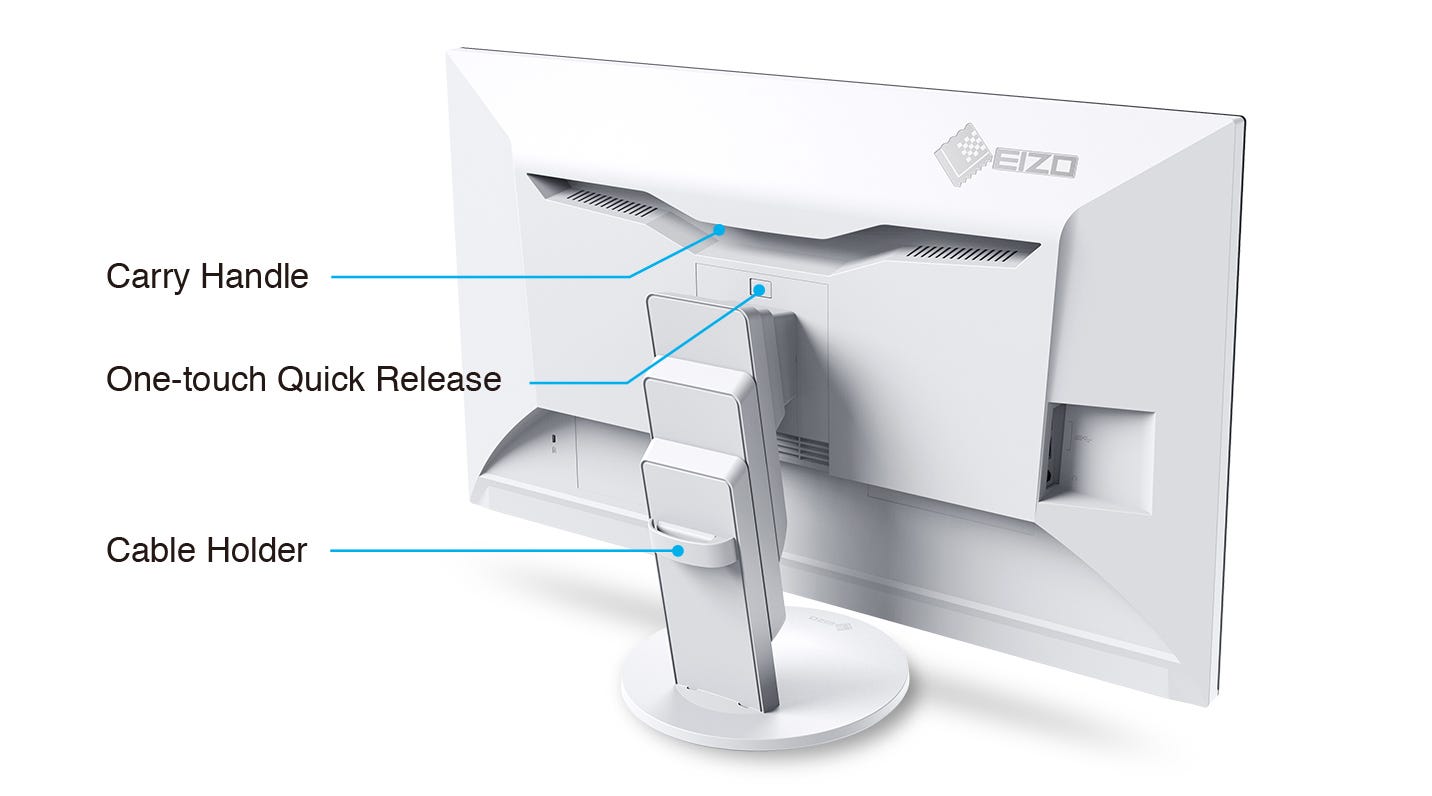

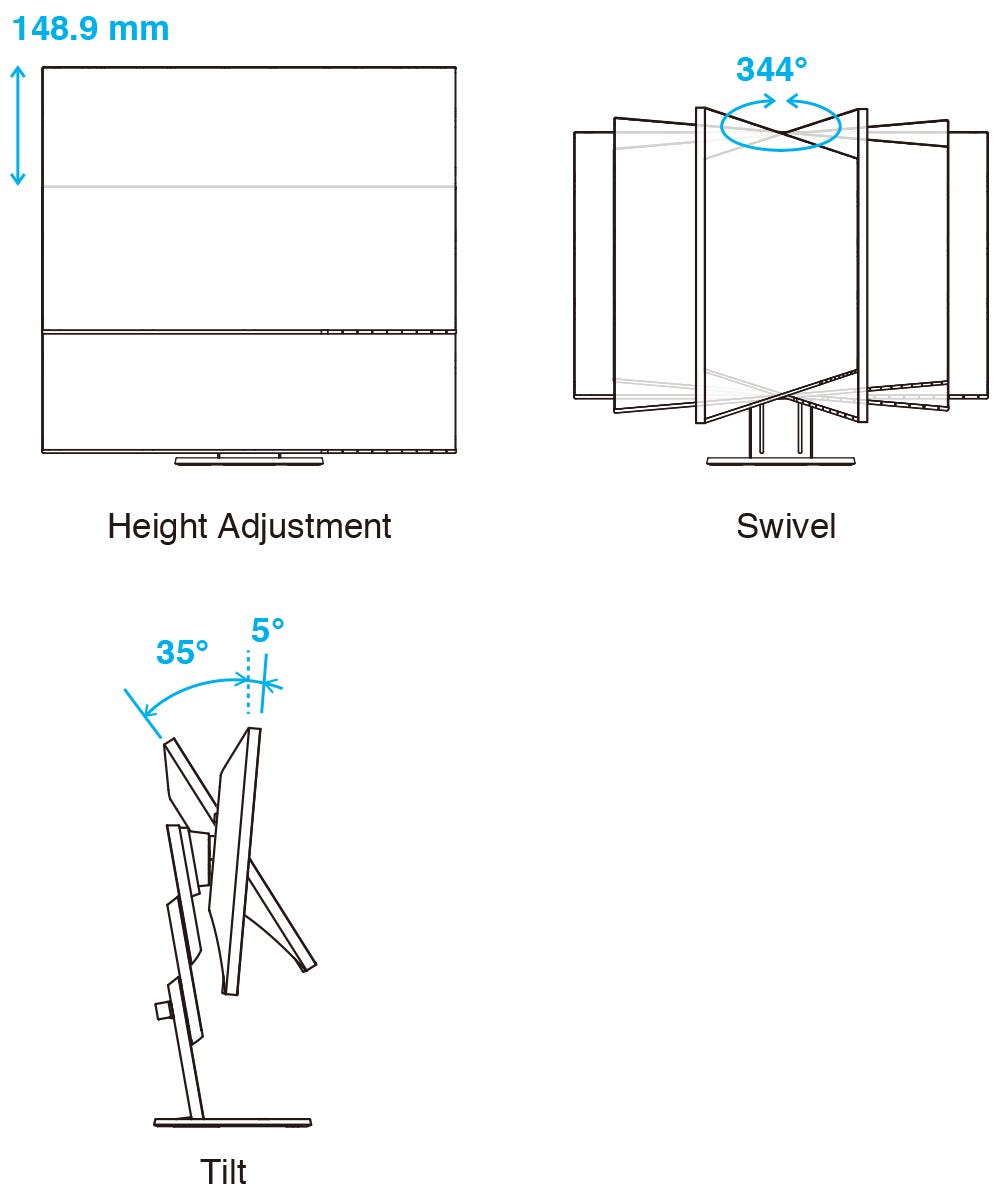

Versatile Stand.

Versatile Stand.

The stand features height adjustment, tilt, and swivel, while saving space and remaining stylish. Quickly and smoothly adjust your monitor to the perfect position.

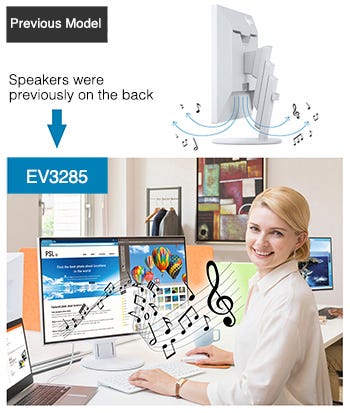

Front-Facing Speakers.

Front-Facing Speakers.

The EV3285 has speakers incorporated into the minimalist front bezel, ensuring that sound is focused on the user and not on people behind the monitor.

Intelligent Software To Work Better.

Screen InStyle

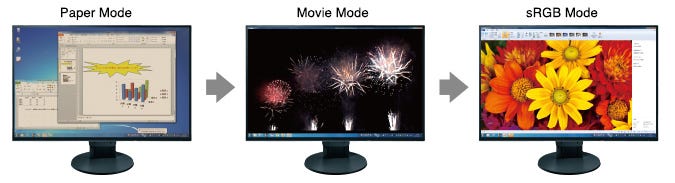

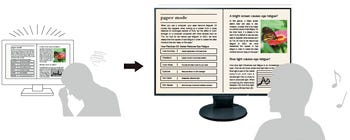

Auto Color Mode.

Use the Auto Color Mode to assign a color mode to turn on when using specific applications such as those for writing documents, photo viewing, creating illustrations or watching movies. When an application is opened the screen will automatically switch to the assigned color mode, making manual switching unnecessary.

eizo

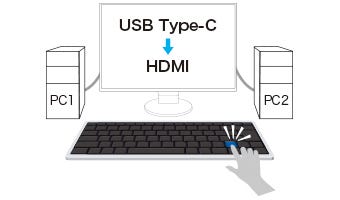

Hotkey Assignment.

When you have two PCs connected to your monitor, switch between them with just your keyboard. Even when using picture by picture, signals can be switched quickly and easily.

eizo
eizo

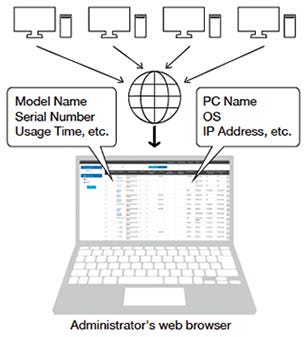

Effectively Monitor Asset Management.

With Screen InStyle Server receive information such as the model name and serial number of any monitor connected to your network. Additionally, see information from the computer that each monitor is connected to, such as the OS, IP address and computer name.

eizo

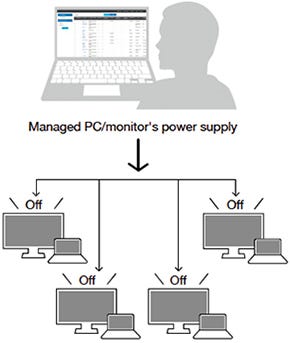

Manage Multiple Monitors From One Location.

Control multiple monitors' settings such as color mode, brightness, and eco functions from a remote location. Furthermore, prevent unintended setting changes by locking the operation switch.

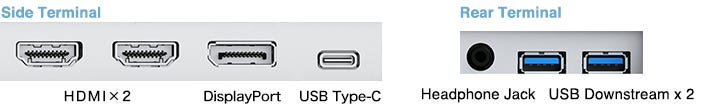

USB Type-C, DisplayPort, HDMI x 2.

One USB Type-C terminal, one DisplayPort input and two HDMI inputs compatible with 4K / 60p are installed. The USB Type-C terminal is convenient for connecting a notebook computer because it is easy to attach and detach the cable and can also supply power. All input terminals support 4K / 60p, and animation is displayed smoothly.

eizo
eizo

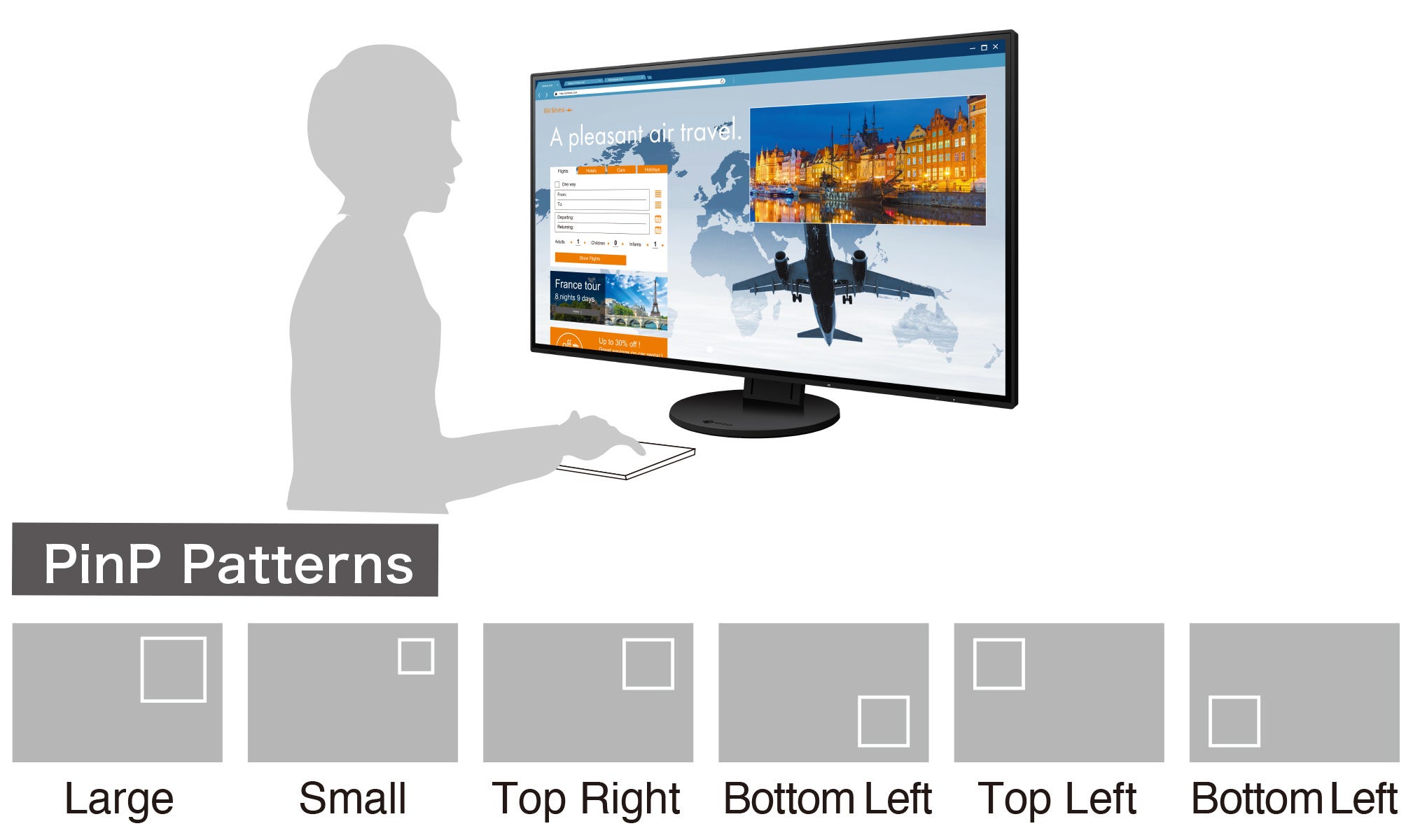

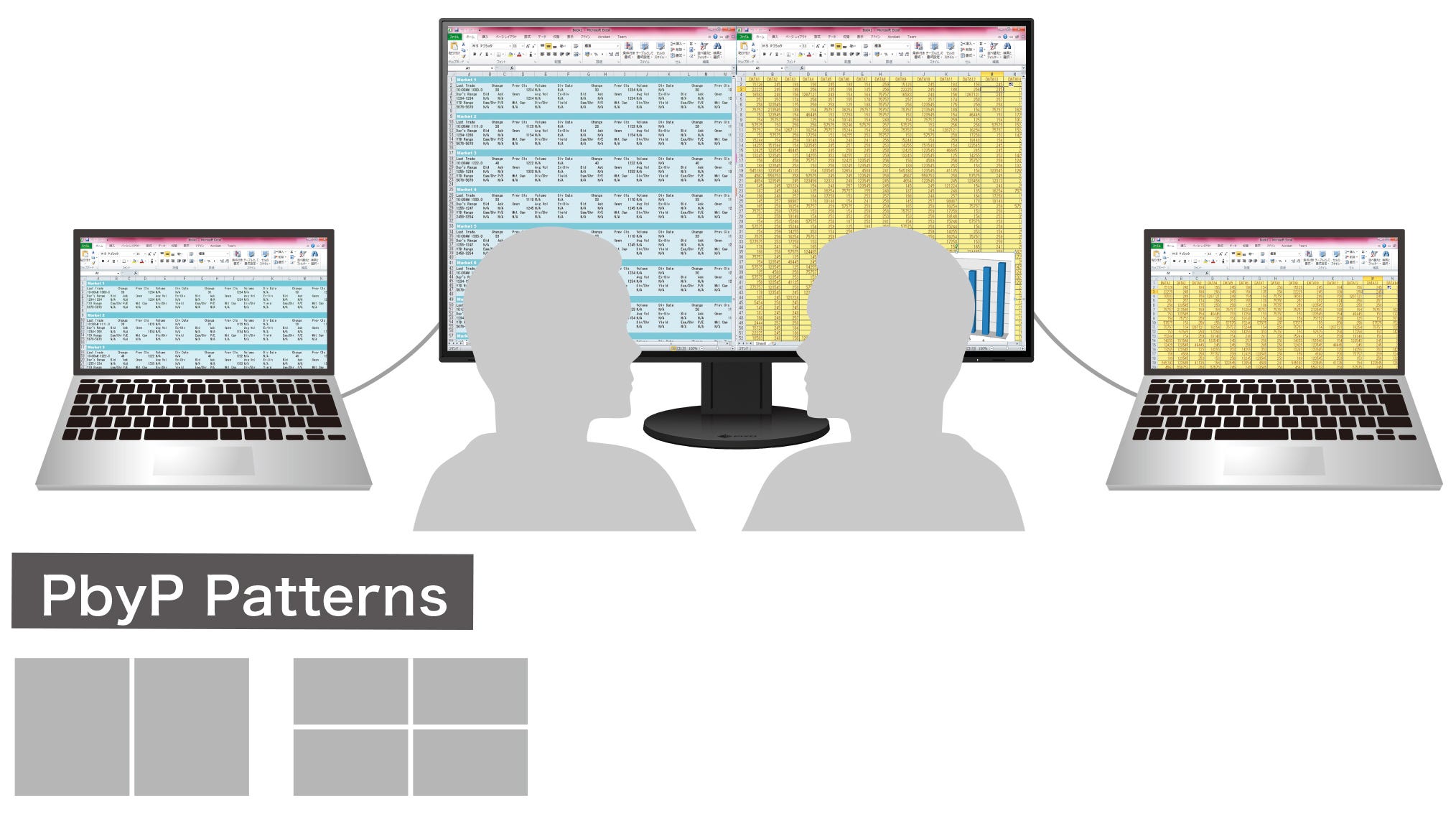

Conveniently Display Multiple Inputs With Picture-by-Picture & Picture-in-Picture.

eizo

With Picture-by-Picture (PbyP) and Picture-inPicture (PinP) you can view data from two input sources at once such as a Windows and a Mac computer with no distracting bezel in between.

eizo

This is useful for meetings where two different people’s meeting materials can be shown together on the one screen.

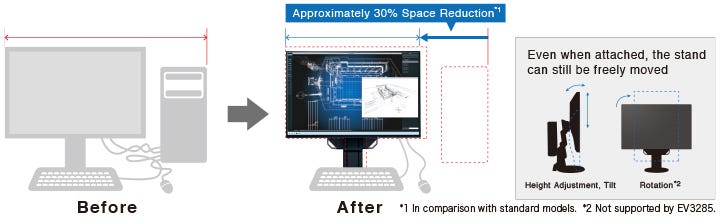

Free Up Your Workspace with a Stand Bracket

The PCSK-03 is a VESA-compliant bracket for easily mounting a client terminal such as a thin client or mini PC to the back of the monitor's stand. The space the client terminal previously occupied is now freed up so you can make better use of your desktop. Even with the client terminal attached you can adjust the monitor's stand freely.

eizo

Warranty Information

This product has a limited warranty of 60 months.

Product Documents

User Manual

Key Features

  • 4K UHD resolution (3840 x 2160) on a 31.5-inch wide screen for enhanced productivity
  • Ultra-slim, frameless design with FlexStand for easy adjustment and space-saving setup
  • Integrated front-facing speakers for focused, high-quality audio
  • Single cable connection with USB Type-C for video, audio, data transfer, and power supply
  • Advanced eye comfort features including Auto Brightness Control and blue light reduction
  • Intelligent software features like Auto Color Mode and Hotkey Assignment for improved workflow

What's in the box:

  • EV3285 4K Ultra-Slim Frame 31.5 " Wide Screen IPS LED Monitor
  • FlexStand
  • HDMI Cable
  • DisplayPort Cable
  • USB 3.1 Gen 1 Type-C Cable
  • Power Cable
  • Cable Cover
  • 4x VESA Mounting Screw
  • Eizo 5 Year Limited Warranty
