What is the EyeCare mode on the FlexScan S1703 monitor?

The EyeCare mode on the FlexScan S1703 monitor is a feature that reduces the screen's brightness to just 3 cd/m2. This ultra-low brightness helps prevent eye fatigue, especially in dimly-lit environments.

What is the Paper Mode on this monitor?

Paper Mode is a unique feature of the FlexScan S1703 monitor that adjusts the brightness, contrast ratio, and color temperature to simulate the look of printed paper. This mode makes reading digital documents and ebooks more comfortable and reduces eye strain.

What is 10-Bit Gamma Correction in the FlexScan S1703 monitor?

The 10-Bit Gamma Correction technology in the FlexScan S1703 monitor ensures precise color representation. It converts the 8-bit PC data to 10-bit, assigns the ideal gamma values, and then returns the data to 8-bit format for display.

What is the Auto EcoView function on this monitor?

The Auto EcoView function on the FlexScan S1703 monitor is a sensor that measures ambient light and optimizes the screen's brightness to a level akin to viewing a sheet of paper under typical office lighting conditions. It helps reduce eye strain and cuts power consumption by up to 50%.

Does the FlexScan S1703 monitor have built-in speakers?

Yes, the FlexScan S1703 monitor comes with built-in speakers. This feature eliminates the need for external speakers and provides a seamless audio-visual experience.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Eizo FlexScan S1703 Specifications

Cabinet Color

Cabinet Color

Jump to...
  • Cabinet Color

    Black

  • Type

    TN

  • Backlight

    LED

  • Size

    17" (43cm) (432 mm diagonal)

  • Native Resolution

    1280 x 1024 (5:4 aspect ratio)

  • Viewable Image Size (H x V)

    13.30 x 10.64" (337.92 x 270.336mm)

  • Pixel Pitch

    0.264 x 0.264mm

  • Display Colors

    16.77 million from a palette of 1.06 billion

  • Viewing Angles (H / V, typical)

    170 Degree , 160 Degree

  • Brightness (typical)

    250 cd/square m

  • Contrast Ratio (typical)

    1000:1

  • Response Time (typical)

    5 ms (black-white-black)

Video Signals

Jump to...
  • Input Terminals

    D-Sub mini 15 pin, DVI-D 24 pin (with HDCP)

  • Digital Scanning Frequency (H / V)

    31 - 64 kHz, 59 - 61 Hz (VGA Text: 69 - 71 Hz)

  • Analog Scanning Frequency (H / V)

    31 - 80 kHz, 50 - 75 Hz

  • Sync Formats

    Separate, Sync on green

  • Speakers

    0.5 W + 0.5 W

  • Input Terminals

    3.5 mm stereo jack

  • Output Terminals

    3.5 mm headphone jack

  • Sound Adjustment

    Volume

  • Power Requirements

    AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz

  • Maximum Power Consumption

    25 W

  • Typical Power Consumption

    9 W

  • Power Save Mode

    Less than 0.5 W

  • Power Management

    Power Save (VESA DPM and DVI DMPM), Eco Timer

Features & Functions

Jump to...
  • Preset Modes

    FineContrast (Text, sRGB, EyeCare, Paper, Custom)

  • Auto EcoView

    Yes

  • OSD Languages

    English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish

  • Others

    Screen Adjustment (Clock, Phase, Position, Range (Auto), Smoothing (5 stages), Color Adjustment (Brightness, Contrast, Temperature, Gain, Reset), Signal Switching, Power Indicator, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Position, Adjustment Lock, DDC/CI Lock, Reset

Environmental

Jump to...
  • Operating Temperature

    41 to 95 Degree F (5 - 35 Degree C)

  • Operating Humidity

    20 - 80 % (R.H., non condensing)

  • Certifications & Standards

    TCO Displays 6.0, EPEAT Gold (US), TUV/Ergonomics, TUV/GS, RCM, CE, CB, cTUVus, FCC-B, Canadian ICES-003-B, TUV/S, VCCI-B, EPA Energy Star, RoHS, WEEE, China RoHS, CCC

Physical

Jump to...
  • Height Adjustment Range

    With Height Adjustable Stand: 100 mm

  • Tilt

    With Height Adjustable Stand: 30 Degree Up, 0 Degree Down
    With Tilt Stand: 30 Degree Up, 5 Degree Down

  • Swivel

    With Height Adjustable Stand: 35 Degree Right / 35 Degree Left

  • Pivot

    With Height Adjustable Stand: 90 Degree

  • Hole Spacing (VESA Standard)

    100 x 100mm

  • Dimensions (W x H x D)

    Landscape
    With Height Adjustable Stand: 14.44 x 15.41 to 19.35 x 8.07" (367 x 391.5 to 491.5 x 205mm)
    With Tilt Stand: 14.45 x 15.12 x 7.40" (367 x 384 x 188mm)
    Without Stand: 14.45 x 11.96 x 2.32" (367 x 304 x 59mm)

  • Weight

    With Height Adjustable Stand: 12.1 lb (5.5kg)
    With Tilt Stand: 9.7 lb (4.4kg)
    Without Stand: 7.9 lb (3.6kg)

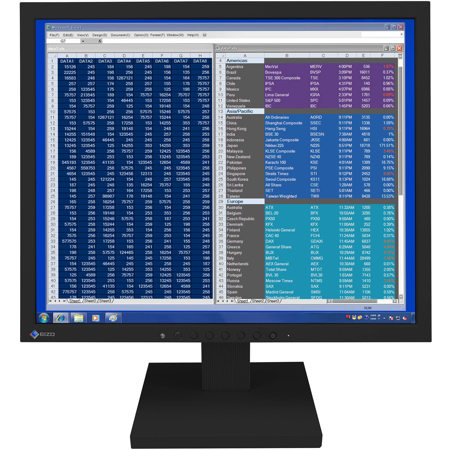

About Eizo FlexScan S1703

Under the umbrella of high-tech, eco-friendly monitors, the FlexScan S1703 17" WLED 5:4 Eye Fatigue Reduction Monitor stands out with its impressive features and stylish black design. This versatile monitor is equipped with built-in speakers, eliminating the need for external ones and providing a seamless audio-visual experience.

The FlexScan S1703 is a perfect choice for corporate offices seeking an energy-efficient 17-inch square monitor with a 5:4 aspect ratio. Its LED backlight not only conserves energy but also reduces eye fatigue, making it an ideal choice for long working hours.

One of the key features of this monitor is its EyeCare mode, which minimizes screen brightness to a mere 3 cd/m2. This ultra-low brightness setting is particularly beneficial in dimly-lit environments like CAD studios, helping to prevent eye fatigue and boost productivity.

The monitor also features a unique Paper Mode, which adjusts the brightness, contrast ratio, and color temperature to closely simulate the look of printed paper. This mode is designed to reduce eye strain and stress associated with viewing digital documents and ebooks for extended periods.

In terms of color accuracy, the FlexScan S1703 boasts a 10-Bit Gamma Correction technology. This feature ensures precise color representation by converting the 8-bit PC data to 10-bit, assigning the ideal gamma values, and then returning the data to 8-bit format for display.

The monitor also supports both DVI-D and D-Sub mini 15-pin inputs, allowing for quick switching between digital and analog graphics boards. Additionally, the monitor's Auto EcoView function optimizes screen brightness based on ambient light, further reducing eye strain and cutting power consumption by up to 50%.

The FlexScan S1703 is not only designed for comfort and efficiency but also with an eye on environmental impact. Its LED backlight uses only 9 watts during typical operation and contains no mercury, minimizing its environmental footprint.

EIZO's commitment to quality is evident in the FlexScan S1703, which is manufactured in-house, ensuring stringent quality control. The monitor also meets international labels for ergonomics and energy savings, including TCO Certified Displays 6.0, EPA Energy Star, and EPEAT Gold.

In summary, the FlexScan S1703 17" WLED 5:4 Eye Fatigue Reduction Monitor with built-in speakers is a stylish, high-tech, and eco-friendly solution for all your computer monitoring needs. Its high resolution of 1280 x 1024 delivers clear and detailed images, while its eye fatigue reduction features ensure a comfortable viewing experience.

Eizo FlexScan S1703 Features

  • Preset Modes for Optimum Viewing
  • Prevents Eye Fatigue in Dimly-Lit Offices
  • Closely Simulates Documents and Books
  • Color Temperature, Brightness and the Effect on Blue Light
  • Optimized Brightness with Auto EcoView
  • Digital and Analog Inputs
  • 10-Bit Gamma Correction
  • Built-In Speakers
  • Energy Savings across the Network
  • LED Backlight
  • Commitment to Quality
  • Compliance with International Labels

Warranty Information

This product has a limited warranty of 60 months.

Product Documents

User Manual

Key Features

  • Eco-friendly 17" WLED monitor with 5:4 aspect ratio and energy-saving LED backlight
  • Built-in speakers and headphone jack for integrated audio-visual experience
  • EyeCare mode and Paper Mode for reduced eye fatigue and comfortable document viewing
  • 10-Bit Gamma Correction for precise color accuracy and image clarity
  • Versatile connectivity with DVI-D and D-Sub inputs for digital and analog graphics boards
  • Auto EcoView function optimizes brightness, cutting power consumption by up to 50%

What's in the box:

  • FlexScan S1703 17 " WLED 5:4 Eye Fatigue Reduction Monitor
  • AC Power Cord
  • Signal Cables (D-Sub to D-Sub/DVI-D to DVI-D)
  • Audio Cable
  • Setup Guide
  • CD-ROM (PDF User's Manual/ScreenManager Pro for LCD [DDC/CI]/EIZO ScreenSlicer Software)
  • 4 Screws for Mount Option
  • Eizo 5 Year Limited Warranty
