Elinchrom ELB 400 Hi-Sync To Go Kit, Quadra HS Head, Power Pack and Reflector
See all Elinchrom items

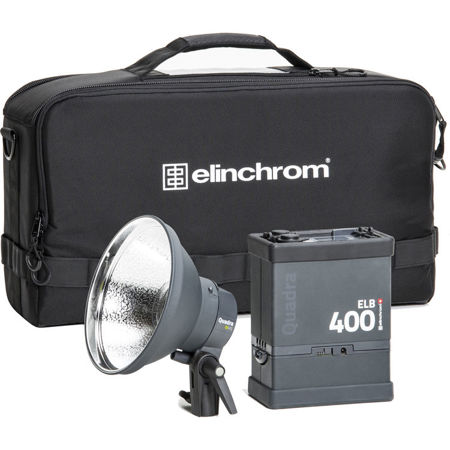

Elinchrom ELB 400 Hi-Sync To Go Kit with Quadra HS Head, Power Pack and Quadra Grid Reflector

SKU: EL104181

This item is no longer available.

Recommended Alternatives

Elinchrom ELB 500 TTL To Go Kit: Picture 1 regular
Elinchrom ELB 500 TTL To Go Kit
$2,652.00$2,039.99
Elinchrom Quadra HS: Picture 1 regular
Elinchrom Quadra HS 400w/s Flash Head
$699.94$559.95
See More Recommendations
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2024-02-09T13:37:35

Rated 5 out of 5

Dead battery b

The used department is great, but I'm returning this due to a dead battery.

Terry E.

2018-01-14T12:35:58

Rated 5 out of 5

Big Things Come in Small Packages

What an awesome piece of equipment! Lightweight and powerful, what a thrill to use.

KYLE J.

2017-06-29T15:56:30

Rated 5 out of 5

Fantastic

I've used the older Quadra A-head system for a few years and debated about upgrading. I upgraded for Elinchrom's hi-sync system. The unit is a bit smaller, lighter and a better user interface now. This thing really rocks, I love it. For me it's a great light because I use this instead of speed lights the majority of the time. Plus, you're now in the Elinchrom system so you can use the fantastic modifiers they make and you have a reliable radio control.

MATTHEW H.

Elinchrom ELB 400 Hi-Sync Specifications

  • ELB 400: Maximum Watt/Seconds

    424

  • ELB 400: Guide Number

    With Quadra Pro head, 48 deg. reflector, ISO 100 at 3.3' (1.0m)
    100% Power: f/64.5
    66% Power: f/45.8
    33% Power: f/32.8

  • ELB 400: Flash Variability

    6.9 Stops
    Full to 1/32 power
    Full, 1/2 and 1/10th stop increments

  • ELB 400: Output

    Outlet A 100%: 21-424 Ws
    Outlet A 66%: 14-289 Ws
    Outlet B 33%: 7-140 Ws

  • ELB 400: Recycle Time

    Fast 100% Outlet A: 0.3 - 1.6 sec., Outlet B: 0.17 - 0.7 sec
    ECO: Outlet A: 0.5 - 3.5 sec., Outlet B: 0.3 - 1.1 sec.

  • ELB 400: Flash Duration

    Flash duration at t0.5, Quadra Pro/Action flash head:
    Outlet A 100%: 1/1,200 sec. / 1/2,800 sec.
    Outlet B 33%: 1/3,000 sec. / 1/5,700 sec.
    Outlet A+B 100%: 1/1,500 sec. 1/4,000 sec.

  • ELB 400: Distribution

    Asymmetrical 2:1

  • ELB 400: Color Temperature

    At Max. Power with Quadra head: 5500 K

  • ELB 400: Auto Dump

    Yes

  • ELB 400: Modeling Light

    On, off, programmable timer and continuous

  • ELB 400: Triggering

    Sync cord (3.5mm), optical slave
    Receiver range: Up to 393' (120m) outdoors, 131' (40m) indoors

  • ELB 400: Sync Voltage

    5V

  • ELB 400: Battery

    Lithium-ion 14.4V, 4.1Ah

  • ELB 400: Battery Life

    At Max. Power ECO/Fast: 350
    At Min. Power ECO/Fast: 6,000/5,500

  • ELB 400: Charging

    Recharging Time: 90 minutes

  • ELB 400: Flash Ready Indicator

    Audible beep, LED visual

  • ELB 400: Voltage Stabilization

    Yes, +/- 0.5%

  • Head Cable: Length

    8' (2.44m)

  • ProTec Bag: Material

    Nylon

  • ProTec Bag: Type of Closure

    YKK zippered

  • ProTec Bag: Carrying/Transport Options

    Hand strap, adjustable shoulder strap

  • Dimensions

    ELB 400 With Battery: 7.28 x 5.90 x 3.34" (18.49 x 14.99 x 8.48cm)
    ProTec Bag: 23.8 x 8.5 x 12.3" (60.45 x 21.59 x 31.24cm)

  • Weight

    ELB 400 With Battery: 2.79 lbs (1.27kg)
    ELB 400 Without Battery: 1.6 lbs (0.73kg)
    ProTec Bag: 6.8 lbs (3.08kg)

  • UPC Code

    7630006319245

About Elinchrom ELB 400 Hi-Sync

FEATURED REVIEWS

Fantastic

By MATTHEW H.

I've used the older Quadra A-head system for a few years and debated about upgrading. I upgraded for Elinchrom's hi-sync system. The unit is a bit smaller, lighter and a better user interface now. This thing really rocks, I love it. For me it's a great light because I use this instead of speed lights the majority of the time. Plus, you're now in the Elinchrom system so you can use the fantastic modifiers they make and you have a reliable radio control.

Dead battery b

By Terry E.

The used department is great, but I'm returning this due to a dead battery.

This set includes the new Transmitter Plus which offers simplicity, durability and reliability with the range now extended up to 200 m (656'). Choose the Quadra Action head set when flash duration is crucial and you want to freeze your subject's motion within the limits of the camera flash sync (X-sync) speed. The new ProTec Location bag safely carries the ELB 400 and accessories and it can be can customized and reconfigured to fit the equipment.

The ELB 400 is the most complete and portable flash system. Specifically designed for photographers who like to travel light but packing enough power to overpower the sun. The best flash duration is at full power where you need it when you are out on a sunny location.

1 Light Battery Pack
• 424 Ws in the palm of your hand, for only 2 kg
• Fast recycling time, 1.6 seconds at full power
• Lifetime battery, 350 flashes at full power

Control Display
• OLED display
• Intuitive control

Pro Head
The Pro flash head offers a slower flash duration compared to the Action head but it is faster compared to the HS head. At full power on an ELB 400, the Pro head offers at t0.5 a flash duration of 1/1200th second. For Still-Life and portraits or where the subject is not moving, this is a fast enough flash duration for sharp images. But if the subject is moving then this flash duration will not be fast enough to stop the motion of the subject at normal flash sync shutter speeds, i.e. at 1/250th second or below.

Large sensors, with mechanical parts for the shutter and the mirror, as well as the camera firmware and the chosen shutter speed will affect the results. Mirrorless cameras can handle Hi-Sync very well. If you don't shoot action and only want to buy one flash head that can work with Hi-Sync to some degree and also create nice sharp portraits, then the Pro head is a good option.

Location Bag
This case is an ideal fit to portable flash solutions such as the ELB 400 or previous Quadra series. Supplied with rain protective cover, adjustable and comfortable shoulder strap, 4 vertical and 4 horizontal dividers for exibility and 4 hook & loop fastener straps to securely attach tripods or umbrellas.

Elinchrom ELB 400 Hi-Sync Features

  • ELB 400: Flash Ready Indicator Audible beep, LED visual
  • ELB 400: Voltage Stabilization Yes, +/- 0.5%
  • ProTec Bag: Carrying/Transport Options Hand strap, adjustable shoulder strap

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Elinchrom ELB 400 Quadra Battery-Powered Pack with Battery
  • Quadra HS Head
  • EL 11001 8' Head Cable for Quadra
  • Protective Cap for Quadra Head
  • 7" (17.8 cm) Grid Reflector for Quadra Heads
  • 15.75" Sync Cable 3.5mm to Amphenol
  • ProTec Location Bag
  • Elinchrom 2 Year Warranty for ELB 400 Battery Pack / Sync Cable and Quadra HS Head
  • Elinchrom 1 Year Warranty for Protective Cap / Grid Reflector and ProTec Bag
