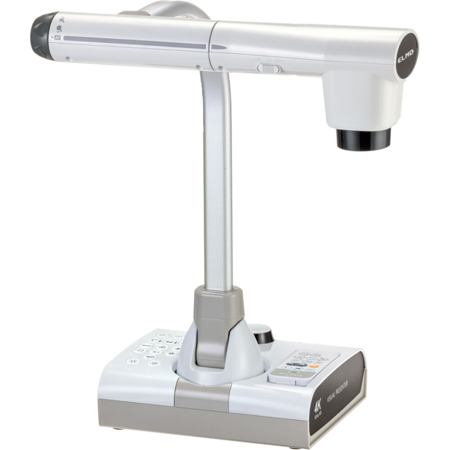

Elmo TT-12G 4K Ultra HD Interactive Document Camera with Elmo Cast Wireless Receiver

SKU: EL138072 MFR: 1380-72
Earn VIP Reward Points

Key Features

  • Experience stunning clarity with 4K Ultra HD image quality, perfect for detailed presentations and engaging lessons.
  • Enjoy seamless wireless connectivity with the included Elmo Cast Receiver, enhancing collaboration in any meeting space.
  • Benefit from exceptional brightness and vivid colors, ensuring your content is always visible and impactful for all viewers.
  • Its intuitive design and auto-focus features guarantee ease of use, making setup and operation simple for everyone.
  • The durable construction of this interactive document camera ensures long-lasting reliability for consistent performance.
  • Effortlessly share documents and objects with superior portability, ideal for dynamic educational and business environments.
See More Product Details
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Elmo TT-12G & Elmo Cast Specifications

Elmo Cast Receiver

Elmo Cast Receiver

Jump to...
  • Color

    Black

  • Communication range

    Approx. 98' (30m) (Depending on usage conditions)

  • Connections

    1x HDMI 1.4 Type A Output
    1x USB Type-C (for Power Input)

  • Dimensions (W x D x H)

    External: 3.8 x 1.3 x 0.4" (97 x 32 x 11mm)

  • DRAM

    1GB DDR3

  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Output Resolution

    4096 x 2160 at 24 fps
    3840 x 2160 at 30/25/24 fps
    1920 x 1080 at 60/50/24 fps
    1280 x 720 at 60/50 fps

  • Power Consumption

    Standby: 3 W
    Typical: 6 W

  • Power Supply

    5 VDC, 1.5 A

  • Protocol

    TCP/IP, SNMP

  • Raster

    720p, 1080p Progressive 60Hz Display Supported 720p, 1080p Interlace-Method Not Supported

  • SoC

    Yes

  • Weight

    4.23 oz (120g)

  • Wi-Fi

    802.11ac 5 GHz Wi-Fi with 2T2R

TT-12G Document Camera: Adjustments

Jump to...
  • Aspect Ratio

    16:9
    4:3

  • Focal Length

    50 to 200mm to Infinity

  • Image Rotation

    0 Degree , 90 Degree , 180 Degree , 270 Degree

TT-12G Document Camera: Compatibility

Jump to...
  • OS Compatibility

    Windows
    macOS

  • Supported File Formats

    JPG, MP4

  • Video System

    NTSC

TT-12G Document Camera: Convenience

Jump to...
  • Built-In LED Lighting

    1 (Head)

  • Built-In Mic

    Yes

  • Focus Modes

    Auto, Manual, Zoom

  • Remote Control

    Yes

  • Whiteboard Compatibility

    Yes

TT-12G Document Camera: Electrical

Jump to...
  • AC Input Power

    100 to 240 VAC, 50 / 60Hz

  • DC Input Power

    12 VDC

  • Power Consumption

    21.6 W

  • Power Source

    Power Adapter

TT-12G Document Camera: General

Jump to...
  • Annotation

    Yes

  • Audio I/O

    1x 1/8" (3.5mm) Line, Microphone Input

  • Capture Area

    18.5 x 10.2" (46.9 x 25.9cm) (16:9)
    16.9 x 12.6" (43 x 31.9cm) (4:3)

  • Horizontal Resolution (TV Lines)

    1600 TVL

  • Media Card Slots

    SD

  • Other I/O

    1x USB-C 2.0
    1x USB-A 2.0

  • Video I/O

    1x HDMI Input
    1x HD15 Input
    1x HDMI Output
    1x HD15 Output

  • Wireless

    Miracast via USB Dongle Connected to Host Computer
    Wi-Fi Integrated

TT-12G Document Camera: Physical

Jump to...
  • Dimensions

    Folded: 7.7 x 18.8 x 11.6" (195 x 478 x 294mm)
    In-Use: 13.7 x 17.1 x 14.8" (349 x 435 x 377mm)

  • Weight

    6.6 lbs (3kg)

TT-12G Document Camera: Sensor

Jump to...
  • Aperture

    f/3.2 to 3.8

  • Effective Pixels

    3840 x 2160 (16:9)
    3520 x 2640 (4:3)

  • Frame Rate

    1920 x 1080 @ 60 fps
    1920 x 1080 @ 30 fps
    1280 x 720 @ 60 fps
    1280 x 720 @ 30 fps

  • Output Resolution

    3840 x 2160
    2840 x 1536
    1920 x 1080
    1280 x 960
    1280 x 720
    1024 x 768
    640 x 480

  • Sensor

    1/2.3" CMOS

  • Sensor Resolution

    Effective: 8.3 Megapixel (3840 x 2160)

  • Zoom

    12x (Optical)
    16x (Digital)

About Elmo TT-12G & Elmo Cast

- TT-12G Document Camera -
New and improved with 4K Ultra HD Resolution, displaying the sharpest and most clear images in its class. See every hidden detail vividly with its 192x Total Zoom. Ergonomically designed to be flexible, show new angles while engaging with your audience. It comes with built-in Miracast for convenient wireless sharing on any display device.

192x Zoom in 4K Ultra HD
The TT-12G offers 192x digital zoom at 4K resolution, capturing video in True 4K Ultra HD at 30fps or Full HD at 60fps without any loss of quality.

Endless Connection with HDMI & RGB Passthrough
The TT-12G comes with High Speed USB 2.0 for up to 4K resolution, HDMI, and RGB/VGA output options to connect seamlessly to a wide variety of devices.

Display Wirelessly
Connection made easy with Miracast Display.


- Elmo Cast wireless receiver -
Enhance your wireless presentation capabilities and provide your audience with an experience they'll never forget. ELMO Cast effortlessly streams your multimedia presentation from any mobile device or ELMO STEM-CAM in up to 4K Ultra HD resolution.

ELMO Cast provides wireless video streaming in up to 4K Ultra HD resolution using the latest in Wi-Fi casting technology. The 5GHZ 802.11ac Wi-Fi radio with a high sensitivity 2T2R MIMO antenna offer the highest possible bandwidth. The highly efficient System on Chip (SoC) design and 1GB DDR3 memory mean a super low latency signal and minimal lag. ELMO Cast is HDMI 1.4 compliant to support 4K Ultra HD video and audio.

4K Ultra HD Multimedia Streaming
Stream your multimedia presentation from any mobile device or ELMO STEM-CAM in up to 4K Ultra HD resolution

Present From Any Mobile Device
Effortlessly present from any laptop, tablet or smartphone

Elmo TT-12G & Elmo Cast Features

  • TT-12G Document Camera
  • 192x (12x optical, 16x digital) Zoom in 4K Ultra HD
  • Endless Connection with HDMI & RGB Passthrough
  • 4K Ultra HD Resolution
  • Display Wirelessly
  • Elmo Cast Wireless Receiver
  • 4K Ultra HD Multimedia Streaming
  • Present From Any Mobile Device

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience stunning clarity with 4K Ultra HD image quality, perfect for detailed presentations and engaging lessons.
  • Enjoy seamless wireless connectivity with the included Elmo Cast Receiver, enhancing collaboration in any meeting space.
  • Benefit from exceptional brightness and vivid colors, ensuring your content is always visible and impactful for all viewers.
  • Its intuitive design and auto-focus features guarantee ease of use, making setup and operation simple for everyone.
  • The durable construction of this interactive document camera ensures long-lasting reliability for consistent performance.
  • Effortlessly share documents and objects with superior portability, ideal for dynamic educational and business environments.

What's in the box:

  • TT-12G 4K Ultra HD Interactive Document Camera
  • Elmo Cast Wireless Receiver
  • AC Power Adapter
  • Power Cord
  • USB-C to USB-A Cable
  • Remote Control with Coin Battery
  • 2x HDMI Fixture
  • 2x Cable Tie
  • USB-A to USB-C Cable
  • HDMI Cable
  • 4x Power Plug
  • AC Adapter
  • User Manual
  • Elmo 5 Year Limited Warranty
