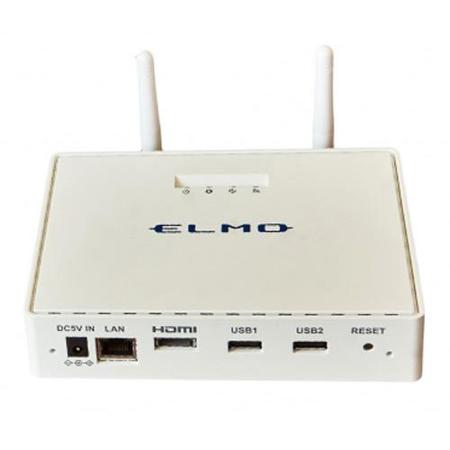

Elmo Interactive Communication Box
See all Elmo items

Elmo Interactive Communication Box

SKU: EL1396
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

Can the ELMO Interactive Communication Box connect to any tablet?

Yes, the ELMO ICB is designed to wirelessly connect with any tablet, allowing you to view ELMO document camera images.

What is the ELMO Interactive Toolbox (EIT) Software?

The ELMO Interactive Toolbox (EIT) Software is a program that works with the ELMO ICB to turn your tablet into a portable Interactive Whiteboard. It allows you to annotate, manipulate, and save content.

Do I need a wireless projector to use the ELMO ICB?

No, the ELMO ICB wirelessly projects your tablet images to a TV monitor or a projector, eliminating the need for a separate wireless projector.

How does the ELMO ICB integrate with the ELMO Document Camera?

You can connect your ELMO Document Camera to the ELMO ICB via USB. The live image from the camera will then be displayed within the ELMO Interactive Toolbox (EIT) software for easy control.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Elmo ICB Specifications

Wired LAN

Wired LAN

Jump to...

  • Interface

    1x RJ-45 port (Auto MDI/MDI-X compatible)

  • Standard

    IEEE 802.3 compliance 10BASE-T/100BASE-TX/1000BASE-T

  • Security

    MAC address filter

Wireless LAN Access Point

Jump to...

  • Interface

    802.11a/b/g/n 2Tx2R (Theoretical figure: 300Mbps)

  • Transmission

    IEEE 802.11a 5GHz (modulation method: OFDM)
    IEEE 802.11b2.4GHz (modulation method: DS-SS)
    IEEE 802.11g 2.4GHz (modulation method: OFDM)IEEE 802.11n (modulation method: OFDM)
    MIMO(Multiple Input Multiple Output)
    Aggregation features A-MPDU or A-MSDU
    HT20/HT40 mode (high-throughput mode)

  • Compatible channels

    2.4GHz band 1-13ch 5GHz band W52/W53/W56(W53/W56 compatible to DFS)

  • Electric wave output setting

    Ranging 5%-100% at 5% rate with 20 settings are possible

  • Band Control

    Comply to QoS

  • Number of units can be connected

    Max. 56 units

  • Multi SSID

    2

  • Security (Authentication)

    Open, Shared, WPA-PSK, WPA2-PSK, WPA/WPA2-PSK(MIX)mode, 802.1x, WPA-Enterprise WPA2-Enterprise, WPA/WPA2-Enterprise(MIX)mode

  • Security (Encryption)

    AES, TKIP, AUTO, WEP(64/128bit)

  • Security (others)

    SSID Confidentiality feature (stealth SSID), Privacy separator, MAC Address filter

  • Smart Wireless Setting

    Smart Wireless setting for a secondary set with pushbutton with PIN Code, External registrar compatible

Image Transmission Function

Jump to...

  • Interface

    1x HDMI port

  • Display Resolution

    Max resolution: Full HD (1920x1080)

  • Display Function

    Mirror mode (Duplication)

USB

Jump to...

  • Interface

    2x USB2.0 Port (USB Virtual Link Technology built in)
    Connectivity with Elmo document cameras (TT-12iD/TT-12i/TT-12/TT-02RX/P30HD/P100HD)

Others

Jump to...

  • Push buttons

    Two built-in
    Set: Smart Wireless Settings
    Reset: Restore Factory Settings

  • Compaible OS

    Windows 7, Windows 8, Windows 8.1

  • Compatible Software

    EIT (ELMO Interactive Toolbox)

  • Dimensions

    4.72 x 6.10 x 1.25" (120 x 155 x 32mm) (Excluding the Antennas)

  • Weight

    1.5 lb (0.68kg)

About Elmo ICB

The ELMO Interactive Communication Box (ICB) allows you to view the ELMO document camera image on any tablet wirelessly. With the ELMO Interactive Toolbox (EIT) Software, your tablet will act as a portable Interactive Whiteboard to annotate on, manipulate and save content.

Features

Teach with Freedom - Break the chains!
With the ELMO ICB you are no longer chained to the front of the classroom. Break those chains, stretch your legs, and teach freely from anywhere in the room.

Increased Mobility
The ELMO ICB enables you to wirelessly project your tablet images to a TV monitor or a projector so you can move freely in the classroom to conduct lessons with your tablet. With the ELMO ICB, you don't need an expensive wireless projector!

ELMO Integration - Connect your ELMO
Wirelessly view the live image from the ELMO Document Camera when you connect via USB to your ICB. The live image will be displayed within the ELMO Interactive Toolbox (EIT) software for easy control of your ELMO Document Camera.

Elmo ICB Features

  • Increased Mobility
  • ELMO Integration

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Increased Mobility
  • ELMO Integration

What's in the box:

  • Interactive Communication Box
  • CRI-1
  • AC Adapter
  • 2x Rubber Feet
  • CD-ROM (EIT Software)
  • User Manual
  • Elmo 1 Year Limited Warranty
