Elinchrom ELC Pro HD 500 500W/s Compact Flash Head With Accessory Bundle
See all Elinchrom items

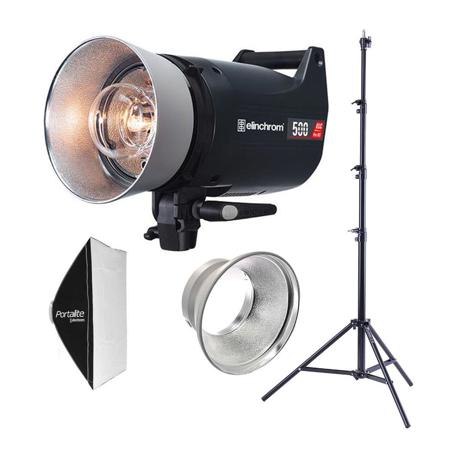

Elinchrom ELC Pro HD 500 500W/s Compact Flash Head, 5500K Color Temperature, - Bundle With Standard Reflector 21 cm, Portalite 25.5x25.5" Single Diffuser Square Softbox, Pro Air Cushioned Heavy Duty Light Stand - 9.5'

SKU: EL206131A

This item is no longer available.

Recommended Alternatives

Elinchrom RX One: Picture 1 regular
Elinchrom D-Lite RX ONE Compact with built-in Skyport
$379.95$264.95
Elinchrom RX 4: Picture 1 regular
Elinchrom D-Lite RX 4 400Ws Compact Monolight with Built-In Skyport
$641.95
Elinchrom RX 4: Picture 1 regular
Elinchrom D-Lite RX 4, 4 Softbox To Go Kit
$1,179.95
Elinchrom RX One: Picture 1 regular
Elinchrom D-Lite RX One / One Softbox To Go Kit
$859.95
See More Recommendations
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

2018-11-09T01:58:28

Rated 2 out of 5

Bad Flashpoint stand (tripod)

i received the shipment in two packages which cost me more for custom and shipper fees this is from one side , from the other side the flashpoint (stand) is ridiculous, useless and unreliable other than that the flash head is very good and a good upgrade from the rx400.

Emmad E.

2016-09-16T13:50:58

Rated 3 out of 5

I own 6 of these units and I do love the light quality and functionality of the units

I own 6 of these units and I do love the light quality and functionality of the units. I've been an Elinchrom user for about 20 years. Not till I started buying the Pro 500s and D-Lite 400s did I start having issues with the stand adaptor base from breaking or cracking. The company has always been good on sending me out replacement pieces for me to swap out, but know they are telling me to buy a third party accessory to keep this from happening. I feel like the piece on the probe is under engineered and that they are pushing off the blame.

Mike R.

2016-09-16T13:49:06

Rated 3 out of 5

stand adaptor base from breaking

I own 6 of these units and I do love the light quality and functionality of the units. I've been an Elinchrom user for about 20 years. Not till I started buying the Pro 500s and D-Lite 400s did I start having issues with the stand adaptor base from breaking or cracking. The company has always been good on sending me out replacement pieces for me to swap out, but know they are telling me to buy a third party accessory to keep this from happening. I feel like the piece on the probe is under engineered and that they are pushing off the blame.

Mike R.

2016-05-16T09:17:49

Rated 5 out of 5

Excelent

Very impress with this studio light. I strongly recommend it if you want to do more than just portraits.

Yvan Z.

2016-01-20T12:37:30

Rated 5 out of 5

Simply the Best Strobes for the money

I shoot mostly in Hi Speed mode on Elinchrom I freeze motion with 1/200 shutter speed and its fantastic, also you could use 1/8000 shutter speed with HS mode with no problems, also I love all the new features, like Sequence, Delay and Strobo Modes motions and 20 frames per second.

Baha A.

2016-01-18T18:28:35

Rated 5 out of 5

In Love with the ELC Pro 500

Set up is super easy. Just plug and play. Very powerful strobe. It can go very low power. I was able to shoot @ 2.8 Recycle time is super fast. Checkout the stroboscopic options. Highly recommend.

MD O.

2015-06-01T21:00:00

Rated 5 out of 5

Well these are just STELLAR!!!

Very easy to use imediately. Top quality, nice form factor. Skyport is straitforward. I almost got the 1000's however I can't imagine using that power ever. 525Ws is more than enough. I actually really like the EL mount.

JOHN G.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Elinchrom ELC Pro HD 500 Specifications

  • Maximum Watt/Seconds

    500

  • Guide Number

    212.6' (64.8 m) at 3.3' (1.0 m), ISO 100 with 48deg. reflector

  • Recycle Time

    At full power:
    at 230VAC Slow: 2.0 sec, Default: 0.75 sec, Fast: 0.6 sec.
    at 115VAC Slow: 2.5 sec, Default: 0.9 sec, Fast: 0.7 sec
    Maximum flashes per sec at min power: 20

  • Flash Duration

    Min / Max: 1/2,940 / 1/2,330 at t0.5
    At 53W/s: 1/5,000 (3.1 power setting)

  • Flash Variability

    7.0 Stops: 7.0 - 500W/s Power range display: 0.3 - 6.3

  • Color Temperature

    5,500K

  • User Replaceable Flashtube

    Yes, S-Type, Omega plug-in

  • Changeable Reflector

    Yes

  • Modeling Light Wattage

    300W

  • Modeling Light Control

    Full, Free, Proportional

  • Voltage Stabilization

    Yes, +/- 0.1%

  • Flash Ready Indicator

    Audible and LED

  • Operating Voltage

    90 - 265VAC, 50/60Hz

  • Sync Voltage

    5.0V

  • Sync Socket

    3.5 mm Jack

  • Umbrella Mount

    Diameter: 7.0mm (0.27")

  • Built-in Slave Cell

    Optical/IR
    Integrated transceiver: 8 frequency channels with 4 Groups with full RX features

  • Circuit Protection

    Fuse

  • Power Consumption

    at 230VAC, 50Hz
    Slow: during charge: 350
    Default: during charge: 700
    Fast: during charge: 875
    at 115VAC, 60Hz
    Slow: during charge: 250
    Default: during charge: 500
    Fast: during charge: 625

  • Pure Sine Wave Converter

    AC/DC, slow charge: 600 with halogen

  • Fan Cooled

    Yes, temperature-controlled

  • Auto Dump

    Yes

  • Dimensions

    With Protective Cap: 31.50 x 14.00 x 21.00cm (12.40 x 5.51 x 8.26")

  • Weight

    2.35kg (5.18lbs)

  • UPC Codes

    840014167760 | 7630006310563 | 719821150336 | 7630006303268

23 Accessories for Elinchrom ELC Pro HD 500 500W/s Compact Flash Head, 5500K Color Temperature, - Bundle With Standard Reflector 21 cm, Portalite 25.5x25.5" Single Diffuser Square Softbox, Pro Air Cushioned Heavy Duty Light Stand - 9.5'

  • All Accessories (23)
  • Collapsible Reflectors (1)
  • Cables & Adapters (1)
  • Umbrellas & Accessories (2)
  • Bags & Cases (1)
  • Umbrellas (1)
  • Carts & Trolleys (1)
  • Studio/Still Life & Copy Equip (2)
  • Props & Special Effects (1)
  • Apple Boxes (1)
  • Lamps & Bulbs (2)
  • Flashtubes & Accessories (1)
  • Production Accessories (1)
  • Transmitters & Receivers (4)
  • Softboxes & Accessories (4)
Elinchrom 300W/120V Watt Halogen Modeling Lamp
Elinchrom 300W/120V Watt Halogen Modeling Lamp
$48.95
Recommended
Elinchrom EL 24084 Flashtube for ELC Pro HD 500/1000
Elinchrom EL 24084 Flashtube for ELC Pro HD 500/1000
$195.00
Recommended
Glow 40" White Umbrella
Glow 40" White Umbrella
$14.95
Recommended
Slinger L1 BigBag Heavy Duty Lighting Bag Large with Wheels
Slinger L1 BigBag Heavy Duty Lighting Bag Large with Wheels
$179.95
Recommended
Lamp JCD-1001762 STUDIO LAMP 300W 120V FOR BRONCOLOR PULSO
Lamp JCD-1001762 STUDIO LAMP 300W 120V FOR BRONCOLOR PULSO
$12.11
Glow Portable 5 in 1 22" Reflector Kit
Glow Portable 5 in 1 22" Reflector Kit
$19.95
Glow 40" Silver Umbrella
Glow 40" Silver Umbrella
$19.95
Advantage Gripware Apple Box Posing Prop, Half Size
Advantage Gripware Apple Box Posing Prop, Half Size
$70.00
Advantage Gripware Apple Box Posing Prop, Full Size
Advantage Gripware Apple Box Posing Prop, Full Size
$70.00
Advantage Gripware Apple Box Posing Prop, Quarter Size
Advantage Gripware Apple Box Posing Prop, Quarter Size
$70.00
Alan Gordon Enterprises Blue Ring Gaffer's Glass
Alan Gordon Enterprises Blue Ring Gaffer's Glass
$79.95
Elinchrom EL-Skyport Transmitter Plus
Elinchrom EL-Skyport Transmitter Plus
$133.95

About Elinchrom ELC Pro HD 500

FEATURED REVIEWS

Excelent

By Yvan Z.

Very impress with this studio light. I strongly recommend it if you want to do more than just portraits.

Simply the Best Strobes for the money

By Baha A.

I shoot mostly in Hi Speed mode on Elinchrom I freeze motion with 1/200 shutter speed and its fantastic, also you could use 1/8000 shutter speed with HS mode with no problems, also I love all the new features, like Sequence, Delay and Strobo Modes motions and 20 frames per second.

The Elinchrom ELC Pro HD 500 500W/s Compact Flash Head is packed with professional features that can be expected from a flash head of this caliber and added quite a bit more. Short recycling times coupled with fast flash durations make freeze-motion, stop-action shooting possible. In fact, up to 20 frames per second is possible at minimum power. An intelligent low noise, temperature-activated fan keeps the head cool and lengthens the life of both the flash tube and modeling lamp. A pre-flash detector lets you integrate your on-camera flash into your studio system.

Power, variable continuously from 7 to 500W/s, can be mimicked by the 300W proportional modeling lamp to preview your effects. Although Elinchrom provides one, you can swap the sync cord with a separately purchased 8-channel transceiver for wireless triggering from your camera. The head has one built-in to receive the signal. Flash modes allow you to address special situations. The Sequential Mode enables triggering up to 20 ELCs in bursts or in a continuous cycle. Delayed Mode offers a choice of first or second curtain syncing while Strobo Mode allows single frame stroboscopic action sequences. Finally, the auto-sensing multi-voltage power supply means that you can use the ELC Pro HD 500 anywhere in the world.

Elinchrom ELC Pro HD 500 Features

  • Built-in EL-Skyport receiver for triggering
  • EL-Skyport with 8 Frequency Channels with 4 Groups
  • EL-Skyport Speed Sync mode for synchronization up to a 1/320 s on enabled SLR cameras
  • Intelligent pre-flash detector system to enable the use of ELC units with speedlights
  • 7 f-stop range
  • Action freezing flash durations at full power - 1/2330 s at t.05 with flash durations up to a 1/5000s
  • Fastest recycling times always maintaining best stability
  • Up to 20 flashes per second
  • Super balanced color temperature with +/- 150 deg.K
  • Power Auto-dump
  • Multi-voltage auto-detection: 90-270 V (excluding modeling lamp)
  • Low 5 V sync voltage protecting all digital camera systems
  • Intelligent low noise fan; The electronically controlled fan spins slower or faster depending on the internal temperature of the unit
  • High impact resistant and fire retardant body shell
  • Accessory bayonet permits use of the complete range of light modifiers
  • OLED display for information and clarity.
  • Dashboard for an enhanced experience.
  • Highly precise control.
  • Flash modes: Sequence Mode, Delayed Mode, Strobo Mode
  • Built-in EL-Skyport receiver for triggering

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Intelligent pre-flash detector system to enable the use of ELC units
  • Fastest recycling times always maintaining best stability
  • Up to 20 flashes per second
  • Super balanced color temperature
  • Power Auto-dump
  • Multi-voltage auto-detection

What's in the box:

  • Elinchrom ELC Pro HD 500 500W/s Compact Flash Head
  • Mains Cable
  • Sync Cable
  • Modeling Lamp (300W)
  • Glass Dome
  • Protective Cap
  • Reflector (6.3 "/90deg.)
  • Elinchrom 2 Year Warranty
  • <b> Bundle includes: </b>
  • Standard Reflector 21 cm
  • Portalite 25.5x25.5 " Single Diffuser Square Softbox
  • Pro Air Cushioned Heavy Duty Light Stand
  • 9.5'
