Elinchrom BRX 500/500 Softbox To Go Kit
See all Elinchrom items

Elinchrom BRX 500/500 Softbox To Go Kit, Includes 2x Flash Heads, 2x Portalites (Square and Octagonal), 2x Tripods with Carry Bag, Translucent Deflector, EL-Skyport Transmitter Plus, Durable Storage Bag

SKU: EL207492

This item is no longer available.

Recommended Alternatives

Elinchrom RX 4: Picture 1 regular
Elinchrom D-Lite RX 4 400Ws Compact Monolight with Built-In Skyport
$479.94$383.95
Elinchrom RX 4: Picture 1 regular
Elinchrom D-Lite RX 4, 4 Softbox To Go Kit
$937.44$699.99
Elinchrom RX 4: Picture 1 regular
Elinchrom D-Lite RX 4, 4 Softbox To Go Kit, Bundle with Gaffer Tapes & Sand Bags
$747.87
Elinchrom ONE: Picture 1 regular
Elinchrom ONE Off-Camera Flash Dual Kit
$1,987.44$1,589.95
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Elinchrom Softbox To Go Kit Specifications

  • Monolight: Maximum Watt/Seconds

    500 each

  • Monolight: Guide Number

    f/90 at 3.3' / 1.01m at ISO 100, with 48 deg. reflector

  • Monolight: Recycle Time

    115V: 1.45 sec at full power, 0.34 sec at min power
    230V: 1.13 sec at full power, 0.36 sec at min power

  • Monolight: Flash Duration

    Full power at t0.5: 1/1,558 sec.
    1/2 Power at t0.5: 1/1,395 sec.

  • Monolight: Color Temperature

    5,410K

  • Monolight: Flash Variability

    5.0 f/stops: 1/16 - 1/1 (31 - 500W/s)

  • Monolight: User Replaceable Flashtube

    Yes

  • Monolight: Changeable Reflector

    Yes

  • Monolight: Modeling Light Wattage

    100W

  • Monolight: Voltage Stabilization

    Yes, +/- 0.5%

  • Monolight: Flash Ready Indicator

    Ready light, Switchable audible beep, dimming while recycling

  • Monolight: Operating Voltage

    90-260VAC, 50/60Hz

  • Monolight: Sync Voltage

    5.0VDC

  • Monolight: Triggering

    Sync cord, optical slave, built-in Skyport receiver
    Receiver range: up to 393' / 119.79m outdoors, 131' / 39.93m indoors

  • Monolight: Circuit Protection

    Fuse

  • Monolight: Fan Cooled

    Yes

  • Monolight: Auto Dump

    Yes

  • Softbox: Size

    26 x 26" / 660.40 x 660.40mm

  • Softbox: Shape

    Square

  • Softbox: Compatibility

    All Prolinca and Elinchrom flash units since 1974

  • Softbox: Requires Speed Ring

    Included for Elinchrom

  • Octa Softbox: Size

    22" / 558.80mm

  • Octa Softbox: Compatibility

    Ranger Quadra heads

  • Octa Softbox: Removable Front Face

    Yes

  • Octa Softbox: Requires Speed Ring

    Yes, included

  • Stand: Material

    Stand: aluminum
    Case: nylon

  • Stand: Maximum Height

    92.5" / 2349.50mm

  • Stand: Minimum Height

    34.6" / 878.84mm

  • Stand: Diameter

    3.14" / 79.76mm

  • Stand: Mount

    16mm / 0.63" Top stud

  • Transmitter: Frequency

    2.4GHz

  • Transmitter: Channels

    16 (8 in Normal mode, 8 in Speed mode)

  • Transmitter: Groups

    1, 2, 3, 4

  • Transmitter: Flash Synchronization Speed

    Normal: Limited to the native X-sync of your camera
    Speed: For digital medium-format cameras (Max.)

  • Transmitter: Indoor Range

    656' / 199.95m for triggering

  • Transmitter: Connectors

    Foot for camera hot shoe 2.5 mm sync socket

  • Transmitter: Power Source

    2x AA Batteries

  • Transmitter: Indicators and Controls

    Display
    Group and frequency channel
    Buttons
    On Top:
    Group selection, synchronization mode, channel selection, power down, power up, and test
    On Side:
    On/Off

  • Transmitter: Compatibility

    Channels 1, 3, and 7 are compatible with all enabled EL-Skyport units
    Channels 1, 3, 7, 9, 12, 15, 18, and 20 are only compatible with ELC Pro HD and ELB 400

  • Transmitter: AF Illuminator

    No

  • Dimensions

    Monolight: 10.24 x 7.5 x 5.5" / 260.10 x 190.50 x 139.70mm
    Bag: 34.25" / 869.95mm
    Transmitter: 3.7 x 2.0 x 1.5" / 93.98 x 50.80 x 38.10mm

  • Weight

    Monolight: 5.5lbs / 2.49kg
    Bag: 3.2lbs / 1.45kg
    Transmitter: 0.14lbs / 0.06kg without batteries
    Case: 3.2lbs / 1.45kg

  • UPC Code

    7630006318958

About Elinchrom Softbox To Go Kit

The BRX range gives more freedom to photographers in their workflow

• Short flash duration
• Fast recycling time
• Additional control options
• Accurate exposures with consistent color
• Available in 250 Ws or 500 Ws
• Compatible with many accessories
• Built-in receiver for triggering and power control with the EL-Skyport Plus
• Intelligent pre-flash detector system
• Controlled cooling fan
• Adjustable proportionality of the modelling lamp range
• Variable f-stop steps : 1/1, 1/2, 4/10, 1/3, 2/10 or 1/10
• Programmable ready beep tone
• Compatible with all light shapers
• Centred 7 mm umbrella shaft for the deflector set
• Stand bracket with additional umbrella fitting
• User replaceable plug-in flashtube
• Power auto-dump
• Multi-voltage auto-detection: 90-270 V (excluding modelling lamp)

Pauline Aellen's creative concept of masks and hidden faces with the BRX 500 To Go set
Pauline Aellen is an experienced photographer located in Lausanne, Switzerland. Pauline creates her own world and develop different characters through the spectre of masks. Using this To Go set has allowed her to use various setups and obtain the most creative light during the shooting.

BRX 500 Monolight
An affordable multivoltage entry professional unit with short flash durations (1/1558 s), integrated EL-Skyport for remote triggering, power, independant modelling lamp control and many programmable options.

EL-Skyport Transmitter Plus

Always be in control
This new generation of EL-Skyport Plus provides photographers with an extra range for triggering and remote power control on all actual Elinchrom units from up to 200 m (656 feet) away.

The EL-Skyport Transmitter Plus is designed with a swivel function that enables rotation to optimize reception. Its strong and robust mechanics makes it more durable than ever. In addition, the EL-Skyport Transmitter Plus works with AA batteries, available everywhere.

Functions:
• Trigger reliably and adjust flash power up to 200 m (656 feet) away
• Optimized reception with rotating swivel function
• 4 Groups and ALL selection
• 16 different channels available (8 in normal mode and 8 in speed mode)
• Quick increase or decrease of the flash power per group
• Runs on AA batteries
• Metal hotshoe connector with screw lock
• 2.5 mm sync socket
• Normal and Speed sync mode (for leaf shutter cameras) More info here
• All functionalities can be easily adjusted
• Durable with robust mechanics
• Ergonomic design

Tube case for BRX 250/500
This hardshell case offers good protection to compacts of 28 cm long. For instance, two BRX 250 or 500 can easily fit into this elegant and modern bag which is very transportable. This case is included in every BRX To Go set.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

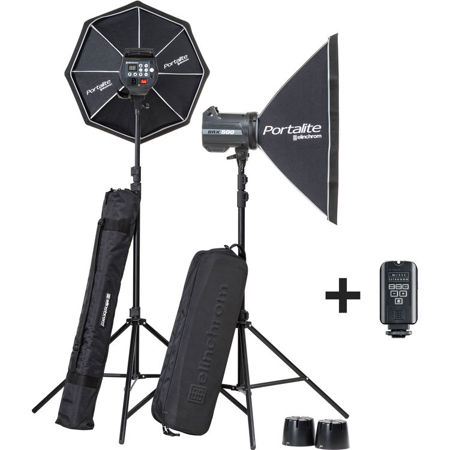

What's in the box:

  • 2x BRX 500 Flash Heads
  • 2x Portalites (Square and Octagonal)
  • 2x Tripods with Carry Bag
  • Translucent Deflector
  • EL-Skyport Transmitter Plus
  • Durable Storage Bag
  • Elinchrom Limited Warranty
