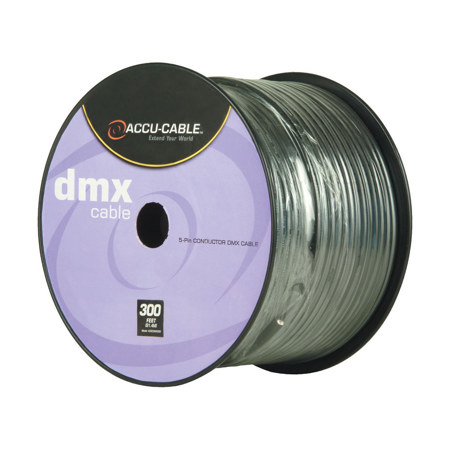

Elation Accu-Cable 300' Bulk Spool 5-Pin Conductor DMX Cable
See all Elation items
19% Off

Elation Accu-Cable 300' Bulk Spool 5-Pin Conductor DMX Cable

SKU: ELAC5CDMX300 MFR: AC5CDMX300
Be the first to review this itemAsk a Question
$287.99
$353.95
Save: $65.96 (19%)
OR
$48/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Ensure optimal sound quality with this 300' spool of 5-Pin Conductor DMX Cable.
  • Durable PVC jacket protects your DMX lighting cable in demanding environments.
  • Enjoy reliable connectivity for your lighting setup with our high-quality DMX cable.
  • This 22 AWG DMX cable provides excellent signal transmission for lighting effects.
  • Create custom cable lengths for any lighting setup with this convenient bulk DMX spool.
  • Experience peace of mind with Elation's 2-year warranty on our DMX lighting cables.
See More Product Details
Special Order?Estimated to Ship: 08/26/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Elation Accu-Cable 300' Bulk Spool 5-Pin Conductor DMX Cable Specifications

  • Conductor

    Number of Pairs: 2

  • Total Number of Conductors

    4 (Plus 1 ground)

  • AWG

    22

  • Stranding

    0.15 x 19

  • Conductor Diameter

    0.0354" (0.89mm)

  • Conduct or Material

    TC-Tinned Copper Insulation: Insulation Material PE Polyethylene

  • Lay Length

    1.1" (27.94)

  • Direction

    Left Hand Lay

  • Twists

    10.9 per foot

  • Inner Jacket Material

    PE- Polyethylene

  • Inner Jacket Diameter

    0.055" (1.397mm)

  • Pair Color Code

    Green/Black/Red/White

  • Outer Shield Trade Name

    Duofoil

  • Outer Shield Type

    Tape/Braid

  • Outer Shield Material

    Layer Number: 1, Material Trade Name: Duofoil, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
    Layer Number: 2, Material Trade Name: Duofoil, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85

  • Outer Jacket Material

    PVC-Polyvinyl Chloride

  • Overall Nominal Diameter

    0.295" (7.49mm)

  • Operating Temperature Range

    -22 to 167 Degree F (-30 to +75 Degree C)

  • Minimum Bend Radius (Install)

    3.5" (88.9mm)

  • Maximum Recommended Pull Tension

    22 lbs (9.97kg)

  • Nominal Characteristic Impedance

    110 Ohms

  • Nominal Capacitance

    Conductor to Conductor @ 1KHz: 12.5 pF/ft
    Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft

  • Nominal Velocity of Propagation

    76%

  • Nominal Delay

    1.6 Nanoseconds per foot

  • Resistance

    Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000'
    Nominal Outer Shield D C Resistance @ 20 degrees C: 15 Ohms/ 1000'

  • Nominal Attenuation (dB/100 ft)

    0.6 (@ 1 MH z) dB/100'

  • Maximum Recommended Current

    2.1 A mps per conductor @ 25 degree C

  • Length

    300' (91.4m)

Models
Elation Accu-Cable 300' Bulk Spool 5-Pin Conductor DMX Cable

Elation Accu-Cable 300' Bulk Spool 5-Pin Conductor DMX Cable

SKU: ELAC5CDMX300

MFR: AC5CDMX300

$287.99

$353.95

Save:$65.96 (19%)

Special Order

Generally ships in 7-14 days, subject to availability

Elation SIP191 100' IP65 Male to Female Power Link Cable

Elation SIP191 100' IP65 Male to Female Power Link Cable

SKU: ELSIP191

MFR: SIP191

$265.99

$323.95

Save:$57.96 (18%)

Special Order

Generally ships in 7-14 days, subject to availability

Elation PIXEL BC50-12 50' 4-Pin 12AWG IP65 Shielded Power/Data Cable

Elation PIXEL BC50-12 50' 4-Pin 12AWG IP65 Shielded Power/Data Cable

SKU: ELPIX589

MFR: PIX589

$195.00

Special Order

Generally ships in 7-14 days, subject to availability

Accessory TypeCableCable, Power AccessoriesCable, Power Accessories

About Elation Accu-Cable 300' Bulk Spool 5-Pin Conductor DMX Cable

How the Accu-Cable 300' Bulk Spool 5-Pin Conductor DMX Cable Enhances Your Audio-Visual Setup

The Accu-Cable 300' Bulk Spool 5-Pin Conductor DMX Cable is engineered to deliver superior performance for your audio-visual installations. Featuring 22 AWG stranded tinned copper conductors (0.15 x 19), this cable ensures optimal conductivity and durability. The polyethylene insulation provides excellent protection against electrical interference, while the twisted pair design minimizes signal distortion, ensuring clear and reliable data transmission.

This DMX cable is equipped with a polyethylene inner jacket that adds an extra layer of protection, enhancing its longevity and resilience in demanding environments. The Duofoil shield offers 100% coverage, effectively blocking out electromagnetic interference, while the additional cotton layer and tinned copper braid shield provide an 85% coverage, further safeguarding the integrity of your signal.

Encased in a robust PVC jacket, the Accu-Cable 300' Bulk Spool is designed to withstand the rigors of both indoor and outdoor use, making it an ideal choice for professional lighting and stage applications. Whether you're setting up a complex lighting rig or a simple audio system, this cable ensures seamless connectivity and performance.

Elation Accu-Cable 300' Bulk Spool 5-Pin Conductor DMX Cable Features

  • 22 AWG stranded (0.15 x 19 ) tinned copper conductors
  • Polyethylene insulation, twisted pair, polyethylene inner jacket
  • Duofoil (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ensure optimal sound quality with this 300' spool of 5-Pin Conductor DMX Cable.
  • Durable PVC jacket protects your DMX lighting cable in demanding environments.
  • Enjoy reliable connectivity for your lighting setup with our high-quality DMX cable.
  • This 22 AWG DMX cable provides excellent signal transmission for lighting effects.
  • Create custom cable lengths for any lighting setup with this convenient bulk DMX spool.
  • Experience peace of mind with Elation's 2-year warranty on our DMX lighting cables.

What's in the box:

  • Elation Accu-Cable 300' Bulk Spool 5-Pin Conductor DMX Cable
  • Elation 2 Year Limited Warranty
