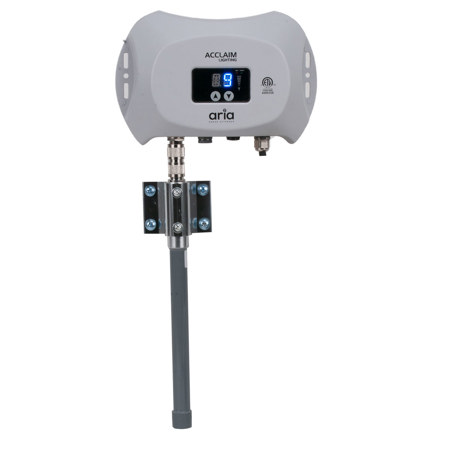

Elation Aria Range Extender, Gray

SKU: ELARI656 MFR: ARI656
Earn VIP Reward Points

Key Features

  • Extend your DMX lighting control range up to 2600' with this Elation Range Extender!
  • Enjoy robust wireless DMX signal transmission using the reliable 2.4 GHz protocol.
  • Secure your lighting setup with AES 128-bit data encryption for professional use.
  • Easily wall-mount this lighting transceiver with included hardware for flexible setup.
  • Control one DMX universe per extender, supporting up to 8 for complex light shows.
  • This durable, IP66 rated extender operates flawlessly in temperatures from -40°F to 122°F.
See More Product Details
Special Order?Estimated to Ship: 09/09/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elation Aria Range Extender Specifications

  • Finish

    Gray

  • Wireless Protocol

    2.4 GHz, IEEE 802.15.4, 15 selectable channels

  • Estimated Transmission Distance

    2600' (792m) line of sight, 300' (91m) between obstructions and walls

  • Data Encryption

    AES 128-bit

  • DMX Universes

    One per range extender, maximum of 8 simultaneously

  • Max number of transceivers

    Up to 5 per single transceiver (limited to ensure optimum data transmission)

  • Included Antenna

    5dB, includes direct attachment adapter and 9' extension cable

  • Mounting

    Wall mountable via screw holes on both the transceiver and antenna mount

  • Power Consumption

    3W

  • Operating Voltage

    100-240VAC, 277VAC - 50/60Hz

  • Display Features

    Auto lockout and display blackout

  • Housing Material

    Die cast aluminum

  • Ambient Operating Temperature

    -40 Degree F to 122 Degree F (-40 Degree C to 50 Degree C)

  • IP Rating

    IP66, Wet Location (does not include feed ends - install in an enclosure)

  • Wiring

    3.28' (1m) Attached AC power feed cable

  • Dimensions (W x H x L)

    9.1 x 6.2 x 2.2" (231.6 x 157.7 x 55mm)

  • Weight

    3.96 lbs (1.8 kg)

  • UPC Code

    811844031194

About Elation Aria Range Extender

Let the Aria Range Extender, Gray, revolutionize your wireless DMX system with its compact and robust design, specifically engineered for outdoor use. This local, outdoor-rated expansion unit seamlessly integrates with the Aria wireless DMX system, receiving signals from an Aria transceiver and rebroadcasting them to significantly enhance your wireless range. Operating on the 2.4 GHz band, it effortlessly matches your existing radio channel, ensuring seamless connectivity.

The Aria Range Extender is equipped with an advanced internal wireless radio that features automatic networking and signal routing optimization. This technology guarantees optimal reception of DMX data, providing reliable performance in various environments. Included with the extender is a powerful 5dB omnidirectional antenna, capable of transmitting signals up to an impressive 2,600 feet in line of sight and 300 feet through obstructions and walls.

Designed to withstand the elements, the Aria Range Extender meets the IP66 standard for wet locations and the IK07 impact protection standard, ensuring durability and reliability in challenging conditions. With its ability to rebroadcast DMX control signals over the air, it instantly connects to any Aria Direct Connect fixture, enhancing signal strength in specific areas or extending the transmission range. Elevate your wireless DMX capabilities with the Aria Range Extender, Gray, and experience unparalleled performance and connectivity.

Elation Aria Range Extender Features

  • Compact outdoor-rated expansion unit for the Aria wireless DMX system
  • Receives signal from Aria transceiver and rebroadcasts to expand wireless range
  • Matches existing radio channel on the 2.4 GHz band for seamless integration
  • Internal wireless radio features automatic networking and signal routing optimization
  • Ensures optimal reception of DMX data for reliable performance
  • Includes a 5dB omnidirectional antenna for extended transmission
  • Provides up to 2600' line of sight and 300' between obstructions and walls

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Extend your DMX lighting control range up to 2600' with this Elation Range Extender!
  • Enjoy robust wireless DMX signal transmission using the reliable 2.4 GHz protocol.
  • Secure your lighting setup with AES 128-bit data encryption for professional use.
  • Easily wall-mount this lighting transceiver with included hardware for flexible setup.
  • Control one DMX universe per extender, supporting up to 8 for complex light shows.
  • This durable, IP66 rated extender operates flawlessly in temperatures from -40°F to 122°F.

What's in the box:

  • Elation Aria Range Extender (Gray)
  • 5dB Antenna
  • Type N Male to Male Adapter
  • 9' Antenna Extension Cable & Bracket
  • Elation 2 Year Limited Warranty
