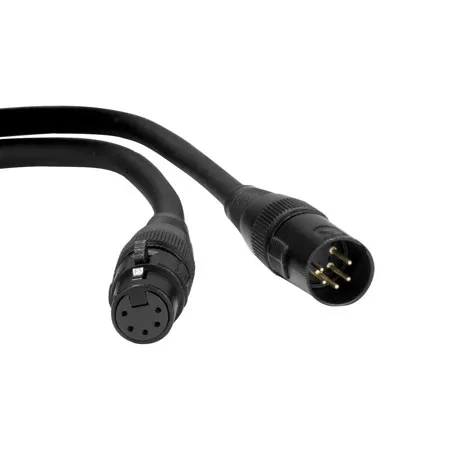

Elation Accu-Cable 25' 5-Pin XLR Male to Female DMX Cable

SKU: ELAC5PDMX25 MFR: AC5PDMX25
$26.99
Earn VIP Reward Points

Key Features

  • Ensure reliable DMX signal transmission for your lighting setup with this 25' XLR cable.
  • This Accu-Cable features a 5-Pin XLR connection, perfect for professional lighting and effects.
  • Enjoy durable performance with shielded, tinned copper braid, reducing interference in your audio.
  • Get superior sound quality with a low capacitance of 12.5 pF/ft, ideal for clear audio signals.
  • Experience flexibility with a 3.5" bend radius, making cable management in tight spaces easy.
  • Trust in Elation's quality; this DMX cable is built to last, offering excellent value for money.
See More Product Details
Special Order?Estimated to Ship: 04/03/2026
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What type of conductors does the Elation Accu-Cable use?

The cable uses 22 AWG stranded tinned copper conductors for optimal signal integrity.

How does the Elation Accu-Cable minimize interference?

It features Duofoil with 100% coverage and a tinned copper braid shield with 85% coverage to effectively minimize interference.

Is the Elation Accu-Cable suitable for professional audio and lighting setups?

Yes, this cable is designed for professional audio and lighting applications, providing reliable and high-performance connectivity.

What is the length of the Elation Accu-Cable?

The Elation Accu-Cable is 25 feet long, making it suitable for various connectivity needs.

Reviews about this item

Review Summary

Elation Accu-Cable 25' 5-Pin XLR Male to Female DMX Cable Specifications

  • Connector 1

    XLR 5-Pin Male

  • Connector 2

    XLR 5-Pin Female

  • Number of Conductors

    4

  • Conductor Material

    Tinned Copper

  • Shielded

    85% Tinned Copper Braid

  • Jacket Type

    Polyvinyl Chloride (PVC)

  • Insulation Type

    Polyethylene

  • Outer Diameter

    0.09" (2.29mm)

  • Bend Radius

    3.5" (8.9cm)

  • Maximum Pull Tension

    22lbs (10kg)

  • Operating Conditions

    -22 to 167 Degree F (-30 to 75 Degree C)

  • Wire Gauge

    22 AWG

  • Conductor Capacitance

    12.5 pF/ft at 1 kHz

  • Conductor DC Resistance

    24 Ohms/ft (Up to 1000' / 304.80m)

  • Nominal Impedance

    110 Ohms

  • Attenuation

    0.6 dB @ 1 MHz

  • Cable Length

    25' (7.62m)

Models
Elation Accu-Cable 25' 5-Pin XLR Male to Female DMX Cable
$26.99

Special Order

Generally ships in 7-14 days, subject to availability

Elation STR527 5' IP65 5-Pin Male to Female XLR DMX Cable
$26.99

Special Order

Generally ships in 7-14 days, subject to availability

Elation Accu-Cable TOUR LINK 5P10 10' 5-Pin Male to Female Tour Grade DMX Cable
$27.99

Special Order

Generally ships in 7-14 days, subject to availability

Accessory TypeCableCableCable
Component Type-DMX InterfaceDMX Interface

About Elation Accu-Cable 25' 5-Pin XLR Male to Female DMX Cable

While ensuring optimal performance and durability, the Elation Accu-Cable 25' 5-Pin XLR Male to Female DMX Cable is engineered with no memory rugged construction. This high-quality cable features 22 AWG stranded (0.15 x 19) tinned copper conductors, providing excellent conductivity and signal integrity. The polyethylene insulation and twisted pair design further enhance signal clarity, making it ideal for professional audio and lighting applications. Encased in a polyethylene inner jacket, the cable is fortified with Duofoil offering 100% coverage, complemented by a cotton layer and a tinned copper braid shield with 85% coverage. This robust shielding effectively minimizes interference and ensures reliable data transmission. The outer PVC jacket is designed to prevent kinking, adding to the cable's longevity and flexibility. Perfect for demanding environments, this 25-foot DMX cable is an essential component for any setup requiring dependable and high-performance connectivity.

Elation Accu-Cable 25' 5-Pin XLR Male to Female DMX Cable Features

  • 5-pin DMX Cable
  • Used for linking lighting effects to control them in DMX or Primary/Secondary modes
  • No memory rugged cable
  • PVC jacket to prevent kinking

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Ensure reliable DMX signal transmission for your lighting setup with this 25' XLR cable.
  • This Accu-Cable features a 5-Pin XLR connection, perfect for professional lighting and effects.
  • Enjoy durable performance with shielded, tinned copper braid, reducing interference in your audio.
  • Get superior sound quality with a low capacitance of 12.5 pF/ft, ideal for clear audio signals.
  • Experience flexibility with a 3.5" bend radius, making cable management in tight spaces easy.
  • Trust in Elation's quality; this DMX cable is built to last, offering excellent value for money.

What's in the box:

  • Elation Accu-Cable 25' 5-Pin XLR Male to Female DMX Cable
  • Elation 2 Year Limited Warranty
