28% Off

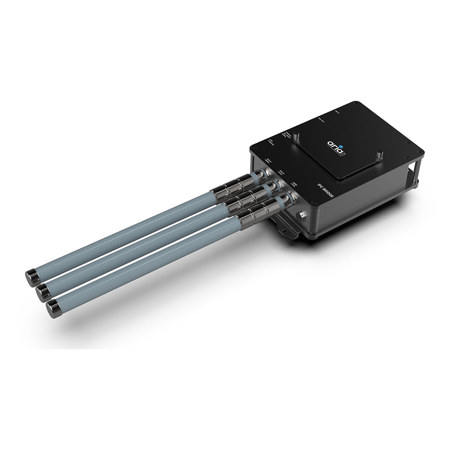

Elation Aria X2 IPC Wireless Bridge

SKU: ELAX2152 MFR: AX2152
Earn VIP Reward Points

Key Features

  • Effortlessly manage your lighting setup with this Elation DMX lighting interface.
  • Achieve reliable wireless DMX control for your stage or event using the Aria X2.
  • Enjoy seamless connectivity with Wi-Fi and Bluetooth 5.2 on this DMX controller.
  • Configure your lighting easily via the app or front panel of this lighting interface.
  • The IP65 housing ensures durability for outdoor events with this DMX lighting system.
  • Expand your lighting capabilities with the Aria X2's single DMX universe support.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elation Aria X2 IPC Bridge Specifications

  • Features

    Single DMX Universe
    2.4 GHz Bands
    Wi-Fi and Bluetooth 5.2
    Configuration via App or Front panel
    Wireless to DMX or DMX to Wireless
    Aria X2 to SM220 (eFly, WiFly, MagFly and Acclaim Aria)
    SM220 to Aria X2
    IP65 Housing

  • Supported Protocols

    DMX512
    Proprietary 802.15.4
    Aria X2 Mesh Protocol
    Bluetooth 5.2 (BLE)
    Aria X2 Serial Protocol (for communicating with a variety of fixtures)

  • RF Characteristics

    Frequency range: 2404-2480 MHz
    863-870 MHz (EU)
    902-928 MHz
    Radio module: Aria X2
    Interference mitigation: CSMA
    Adaptive frequency hopping (on the roadmap)
    OTA updates

  • Standards

    Health:
    EN IEC 62311:2020
    EN50665:2017
    BS EN IEC 62311:2020
    BS EN 50665:2017

    Safety:
    EN IEC 62368-1: 2020+A11:2020
    BS EN IEC 62368-1: 2020+A11:2020

    EMC:
    ETSI EN 301 489-1 V2.2.3 (2019-11)
    ETSI EN 301 489-3 V2.3.2 (2023-01)
    ETSI EN 301 489-17 V3.2.4 (2020-09)
    EN 55032:2015/A1:2020

  • Standards (Contd.)

    EN 55035:2017/A11:2020
    EN 61000-3-3:2013/A2:2021
    EN IEC 61000-3-2:2019/A1:2021
    BS EN 55032:2015/A1:2020
    BS EN 55035:2017/A11:2020
    BS EN 61000-3-3:2013/A2:2021
    BS EN IEC 61000-3-2:2019/A1:2021

    Radio:
    EN 300 220-1 V 3.1.1 (2017-02)
    EN 300 220-2 V 3.2.1 (2018-06)
    ETSI EN 300 328 V2.2.2 (2019-07)

  • Connectors

    Aria X2 900MHz Antenna
    Aria X2 2.4GHz Antenna
    SM220 2.4GHz Antenna (Aria, Wifly, eFly and MagFly)
    5-pin XLR DMX Input and Thru
    Outdoor Locking Power Input

  • Power

    Power Input: AC100-240V 50/60Hz
    Power Consumption: 2.2W (19mA @ 120V/60Hz), 2.2W (10mA @ 230V/50Hz)
    Power Fuse: T1.25A/250V. (5 x 20mm)

  • Physical

    IP65 Enclosure
    Front panel digital screen
    M12 Threads
    Max ambient operating temp: -4 Degree F to 113 Degree F (-20 Degree C to 45 Degree C)
    Max operating humidity: <75%
    Storage temperature: 77 Degree F (25 Degree C)

  • Dimensions (L x W x H)

    9.53 x 6.32 x 3.25" (242 x 160.60 x 82.30mm)

  • Weight

    3.7lbs (1.66kg)

  • UPC Code

    840063548107

About Elation Aria X2 IPC Bridge

Take your lighting management to the next level with the Aria X2 IPC Wireless Bridge, a revolutionary solution designed to deliver unmatched control, efficiency, and ease. This single universe, IP65-rated device is the future of wireless lighting management, offering a comprehensive system that adapts to your needs, whether you're on a show site or in the shop. The Aria X2 Bridge not only transmits the Aria X2 serial protocol but is also fully compatible with ADJ WiFLY, Elation eFly, Magmatic MagFly, and Acclaim Aria, ensuring seamless integration with existing wireless DMX solutions.

Experience the power of frequency agility with Aria modules, which can transmit and receive signals on standard 802.15.4 channels across the 2.4GHz and 915MHz (U.S.) or 2.4GHz, 868MHz, or 863MHz (Europe) spectrums. This capability guarantees exceptional network performance, even in crowded environments, by allowing units to switch seamlessly between spectrums for reliable connectivity.

The Aria X2 Bridge simplifies device setup with Bluetooth Low Energy (BLE) configuration, enabling direct adjustments from the fixture menu. BLE also facilitates auxiliary functions, such as individual DMX channel adjustments, unlocking new creative control possibilities. Stay current with Over-The-Air (OTA) updates for Aria firmware, fixture firmware, and fixture menus, all stored in a cloud repository and efficiently retrieved by the service app. Future multi-hop DMX support will enable mesh network updates, enhancing system capabilities.

Built on a robust Wireless Mesh technology foundation, the Aria X2 Bridge features a versatile multi-hop DMX protocol that adapts to various settings and use cases. Early configurations require minimal user intervention for optimal performance, while future releases will further simplify network configuration through internal metrics, ensuring low latency and reduced collisions.

Enhance your network reliability with Aria's frequency hopping scheme, which optimizes spectrum utilization and reduces user configuration requirements. This innovative approach ensures a seamless and efficient lighting experience, empowering your lighting management to reach new dimensions.

Elation Aria X2 IPC Bridge Features

  • Bridge Compatibility: Connects Aria X2 serial protocol with existing wireless DMX solutions
  • Multi-Brand Support: Works with ADJ WiFLY, Elation eFly, Magmatic MagFly, and Acclaim Aria
  • Frequency Agility: Transmits on 802.15.4 channels in 2.4GHz and 915MHz or European bands
  • Reliable Performance: Seamlessly switches frequencies to maintain network reliability
  • BLE Configuration: Easily configure settings directly from the fixture menu via Bluetooth
  • OTA Updates: Automatically update firmware and menus through a cloud repository app
  • Wireless Mesh Tech: Features multi-hop DMX protocol for versatile and reliable connectivity
  • Future-Proof Design: Planned frequency hopping will enhance reliability and reduce collisions

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Effortlessly manage your lighting setup with this Elation DMX lighting interface.
  • Achieve reliable wireless DMX control for your stage or event using the Aria X2.
  • Enjoy seamless connectivity with Wi-Fi and Bluetooth 5.2 on this DMX controller.
  • Configure your lighting easily via the app or front panel of this lighting interface.
  • The IP65 housing ensures durability for outdoor events with this DMX lighting system.
  • Expand your lighting capabilities with the Aria X2's single DMX universe support.

What's in the box:

  • Elation Aria X2 IPC Wireless Bridge
  • Elation 2 Year Limited Warranty
