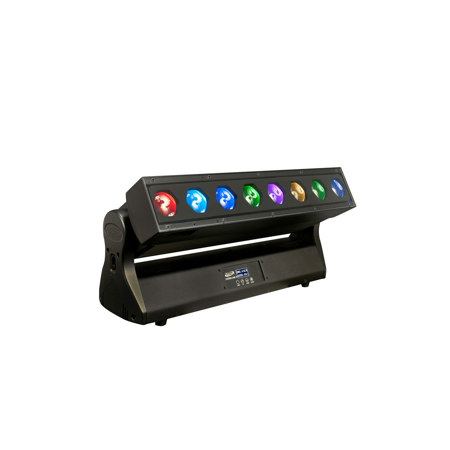

Elation CHORUS LINE 8 8x 40W RGBW LED Linear Wash Fixture with Zoom and Motorized Tilt

SKU: ELCHO001 MFR: CHO001
Earn VIP Reward Points

Key Features

  • Create dynamic stage lighting with the CHORUS LINE 8's vibrant RGBW color mixing.
  • Achieve unique effects using the 220° motorized tilt and precise zoom range control.
  • Enjoy seamless integration with DMX, RDM, Kling-Net, and Art-Net protocol support.
  • Customize your light shows with 64 color presets and 14 unique color macros.
  • Produce flicker-free visuals with an adjustable LED refresh rate (900-25,000 Hz).
  • Easily control settings via the user-friendly 4-button touch panel and LCD display.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elation CHORUS LINE 8 Specifications

  • Source

    (8) 40W 4-in-1 RGBW LEDs
    50,000 Hour Average LED Life
    Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

  • Photometrics

    3,000+ Total Lumens
    8,702 LUX 809 FC @16.4 ft (5m) (Full ON (4 Degree Min Zoom)
    318 LUX 21 FC @16.4 ft (5m) (Full ON (37 Degree Max Zoom)

  • Zoom Range

    4 Degree - 40 Degree

  • Beam Angle

    4.6 Degree - 37.8 Degree

  • Field Angle

    7.8 Degree - 54.4 Degree

  • Effects

    Motorized Zoom and 220 Degree Tilt Movement
    RGBW Color Mixing and Full Pixel Control
    2,700K - 7,000K Linear Color Temperature
    64 Color Presets and 14 Unique Color Macros
    Electronic Strobe, 16-bit Variable Dimming Curve Modes

  • Temperature Color

    RGBW

  • Control / Connections

    3 DMX Channel Modes (46 total channels)
    DMX, RDM, Kling-Net, and Art-Net Protocol Support
    Adjustable LED Refresh Rate (900-25,000 Hz)
    Adjustable LED Gamma Brightness (2.0, 2.2, 2.4, 2.8)
    4 Button Touch Control Panel
    180 Degree Reversible LCD Menu Display
    8 / 16-Bit Resolution Zoom and Tilt Movement
    5pin DMX In/Out
    RJ45 Ethernet In/Out
    Locking Power Cable Power In/Out
    With Wired Digital Communication Network

  • Electrical / Thermal

    AC 100-240V - 50/60Hz
    359W Max Power Consumption
    5 Degree F to 113 Degree F (-15 Degree C to 45 Degree C)
    BTU/hr (+/- 10%) 1224.2

  • Firmware Update

    Current Version: V1.13

  • Dimensions (L x W x H)

    21.28 x 7.44 x 11.46" (540.5 x 189 x 291mm)

  • Weight

    25 lbs (11.3kg)

  • UPC Code

    837874002669

About Elation CHORUS LINE 8

Are you looking for a versatile and powerful lighting solution for your stage or studio? The CHORUS LINE 8 8x 40W RGBW LED Linear Wash Fixture is designed to meet your professional lighting needs with precision and flexibility. This advanced luminaire features eight 40W 4-in-1 RGBW LEDs, providing vibrant and dynamic color washes. With its motorized zoom range from 4 degrees to 40 degrees and a 220-degree tilt movement, you can achieve precise lighting angles and coverage.

The CHORUS LINE 8 offers full pixel control, allowing for creative and customized lighting effects. Its adjustable linear color temperature ranges from 2,700K to 7,000K, ensuring you can match any desired ambiance. With 64 color presets and 14 unique color macros, this fixture provides a wide array of options for stunning visual displays. The electronic strobe and 16-bit variable dimming curve modes enhance your lighting effects, while the adjustable LED refresh rate frequency and gamma brightness ensure flicker-free operation, making it ideal for TV and film applications.

Connectivity is seamless with support for DMX, RDM, Kling-NET, and Art-NET protocols. The fixture includes DMX, RJ45 ethernet, and locking power cable in/out connections for easy integration into your existing setup. The 4-button LCD control panel display allows for intuitive operation, while the dual quick-lock omega bracket rigging ensures secure and efficient installation. Additionally, the multi-voltage universal auto-switching power supply (100-240V) provides flexibility for various power sources.

Enhance your lighting setup with the CHORUS LINE 8 8x 40W RGBW LED Linear Wash Fixture, a perfect blend of innovation and performance for any professional environment.

Elation CHORUS LINE 8 Features

  • 8 Pixel Bar Wash Luminaire with 40W 4-in-1 RGBW LEDs
  • Motorized 4 Degree to 40 Degree Zoom and 220 Degree Tilt Movement
  • RGBW Color Mixing and Full Pixel Control
  • 2,700K - 7,000K Linear Color Temperature Range
  • 64 Color Presets and 14 Unique Color Macros
  • Electronic Strobe, 16-bit Variable Dimming Curve Modes
  • Adjustable LED Refresh Rate Frequency
  • Adjustable LED Gamma Brightness
  • Flicker Free Operation for TV and FILM
  • DMX, RDM, Kling-Net, Art-Net Protocol Support

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Create dynamic stage lighting with the CHORUS LINE 8's vibrant RGBW color mixing.
  • Achieve unique effects using the 220° motorized tilt and precise zoom range control.
  • Enjoy seamless integration with DMX, RDM, Kling-Net, and Art-Net protocol support.
  • Customize your light shows with 64 color presets and 14 unique color macros.
  • Produce flicker-free visuals with an adjustable LED refresh rate (900-25,000 Hz).
  • Easily control settings via the user-friendly 4-button touch panel and LCD display.

What's in the box:

  • Elation CHORUS LINE 8 8x 40W RGBW LED Linear Wash Fixture with Zoom and Motorized Tilt
  • Locking Power Cable
  • Elation 2 Year Limited Warranty
