What type of LED engine does the COLOUR 5 Profile use?

The COLOUR 5 Profile uses a 180W RGBAM (Red, Green, Blue, Amber, Mint) LED engine for superior color accuracy and performance.

Are lenses included with the COLOUR 5 Profile Ellipsoidal Light?

No, lenses are sold separately. The light supports interchangeable lens options in 19°, 26°, 36°, and 50°.

Is the COLOUR 5 Profile suitable for TV and film production?

Yes, it features flicker-free operation, adjustable refresh frequency, and gamma brightness settings, making it ideal for TV and film applications.

Does the COLOUR 5 Profile support gobos?

Yes, it supports B size metal HT transparency gobos for creating intricate lighting patterns and effects.

What type of power supply does the COLOUR 5 Profile use?

It uses a multi-voltage universal auto-switching power supply, compatible with 100-240V power sources.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Elation COLOUR 5 Profile Specifications

  • Source

    180W RGBAM (Red/Green/Blue/Amber/Mint) LED Engine
    50,000 Hour Average LED Life

  • Photometrics

    >94CRI 4,100 Total Lumens (with 26 Degree lens)

  • Effects

    Electronic Strobe and Dimming
    Variable Dimming Curve Modes

  • Gobos

    Supports "B" Size Metal, HT Transparency Gobos Gobos and Holder not included)

  • Control / Connections

    (5) DMX Channel Modes (5 / 6 / 8 / 13 / 19)
    Adjustable Refresh Rate (900-1500, 25,000 Hz)
    Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
    4 Button Control Panel
    LED Menu Display
    5pin DMX In/Out
    Locking Power Cable In/Out
    With Wired Digital Communication Network

  • Electrical / Thermal

    Quiet Fan Cooling
    AC 100-240V - 50/60Hz
    225W Max Power Consumption
    Power Linking: 4pcs Max @120V / 8pcs Max @240V
    14 Degree to 113 Degree F (-10 Degree to 45 Degree C)
    BTU/hr (+/- 10%) 767.25

  • Firmware Updates

    Current Version: V1.0.15

  • Dimensions (L x W x H)

    24.3-26.5 x 12.2 x 15.7" (618-674 x 310 x 398mm)

  • Weight

    21 lbs (9.5kg)

  • UPC Code

    837874018400

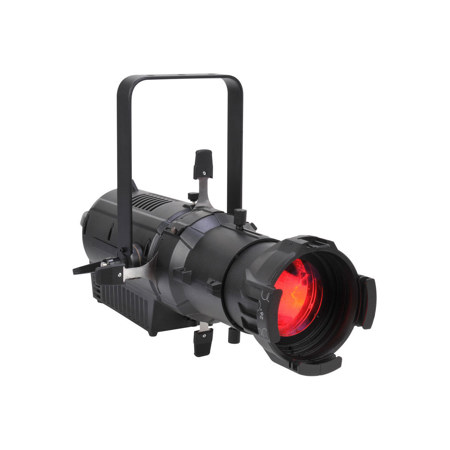

About Elation COLOUR 5 Profile

Enhance your lighting setup with the COLOUR 5 Profile 180W RGBMA LED Ellipsoidal Light, a versatile and powerful lighting solution designed for professional applications. This advanced ellipsoidal light features a robust 180W RGBAM (Red, Green, Blue, Amber, Mint) LED engine, delivering an impressive >94 CRI for superior color accuracy and a total output of 4,100 lumens. Tailor your lighting needs with interchangeable lens options available in 19 Degree , 26 Degree , 36 Degree , and 50 Degree (sold separately), allowing for precise beam control.

The COLOUR 5 Profile is equipped with four blade manual framing shutters and manual focus, providing you with the flexibility to shape and direct light with precision. It supports B size metal HT transparency gobos, making it ideal for creating intricate patterns and effects. The light is DMX controlled, offering electronic strobe, dimming, and customizable dimming curves for dynamic lighting effects. Its flicker-free operation ensures seamless performance for TV and film productions, while adjustable refresh frequency and gamma brightness settings enhance visual quality.

Connectivity is streamlined with 5-pin DMX and locking power cable in/out connections, ensuring secure and reliable power and data transmission. The intuitive four-button LCD control display panel simplifies operation, while the integrated rigging yoke facilitates easy installation. Designed with a quiet fan cooling system, this ellipsoidal light maintains optimal performance without disrupting your environment. The multi-voltage universal auto-switching power supply (100-240V) ensures compatibility with various power sources, making the COLOUR 5 Profile an essential addition to any professional lighting setup.

Elation COLOUR 5 Profile Features

  • High CRI >94, 4,100 Total Lumens
  • Interchangeable Lens Options (19 Degree , 26 Degree , 36 Degree , 50 Degree )
  • (4) Blade Manual Framing Shutters
  • Variable Dimming Curve Modes
  • Flicker Free Operation for TV and FILM
  • Adjustable Refresh Frequency and Gamma Brightness
  • Quiet Fan Cooling

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • 180W RGBAM LED engine with >94 CRI for exceptional color accuracy
  • Delivers 4,100 lumens with interchangeable lens options (sold separately)
  • Supports B size metal HT gobos for creative lighting effects
  • DMX controlled with electronic strobe and customizable dimming curves
  • Flicker-free operation ideal for TV and film productions
  • Integrated rigging yoke and quiet fan cooling for seamless installation and operation

What's in the box:

  • Elation COLOUR 5 Profile 180W RGBMA LED Ellipsoidal Light
  • Locking Power Cable
  • 5-Pin DMX Cable
  • (Lens Not Included)
  • Elation 2 Year Limited Warranty
