Elmo ECART-SW Cart with Switcher
See all Elmo items

Elmo ECART-SW Public Address Cart with Switcher & Two 5" Speakers, 280Hz - 20kHz Audio Frequency Band

SKU: ELECARTSW
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Elmo ECART-SW Cart with Switcher Specifications

  • CRC-1 Switcher: Power Voltage

    12 V DC (AC Adapter AC100-240V)

  • CRC-1 Switcher: Power Consumption

    No Device connected: 2.1 W

  • CRC-1 Switcher: All connected

    3.3W

  • RGB: Connector Type

    D-Sub 15 (Female)

  • RGB: Video Signal

    0.7 Vp-p

  • RGB: Synch Signal Level

    TTL Level

  • RGB: Video Frequency Char.

    400 MHz, 3 dB or higher

  • RGB: Resolution

    VGA to SXGA, 1080p

  • RGB1: Connector Type

    D-Sub 15 (Female)

  • RGB1: Video Signal

    0.7 Vp-p

  • RGB1: Synch Signal Level

    TTL Level

  • RGB1: Video Frequency Char.

    400 MHz, 3 dB or higher

  • RGB1: Resolution

    VGA to SXGA, 1080p

  • RGB2: Connector Type

    D-Sub 15 (Female)

  • RGB2: Video Signal

    0.7 Vp-p

  • RGB2: Synch Signal Level

    TTL Level

  • RGB2: Video Frequency Char.

    400 MHz, 3 dB or higher

  • RGB2: Resolution

    VGA to SXGA, 1080p

  • Video: Connector Type

    RCA Pin Jack

  • Video: VBS Signal

    0.7 Vp-p

  • Audio1: Connector Type

    3.5mm diameter stereo mini jack

  • Audio1: Max input level

    Max volume at 1.0V: Gain=1.89

  • Audio2: Connector Type

    3.5mm diameter stereo mini jack

  • Audio2: Max input level

    Max volume at 1.0V: Gain=1.89

  • Video (L/R): Connector Type

    RCA Pin Jack

  • Video (L/R): Max input level

    Max volume at 1.0V: Gain=1.89

  • Audio: Connector Type

    3.5mm diameter stereo mini jack

  • Audio Frequency Band

    280 Hz - 20 kHz

  • Audio: Output level variable range

    2.0V

  • Microphone: Connector Type

    6.5mm-diameter microphone jack

  • Microphone Type

    Condenser Microphone, Moving-coil microphone

  • RS-232C: Connector Type

    D-sub 9 (Female)

  • RS-232C: No. of Tables

    8

  • RS-232C: No. of commands

    6

  • RS-232C: Baud Rate

    4800 / 9600 / 19200 / 38400 / 115200 bps

  • RS-232C: Data bits

    7 bits, 8 bits

  • RS-232C: Stop bits

    1 bits, 1.5 bits, 2 bits

  • RS-232C: Parity bit

    non/odd/even

  • RS-232C: Cable Length

    15m (standard value)

  • RS-232C: Cable type

    When using a specified projector, use the supplied cable. in other cases, a commercially available cable is required

  • RS-232C: Supported Projectors

    Use the RS Cable's D-sub 9 Connector

  • Operating Temp

    0-40 deg. C

  • Dimensions (H x D x W)

    Cart: 37.25 x 27.25 x 27.75" / 94.61 x 69.21 x 70.48cm
    CRC-1 Switcher: 168 x 90 x 43mm / 6.61 x 3.54 x 1.69"

  • Weight

    CRC-1 Switcher: 306g /10.79 oz

About Elmo ECART-SW Cart with Switcher

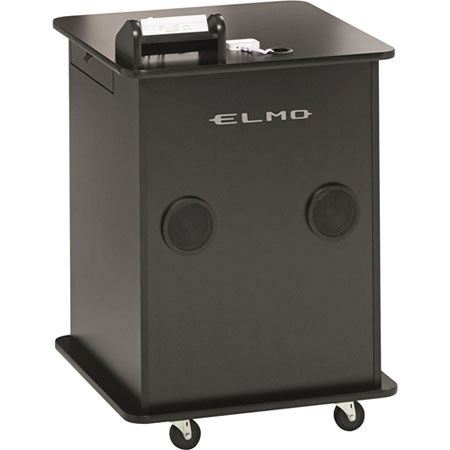

The Elmo ECART-SW Cart with Switcher can securely house A/V devices such as a document camera, projector, wireless tablet / laptop and speakers to offer a mobile, All-in-One solution for audiovisual presentation. A CRC-1 Switcher comes with the cart to help control the A/V devices.

With infrared and RS-232C signal interface, the CRC-1 switcher allows you to control switching between the A/V devices. In addition to being able to adjust the volume of the A/V equipment connected to the switcher, the CRC-1 Switcher offers control over projector functions such as on/off, input selection and image adjustment. You can also adjust the volume of the A/V equipment connected to the switcher.

Elmo ECART-SW Cart with Switcher Features

  • Cart: Perfect option for users who already own Elmo's line of educational devices and wish to have them in an all-in-one cart solution
  • Cart: Mobile cart for your presentation equipment
  • Cart: Safely and securely houses your equipment
  • CRC-1 Switcher: Switch between computer, document camera, or video (DVD)
  • CRC-1 Switcher: Adjust AV equipment sound volume
  • CRC-1 Switcher: Control microphone volume
  • CRC-1 Switcher: Control projector functions: on/off, input selection and image adjustment

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • CRC-1 Switcher

What's in the box:

  • Elmo Cart
  • CRC-1 Switcher
  • 2 x Extended Range 5 " Speakers
  • 25watt Amplifier
  • Elmo Warranty
