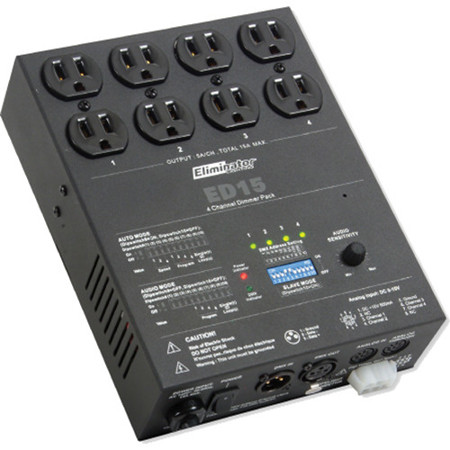

Eliminator 4 Channel 600W DMX Dimmer Pack, 15Amp Maximum Load
See all Eliminator items

Eliminator 4 Channel 600W DMX Dimmer Pack, 15Amp Maximum Load

SKU: ELED15
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Eliminator 4 Channel 600W DMX Dimmer Pack, 15Amp Maximum Load Specifications

  • Power Input

    AC 120V, 50-60Hz, 15A max.

  • Channel Output

    5A/CH., Total 15A max.

  • Fuse

    Loading: F6A 250V 5 x 20mm / 0.19 x 0.78" (x4)
    Electronic: F1A 250V 5 x 20mm / 0.19 x 0.78"

  • Dimensions

    261 x 173 x 62mm / 10.27 x 6.81 x 2.44"

  • Weight

    1.7kg / 3.74lbs (approx.)

About Eliminator 4 Channel 600W DMX Dimmer Pack, 15Amp Maximum Load

The Eliminator 4 Channel 600W DMX Dimmer Pack is designed to control your light fixtures movement. This 15-amp controller features 16 automatic and sound activated built-in programs. The ED-15 also features 600 watts per channel and comes with analog in and out points.

Eliminator 4 Channel 600W DMX Dimmer Pack, 15Amp Maximum Load Features

  • 4 channel professional digital dimmer pack, dual Edison sockets per channel
  • 16 built-in programs, single/loop programming available
  • SLAVE, AUTO and AUDIO function mode available
  • DMX & Analog Input/Output connector
  • All four channels are user assignable between Dimmer and Switch modes
  • Rope light connection provided
  • Audio sensitivity adjusting knob
  • DMX address setting available
  • "on" / "off" power switch with power indicator
  • LED-indicators for 1-4 Channels
  • Four 6A fuses for overloading protection, 250V 5x20mm

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • SLAVE, AUTO and AUDIO function mode available
  • DMX & Analog Input/Output connector
  • Rope light connection provided
  • Audio sensitivity adjusting knob
  • DMX address setting available
  • On/Off power switch

What's in the box:

  • Eliminator 4 Channel 600W DMX Dimmer Pack
  • Hanging Bracket
  • Eliminator 1 Year Limited Warranty
