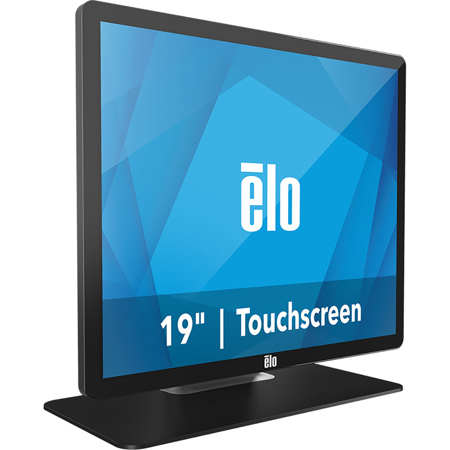

Elo Touch 1903LM 19" 5:4 SXGA Medical Grade Touchscreen TFT LCD Monitor with DICOM 14, Black

SKU: ELEE658394 MFR: E658394
Earn VIP Reward Points

Key Features

  • Experience exceptional picture quality with this 19" medical-grade touch display, perfect for detailed imagery.
  • Enjoy consistent brightness and clarity across the screen, ensuring optimal viewing in various lighting conditions.
  • Connect effortlessly with multiple input options, including HDMI and VGA, for versatile use in any setting.
  • Benefit from robust durability with an IP54-rated enclosure, providing protection against dust and splashes.
  • The compact 19-inch size and VESA mounting options make this monitor ideal for space-constrained environments.
  • Navigate with ease using the responsive PCAP 10-touch touchscreen, enhancing user interaction and workflow.
See More Product Details
Temporarily On Backorder?Expected Availability: 11/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elo Touch 1903LM Specifications

  • Color

    Black

  • Touch Technology & Capacity

    PCAP (TouchPro Projected Capacitive) - 10 Touch

  • Diagonal Size

    19" (48.26cm) diagonal, Active matrix TFT LCD (LED)

  • Aspect Ratio

    5:4

  • Active Area

    14.76 x 11.80" (374.78 x 299.83mm)

  • Resolution

    1280 x 1024 @ 60Hz (SXGA)

  • Other Supported Resolutions

    640 x 480 @ 60Hz
    720 x 400 @ 70Hz
    640 x 400 @ 70Hz
    800 x 500 @ 60Hz
    800 x 600 @ 56, 60Hz
    1024 x 768 @ 60Hz
    1280 x 720 @ 58Hz, 60Hz
    1280 x 800 @ 60Hz

  • Viewing Angle

    Horizontal: +/-89 Degree or 178 Degree total
    Vertical: +/-89 Degree or 178 Degree total

  • Number of Colors

    16.7 million

  • Brightness (typical)

    LCD Panel: 250 nits
    TouchPro PCAP: 225 nits

  • Response Time-total (typical)

    14 msec

  • Contrast Ratio

    1000:1

  • Touch Interface

    USB, Serial (via VGA)

  • Surface Treatment

    Anti-glare

  • On Screen Display

    Accessible through switches along the bottom:

    Controls: Menu, Up, Down, Select

    Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF, Touch Thru, Touch Interface, DICOM

  • On Screen Display (Contd.)

    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean
    Lockouts: OSD, Power

  • I/O Ports

    1x VGA (RS232 touch supported via E810917)
    1x HDMI
    1x Combo Jack
    1x DC jack
    1x USB Type-B
    1x USB 2.0 Type-A
    4x Micro USB

  • Speakers

    2x 2W internal speakers

  • Input Video Format

    VGA (VGA DE-15 (DB-15) Male connecter cable included)
    HDMI (HDMI cable included)

  • Input Video Frequency

    Horizontal: 30 - 82KHz
    Vertical: 50 - 75Hz

  • Power Consumption (Typical)

    Monitor + AC/DC adapter
    On (Default - 80% Brightness): 14.53W
    On (Typical - 100% Brightness): 16.36W
    Sleep: 0.79W
    Off: 0.37W

  • Input Voltage

    12VDC +/- 5%
    100-240VAC, 50/60Hz

  • Input Connector

    Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)

  • Peripheral Mounting

    4x Micro USB side ports (Top, Bottom, Left, Right)

  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    -4 Degree F to 140 Degree F (-20 Degree C to 60 Degree C)

  • Humidity

    Operating: 20% to 80%
    Storage: 10% to 95% (101.66 Degree F (38.7 Degree C) max wet bulb temperature)

  • MTBF

    50,000 hours demonstrated

  • Mounting Options

    VESA 4-hole 100mm mounting interface on rear of unit

  • Regulatory approvals and declarations

    Canada CUL, IC
    China CCC
    Europe CE
    United Kingdom UKCA
    Korea KCC
    Taiwan BSMI
    United States FCC, UL
    Japan VCCI
    International CB
    Australia RCM
    Russia EAC
    Mexico CoC
    India BIS
    RoHS, China RoHS, WEEE, REACH

  • DICOM

    DICOM Part 14 (AAPM secondary display)

  • Ingress Protection

    IP54 entire enclosure

  • Impact Protection

    IK06

  • Dimensions

    Without Stand: 16.91 x 13.96 x 1.64" (429.60 x 354.60 x 41.6mm)
    With Stand: 16.91 x 15.65 x 7.61" (429.60 x 397.65 x 193.40mm)

  • Weight

    With Stand: 13.9 lbs (6.3kg)
    Without Stand: 9.48 lbs (4.3kg)

  • UPC Code

    843173135427

About Elo Touch 1903LM

DICOM Medical Grade Touchscreen Monitor
The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.

Easy to Clean
Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays.

DICOM 14 - Designed for Consistent Image Review
Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.

Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.

Purpose-built for Healthcare
The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.

• Nurse Station
• Patient Rooms
• Laboratory
• Pharmacy
• Operating Theatres
• Medical Carts

Medical Device Ready
With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.

Configurability Made Easy

Flexible Mounting
Every monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts.

Note: This product is not an FDA-approved "medical device" or otherwise approved by the FDA and is not ISO-13485 compliant. Depending on the intended use, additional certifications may be required.

Elo Touch 1903LM Features

  • SXGA (1280 x 1024) Native Resolution
  • IP-54 Rating - Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution
  • IEC 60601 compliant power supply included
  • DICOM 14 - Ensures accurate and uniform image reproduction for reliable review
  • Integrated Touch - TouchPro PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience exceptional picture quality with this 19" medical-grade touch display, perfect for detailed imagery.
  • Enjoy consistent brightness and clarity across the screen, ensuring optimal viewing in various lighting conditions.
  • Connect effortlessly with multiple input options, including HDMI and VGA, for versatile use in any setting.
  • Benefit from robust durability with an IP54-rated enclosure, providing protection against dust and splashes.
  • The compact 19-inch size and VESA mounting options make this monitor ideal for space-constrained environments.
  • Navigate with ease using the responsive PCAP 10-touch touchscreen, enhancing user interaction and workflow.

What's in the box:

  • Elo Touch 1903LM 19" 5:4 SXGA Medical Grade Touchscreen TFT LCD Monitor (Black)
  • Monitor Stand
  • VGA Cable
  • HDMI Cable
  • Touch USB Cable
  • Audio Cable
  • Power Brick
  • Power Cable
  • EEI Label
  • DICOM Calibration Sheet
  • 2x Cable Cover Screw
  • 3x Tie Wrap
  • User Manual
  • Elo Touch 3 Year Limited Warranty
