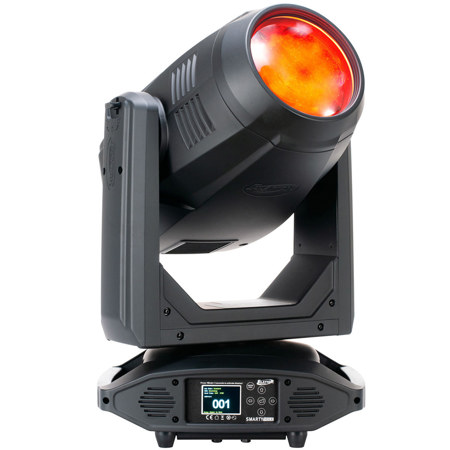

Elation SMARTY MAX 470W CMY Hybrid Spot/Beam/Wash Moving-Head Light Fixture

SKU: ELESM251 MFR: ESM251
Earn VIP Reward Points

Key Features

  • Unleash vibrant lighting with the SMARTY MAX, featuring a full CMY color mixing system for stunning visuals.
  • Experience powerful beams; this hybrid light boasts up to 1,784,448 LUX at 5m, perfect for large venues.
  • Create dynamic effects using dual gobo wheels with rotating and static patterns for unique projections.
  • Enjoy versatile control with DMX, RDM, Art-Net, and sACN support, fitting seamlessly into any setup.
  • Benefit from a long-lasting Philips MSD Platinum lamp, offering up to 4,000 hours for extended use.
  • Achieve precise focus with motorized zoom and auto-focus, ensuring crisp, clear light displays every time.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elation SMARTY MAX Specifications

  • Source

    Philips MSD Platinum 400 Flex 480W Lamp
    Variable Lamp Power 370/470/480W
    Automated Lamp Hibernation with Instant Recovery
    Up to 4,000 Hour Lamp Life

  • Photometrics

    21,000+ Lumen Total Fixture Output
    1.5 Degree Beam: 1,784,448 LUX (165,781 FC) @5m (16.4ft)
    3 Degree Spot: 462,508 LUX (42,968 FC) @5m (16.4ft)

  • Beam

    Zoom Range: 2 Degree - 20 Degree
    Beam Angle: 0.8 Degree - 6.5 Degree
    Field Angle: 1.8 Degree - 16.2 Degree

  • Spot

    Zoom Range: 3 Degree - 30 Degree
    Beam Angle: 1.7 Degree - 14.8 Degree
    Field Angle: 3 Degree - 26.5 Degree

  • Wash

    Zoom Range: 9 Degree - 35 Degree
    Beam Angle: 6.8 Degree - 29 Degree
    Field Angle: 12.8 Degree - 39.4 Degree

  • Effects

    Beam, Spot and Wash Modes
    Motorized Zoom
    Dual Frost Filter for Light Frost/ Full Wash
    4 Prisms on Dual Planes
    Iris
    CMY Color, Gobo, Prism Macros
    Motorized Focus with Auto-Focus Feature
    High Speed Shutter and Strobe

  • Pan Angle

    540 Degree /630 Degree

  • Tilt Angle

    248 Degree

  • Color

    Full CMY Color Mixing System
    Variable CTO
    13 Position Color Wheel

  • Gobos

    2 Gobo Wheels
    8 Interchangeable-Rotating / Indexing Glass Gobos
    14 Static-Stamped Metal Gobos
    Dual Track Animation Wheel

  • Control / Connections

    2 DMX Channel Modes (27 / 44 Channels)
    (6) Button Touch Panel
    Full Color 180 Degree Reversible LCD Menu Display
    DMX, RDM, Art-Net and sACN Protocol Support
    5pin DMX In/Out
    RJ45 Ethernet In/Out
    IP65 Locking Power Cable In/Out
    With Wired Digital Communication Network

  • Electrical / Thermal

    AC 100-240V 50/60Hz
    700 W Max Power Consumption (estimated)
    14 Degree F to 113 Degree F (-10 Degree C to 45 Degree C)
    BTU/hr (+/- 10%) 2387

  • Approvals / Ratings

    CE | cETLus | IP20

  • Dimensions (L x W x H)

    15.34 x 17.53 x 25.27" (389.8 x 445.3 x 642mm)

  • Weight

    60 lbs (27.2kg)

  • UPC Code

    837874009484

About Elation SMARTY MAX

It is the SMARTY MAX 470W CMY Hybrid Spot/Beam/Wash Moving-Head Light Fixture that redefines lighting versatility by combining high output with extended lamp life in a compact and lightweight design. This innovative fixture is powered by the new Philips MSD Platinum FLEX 400 lamp, offering an impressive 480W of power and a remarkable smart lamp life of up to 4,000 hours. The SMARTY MAX stands out as the world's first Hybrid fixture to incorporate a full Iris, enabling dynamic beam effects that enhance any lighting setup.

Engineered for extreme output, the SMARTY MAX delivers a stunning 21,000 lumens through its large 160mm front aperture. This ensures crisp, powerful beams, sharp gobos, and vibrant washes, making it an ideal choice for a wide range of applications. The fixture features CMY color mixing and variable CTO, allowing for seamless color transitions and customization.

The SMARTY MAX is equipped with an extensive FX package, including four prisms on two planes, dual frosts, and a dual gobo wheel. Additionally, the unique dual track animation feature adds depth and creativity to your lighting designs. Its compact and lightweight housing makes it easy to integrate into any setup, providing an excellent return on investment for professionals seeking a reliable and versatile lighting solution.

Elation SMARTY MAX Features

  • Extreme Output 3-in-1 Beam, Spot, Wash Hybrid Fixture
  • Flex Lamp Technology from 370 to 480W plus Smart Hibernation with up to 4,000 Hour Lamp Life
  • Full CMY Color Mixing System, Variable CTO, Color Wheel
  • Creative FX Package: 8 Rotating and 14 Static Gobos, Dual Track Animation, Iris 4x Prism on Dual Planes, 2x Frost
  • Ultra-Fast Zoom: Beam 2 Degree - 20 Degree | Spot 3 Degree - 30 Degree | Wash 9 Degree - 35 Degree

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Unleash vibrant lighting with the SMARTY MAX, featuring a full CMY color mixing system for stunning visuals.
  • Experience powerful beams; this hybrid light boasts up to 1,784,448 LUX at 5m, perfect for large venues.
  • Create dynamic effects using dual gobo wheels with rotating and static patterns for unique projections.
  • Enjoy versatile control with DMX, RDM, Art-Net, and sACN support, fitting seamlessly into any setup.
  • Benefit from a long-lasting Philips MSD Platinum lamp, offering up to 4,000 hours for extended use.
  • Achieve precise focus with motorized zoom and auto-focus, ensuring crisp, clear light displays every time.

What's in the box:

  • Elation SMARTY MAX 470W CMY Hybrid Spot/Beam/Wash Moving-Head Light Fixture
  • 2x Omega Bracket
  • IP65 Power Cable
  • Elation 2 Year Limited Warranty
