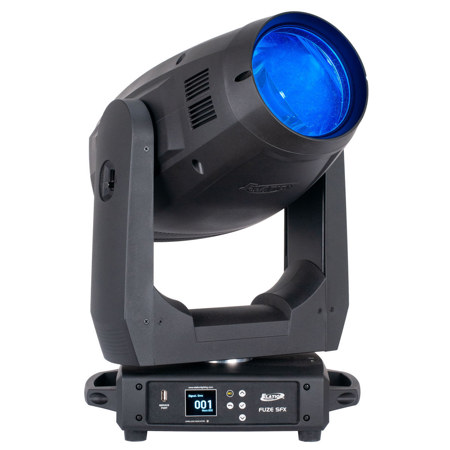

Elation FUZE SFX 300W CMY LED Spot/FX Moving Head, Black

SKU: ELFUZ406 MFR: FUZ406
Earn VIP Reward Points

Key Features

  • Create stunning light shows with the FUZE SFX moving head's vibrant CMY color mixing.
  • Unleash dynamic effects using the Elation fixture's 6-facet prism and diverse gobo options.
  • Enjoy precise control with DMX, RDM, Art-Net, and sACN protocols for seamless integration.
  • The 300W LED engine delivers powerful output, ensuring bright and impactful visuals for events.
  • Motorized zoom and focus offer flexible beam control, perfect for various stage and venue sizes.
  • With a long-lasting 20,000-hour LED life, this Elation lighting fixture provides reliable performance.
See More Product Details
Special Order?Estimated to Ship: 09/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elation FUZE SFX Specifications

Light
  • Fixture Type

    Moving Head

  • Light Source

    White LED - 300 W

  • Expected Lamp Life

    20,000 Hours

  • Colors

    Cyan, Magenta, Yellow, CTO (Color Temperature Orange), Red, Green, Orange, Pink, Blue

  • Photometrics

    38 Degree :
    3216 fc / 34,612 Lux at 3.3' (1m)
    129 fc / 1384 Lux at 16.4' (5m)
    32 fc / 346 Lux at 32.8' (10m)

  • Color Temperature

    6600K

  • Lumen Output

    12,135 Lumens

  • Beam Angle

    5 to 38 Degree

  • Field Angle

    5 to 42 Degree

  • Shutter / Strobe

    Electronic

  • Iris

    Yes, Electronic

  • Focus

    Motorized

  • Zoom Adjustment

    Motorized, 5 to 38 Degree

  • Dimming

    16-Bit 0 to 100% with 6 Dimmer Modes

  • Prism

    6-Facet Linear
    6-Facet Circular

Performance

Jump to...
  • Operating Modes

    DMX, Primary/Secondary, Program

  • Macros / Programs

    4x Internal Program

  • Effects

    Strobe (Variable Speed)

  • Gobos

    8x Removable Glass Gobo
    10x Fixed Gobo

  • Gobo Size

    Glass Gobo:
    Outer Diameter: 0.6" (16.4mm)
    Max Image Size: 0.5" (12.5mm)

  • Color Accuracy Index

    CRI: 68

  • Refresh Rate

    900 Hz to 1500 Hz

Movement

Jump to...
  • Pan/Tilt Inversion

    Yes

  • Movement Resolution

    16-Bit

Control

Jump to...
  • Control Protocols

    DMX512, W-DMX, RDM, Art-Net, sACN

  • DMX Channel Modes

    31-Channel

  • Display / Controls

    LCD / 4-Button

  • Remote Control

    No

Connectivity

Jump to...
  • Inputs/Outputs

    1x XLR 5-Pin DMX Input
    1x XLR 3-Pin DMX Output
    1x RJ45 Data Input
    1x RJ45 Data Output

  • AC Input Power

    100 to 240 VAC, 50/60 Hz

  • AC Power Connector

    Input: 1x powerCON TRUE1
    Output: 1x powerCON TRUE1

  • Power / Current Consumption

    432 W

Physical

Jump to...
  • Environmental Resistance

    Dust-Resistant (IP20)

  • Operating Conditions

    46 to 145 Degree F (14 to 113 Degree C)

  • Mounting

    Floor Base, Omega Bracket

  • Included Accessories

    1x Power Cable

  • Duty Cycle

    No

  • Exterior Color

    Black

  • Cooling

    Fan (Variable Speed)

  • Dimensions

    23.4 x 14.3 x 9.2" (59.4 x 36.3 x 23.4cm)

  • Weight

    46.3 lbs (21kg)

  • UPC Code

    810008260852

About Elation FUZE SFX

When you need a versatile and powerful lighting solution, the Elation FUZE SFX 300W CMY LED Spot/FX Moving Head in Black is the perfect choice. This innovative LED Spot FX fixture is engineered for a wide range of applications, offering a compact yet robust design that meets the demands of any lighting setup. With its 300W white LED engine, the FUZE SFX delivers an impressive output of over 12,000 lumens, ensuring bright and vivid illumination.

The FUZE SFX excels in versatility, capable of projecting everything from tight beams to expansive washes, thanks to its highly efficient optical design. It features a zoom range from 4.5 degrees to 38 degrees, allowing for precise control over the light spread. This flexibility is complemented by 18 meticulously crafted gobos, enabling the creation of stunning mid-air effects and detailed image projections.

Enhance your stage lighting with the FUZE SFX's variable frost filter, which provides smooth and even stage washes. The fixture's seamless CMY color-mixing system, combined with an additional color wheel, offers a wide spectrum of vibrant colors to suit any mood or theme. For added creativity, the FUZE SFX includes dual independent rotating and overlaying prisms, as well as a fast iris, expanding your options for dynamic lighting effects.

Whether you're aiming for breathtaking effects, precise projections, or brilliant washes, the Elation FUZE SFX 300W CMY LED Spot/FX Moving Head is a remarkable choice that delivers exceptional performance in a compact form. Transform any stage with this powerful luminaire and experience the difference in lighting quality and versatility.

Elation FUZE SFX Features

  • 300W LED 6,600K White LED Engine
  • 12,135 Total Lumen Fixture Output
  • Spot and Effects Fixture
  • Zoom Range from 4.5 Degree to 38 Degree
  • Variable CMY and 7-Position Color Wheel
  • High CRI and CTO Filter
  • 8 Rotating and 10 Fixed Gobos
  • Dual Independent Prisms for Layering
  • Motorized Iris
  • Variable Wash Frost Filter

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Create stunning light shows with the FUZE SFX moving head's vibrant CMY color mixing.
  • Unleash dynamic effects using the Elation fixture's 6-facet prism and diverse gobo options.
  • Enjoy precise control with DMX, RDM, Art-Net, and sACN protocols for seamless integration.
  • The 300W LED engine delivers powerful output, ensuring bright and impactful visuals for events.
  • Motorized zoom and focus offer flexible beam control, perfect for various stage and venue sizes.
  • With a long-lasting 20,000-hour LED life, this Elation lighting fixture provides reliable performance.

What's in the box:

  • Elation FUZE SFX 300W CMY LED Spot/FX Moving Head (Black)
  • 2x Omega Bracket
  • Locking Power Cable
  • Elation 2 Year Limited Warranty
