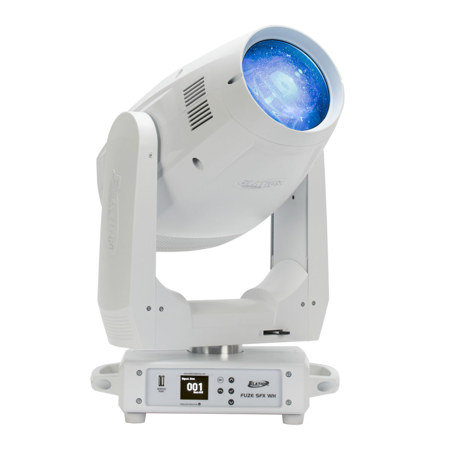

Elation FUZE SFX 300W CMY LED Spot/FX Moving Head, White

SKU: ELFUZ418 MFR: FUZ418
Earn VIP Reward Points

Key Features

  • Unleash vibrant color washes with the FUZE SFX moving head's CMY color mixing system.
  • Create stunning aerial effects using the motorized zoom, adjustable from 5 to 38 degrees.
  • Enjoy precise control with 16-bit dimming & versatile DMX, Art-Net, and sACN protocols.
  • Project custom patterns with 8 rotating & 10 static gobos for unique lighting designs.
  • This LED spot boasts 12,135 lumens output & a 6600K color temperature for crisp visuals.
  • Use the FUZE SFX's linear and circular prisms to multiply beams for dynamic light shows.
See More Product Details
Special Order?Estimated to Ship: 08/09/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elation FUZE SFX Specifications

Light
  • Fixture Type

    Moving Head

  • Light Source

    White LED - 300 W

  • Expected Lamp Life

    20,000 Hours

  • Colors

    Cyan, Magenta, Yellow, CTO (Color Temperature Orange), Red, Green, Orange, Pink, Blue

  • Photometrics

    38 Degree :
    3216 fc / 34,612 Lux at 3.3' (1m)
    129 fc / 1384 Lux at 16.4' (5m)
    32 fc / 346 Lux at 32.8' (10m)

  • Color Temperature

    6600K

  • Lumen Output

    12,135 Lumens

  • Beam Angle

    5 to 38 Degree

  • Field Angle

    5 to 42 Degree

  • Shutter / Strobe

    Electronic

  • Iris

    Yes, Electronic

  • Focus

    Motorized

  • Zoom Adjustment

    Motorized, 5 to 38 Degree

  • Dimming

    16-Bit 0 to 100% with 6 Dimmer Modes

  • Prism

    6-Facet Linear
    6-Facet Circular

Performance

Jump to...
  • Operating Modes

    DMX, Primary/Secondary, Program

  • Macros / Programs

    4x Internal Program

  • Effects

    Strobe (Variable Speed)

  • Gobos

    8x Removable Glass Gobo
    10x Fixed Gobo

  • Gobo Size

    Glass Gobo:
    Outer Diameter: 0.6" (16.4mm)
    Max Image Size: 0.5" (12.5mm)

  • Color Accuracy Index

    CRI: 68

  • Refresh Rate

    900 Hz to 1500 Hz

Movement

Jump to...
  • Pan/Tilt Inversion

    Yes

  • Movement Resolution

    16-Bit

Control

Jump to...
  • Control Protocols

    DMX512, W-DMX, RDM, Art-Net, sACN

  • DMX Channel Modes

    31-Channel

  • Display / Controls

    LCD / 4-Button

  • Remote Control

    No

Connectivity

Jump to...
  • Inputs/Outputs

    1x XLR 5-Pin DMX Input
    1x XLR 3-Pin DMX Output
    1x RJ45 Data Input
    1x RJ45 Data Output

  • AC Input Power

    100 to 240 VAC, 50/60 Hz

  • AC Power Connector

    Input: 1x powerCON TRUE1
    Output: 1x powerCON TRUE1

  • Power / Current Consumption

    432 W

Physical

Jump to...
  • Environmental Resistance

    Dust-Resistant (IP20)

  • Operating Conditions

    46 to 145 Degree F (14 to 113 Degree C)

  • Mounting

    Floor Base, Omega Bracket

  • Included Accessories

    1x Power Cable

  • Duty Cycle

    No

  • Exterior Color

    White

  • Cooling

    Fan (Variable Speed)

  • Dimensions

    23.4 x 14.3 x 9.2" (59.4 x 36.3 x 23.4cm)

  • Weight

    46.3 lbs (21kg)

  • UPC Code

    810008262528

About Elation FUZE SFX

Make your stage lighting unforgettable with the Elation FUZE SFX 300W CMY LED Spot/FX Moving Head in White. This innovative LED Spot FX fixture is expertly crafted for diverse applications that demand a compact yet powerful multi-purpose luminaire. The FUZE SFX excels in delivering both tight beams and expansive washes, thanks to its highly efficient optical design. Powered by a robust 300W white LED engine, it produces an impressive output of over 12,000 lumens.

The FUZE SFX is equipped with 18 meticulously designed gobos and features a versatile zoom range from 4.5 degrees to 38 degrees, allowing it to create breathtaking mid-air effects and precise image projections with ease. Its variable frost filter ensures even stage washes, while the seamless CMY color-mixing system combined with a color wheel offers a stunning array of vibrant colors.

Enhance your lighting design with dual independent rotating and overlaying prisms, along with a fast iris, which complete the fixture's comprehensive feature set. Whether you're aiming for amazing effects, outstanding projections, or brilliant bright washes, the Elation FUZE SFX 300W CMY LED Spot/FX Moving Head is a truly remarkable compact powerhouse that elevates any stage performance.

Elation FUZE SFX Features

  • 300W LED 6,600K White LED Engine
  • 12,135 Total Lumen Fixture Output
  • Spot and Effects Fixture
  • Zoom Range from 4.5 Degree to 38 Degree
  • Variable CMY and 7-Position Color Wheel
  • High CRI and CTO Filter
  • 8 Rotating and 10 Fixed Gobos
  • Dual Independent Prisms for Layering
  • Motorized Iris
  • Variable Wash Frost Filter

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Unleash vibrant color washes with the FUZE SFX moving head's CMY color mixing system.
  • Create stunning aerial effects using the motorized zoom, adjustable from 5 to 38 degrees.
  • Enjoy precise control with 16-bit dimming & versatile DMX, Art-Net, and sACN protocols.
  • Project custom patterns with 8 rotating & 10 static gobos for unique lighting designs.
  • This LED spot boasts 12,135 lumens output & a 6600K color temperature for crisp visuals.
  • Use the FUZE SFX's linear and circular prisms to multiply beams for dynamic light shows.

What's in the box:

  • Elation FUZE SFX 300W CMY LED Spot/FX Moving Head (White)
  • 2x Omega Bracket
  • Locking Power Cable
  • Elation 2 Year Limited Warranty
