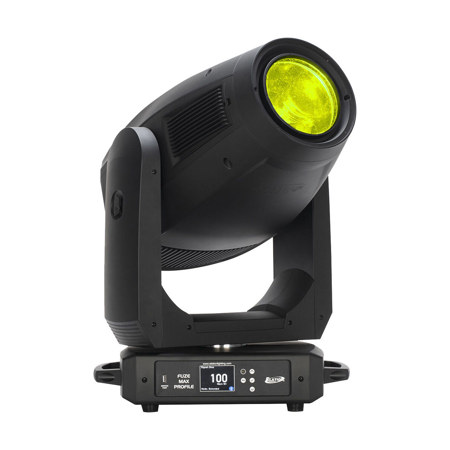

Elation FUZE MAX PROFILE 800W Full Spectrum RGBMA LED Framing Profile Moving Head

SKU: ELFUZ546 MFR: FUZ546
Earn VIP Reward Points

Key Features

  • Experience superior sound with the Elation FUZE MAX PROFILE's powerful 800W LED engine.
  • Achieve stunning visual effects using the moving head's versatile motorized zoom feature.
  • Create unique lighting designs with 4 rotating framing blades and precise indexing control.
  • Enjoy vibrant colors with the RGBMA color array & CMY emulation for professional lighting.
  • Control your lighting setup easily with DMX, RDM, Art-NET, and sACN protocol support.
  • Benefit from the Elation FUZE MAX PROFILE's robust build, perfect for touring & events.
See More Product Details
Special Order?Estimated to Ship: 10/25/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Elation FUZE MAX PROFILE Specifications

  • Source

    800W 6,500K RGBMA LED Engine
    30,000 Hour Average LED Life

  • Photometrics

    21.000 Total Lumen Output
    CRI 92
    Zoom Range 7 Degree - 53 Degree
    Beam Angle 6.6 Degree - 50.3 Degree
    Field Angle 7.8 Degree - 55 Degree

  • Effects

    Motorized Zoom
    4 Rotating Full Blackout Framing Blades, +/- 60 Degree Index
    Dual Variable Frost Filter (Medium/ Wash)
    4 Facet Round, 4 Facet Linear Prism
    Motorized Iris
    Variable 16-bit Dimming Curve Modes
    High Speed Electronic Shutter and Strobe
    Pan Angle: 540 Degree / 630 Degree
    Tilt Angle: 250 Degree

  • Color

    RGBMA Color Array
    CMY Emulation
    Variable CCT 2400K - 8500K
    Green/Magenta Shift
    Virtual Gel Swatch Book

  • Gobos

    1x 6 Rotating / Indexing Interchangeable Glass Gobos
    1x 7 Fixed Interchangeable Glass Gobos
    Animation Wheel

  • Control / Connections

    4 DMX Channel Modes (RGBMA 40/61) (CMY 38/57)
    16-bit Pan, Tilt, and Dimming Control
    DMX Adjustable LED Frequency
    DMX, RDM, Art-NET, sACN Protocol Support
    4 Button Touch Control Panel
    Full Color 180 Degree Reversible LCD Menu Display
    16 Bit Resolution Adjustable Movement
    5pin DMX In/Out
    Locking Ethernet In/Out
    IP65 Locking Power In
    With Wired Digital Communication Network

  • Electrical / Thermal

    AC 100-240V - 50/60Hz
    1126W Max Power Consumption
    14 Degree F to 113 Degree F (-10 Degree C to 45 Degree C)
    BTU/hr (+/- 10%) 3839.66

  • Center Spacing (No Snoot)

    26.1" (662mm)

  • Center Spacing (With Snoot)

    29.8" (757mm)

  • Dimensions

    18.19 x 21.26 x 28.3" (462 x 540 x 719mm)
    With Snoot: 23.2 x 21.26 x 30.4" (590 x 540 x 771mm)

  • Weight

    76.3 lbs (34.6kg)

  • UPC Code

    810008263020

About Elation FUZE MAX PROFILE

Under the spotlight of innovation, the FUZE MAX PROFILE 800W Full Spectrum RGBMA LED Framing Profile Moving Head stands as a pinnacle of advanced lighting technology. This full spectrum automated LED framing fixture is meticulously engineered for theater, television, and a diverse range of precision lighting applications, offering unparalleled versatility and performance. At its core, the fixture boasts a 92 CRI engine powered by an 800W 5-color homogenized LED array, which includes Red, Green, Blue, Mint, and Amber sources. This sophisticated LED configuration ensures precise color reproduction and dynamic whites, delivering an impressive output exceeding 21,000 lumens.

Designed to meet the demands of any professional setting, the FUZE MAX PROFILE offers a virtual color temperature, along with Magenta/Green adjustment and CMY emulation, granting lighting designers immediate access to a rich and vibrant LED color palette. This makes it an ideal choice for applications requiring a fully automated framing fixture with an exceptional and captivating color range and quality.

The FUZE MAX PROFILE is equipped with a comprehensive feature set that enhances its functionality and creative potential. It includes a rotating gobo wheel, a fixed gobo wheel, an animation wheel, dual frost filters, a prism, and an iris, all contributing to its versatility and precision. Despite its powerful capabilities, this automated framing fixture operates quietly, making it suitable for environments where noise levels must be minimized. Whether for dramatic stage productions or intricate television lighting setups, the FUZE MAX PROFILE delivers outstanding performance and reliability, setting a new standard in professional lighting solutions.

Elation FUZE MAX PROFILE Features

  • Full Spectrum 800W RGBMA LED Engine
  • Precise dynamic whites from 2400 - 8500K
  • Instant color changes, Natural color transitions
  • Rich and intense primary colors
  • Rotating and Fixed Gobos plus Animation Wheel
  • Full Blackout Framing System
  • Iris, Prism, and Dual Frost
  • Wide Zoom Range from 7 Degree to 53 Degree
  • Large 140mm front aperture

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience superior sound with the Elation FUZE MAX PROFILE's powerful 800W LED engine.
  • Achieve stunning visual effects using the moving head's versatile motorized zoom feature.
  • Create unique lighting designs with 4 rotating framing blades and precise indexing control.
  • Enjoy vibrant colors with the RGBMA color array & CMY emulation for professional lighting.
  • Control your lighting setup easily with DMX, RDM, Art-NET, and sACN protocol support.
  • Benefit from the Elation FUZE MAX PROFILE's robust build, perfect for touring & events.

What's in the box:

  • Elation FUZE MAX PROFILE 800W Full Spectrum RGBMA LED Framing Profile Moving Head
  • 2x Omega Bracket
  • IP65 Rated Twist-Lock Power Cable
  • Elation 2 Year Limited Warranty
