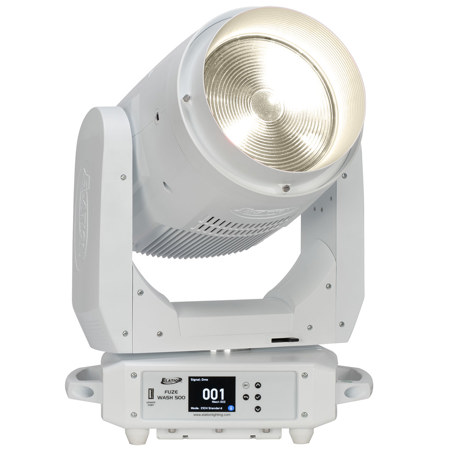

Elation FUZE WASH 500 500W Full Spectrum RGBMA LED Wash Moving Head, White

SKU: ELFUZ567WH MFR: FUZ567WH
Earn VIP Reward Points

Key Features

  • Unleash vibrant washes with the FUZE WASH 500's full spectrum RGBMA LED engine for stunning light shows.
  • Achieve precise color mixing with CMY and RGB emulation, plus a virtual gel swatch book for unique effects.
  • Enjoy versatile control options: DMX, RDM, E-FLY wireless, Art-Net, and sACN protocol support included.
  • Create dynamic scenes with motorized zoom, ranging from a tight 6° beam to a wide 53° field angle.
  • The FUZE WASH 500 offers adjustable LED frequency, ensuring flicker-free performance on camera.
  • This moving head wash light features a robust design, perfect for concerts, events, and studio applications.
See More Product Details
Special Order?Estimated to Ship: 08/22/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elation FUZE WASH 500 Specifications

  • Color

    White

  • Color

    White

  • Source

    500W 6,500K RGBMA (Red, Green, Blue, Mint, Amber) LED Engine
    30,000 Hour Average LED Life

  • Photometrics

    17,000 Total Lumen Fixture Output
    CRI 92
    Zoom Range 6 Degree - 53 Degree
    Field Angle 12.1 Degree - 63.6 Degree
    Beam Angle 6.3 Degree - 53.7 Degree

  • Effects

    Motorized Zoom
    Optional Indexable Ovalizer Lens
    Optional Motorized Barn Doors
    Variable 16-bit Dimming Curve Modes
    High Speed Electronic Shutter and Strobe

  • Control / Connections

    DMX Channel Modes
    With Barndoor: 6 Channel modes - 21Ch, 30Ch, 19Ch CMY, 26Ch Ex, 19Ch RGB, 26Ch RGB Ex,
    Without Barndoor: 6 Channel modes - 17Ch, 26Ch, 15Ch CMY, 22Ch CMY, 15Ch RGB, 22Ch RGB Ex
    16-bit Pan, Tilt, and Dimming Control
    DMX Adjustable LED Frequency

  • Control / Connections (Contd.)

    DMX, RDM, E-FLY Wireless, Art-Net, sACN Protocol Support
    4 Button Touch Control Panel
    Full Color 180 Degree Reversible LCD Menu Display
    Locking 5pin XLR Connector In/Out
    Locking RJ45 Ethernet Connector In/Out
    Locking IP65 Power Connector In/Out
    USB Connection (Firmware Updates)

  • Electrical / Thermal

    AC 100-240V - 50/60Hz
    Max Power Consumption 609W
    14 Degree F to 113 Degree F (-10 Degree C to 45 Degree C)
    BTU/hr (+/- 10%) 2151.71

  • Center Spacing

    23.6" (600mm)

  • Dimensions

    Without Snoot: 13.8 x 16.1 x 21.7" (350 x 407.9 x 550.5mm)
    With Snoot: 15.3 x 16.1 x 21.7" (389.5 x 407.9 x 590mm)

  • Weight

    40.89 lbs (18.5kg)

  • UPC Code

    810008263952

About Elation FUZE WASH 500

An exceptional lighting solution for theater, television, and event production, the FUZE WASH 500 500W Full Spectrum RGBMA LED Wash Moving Head in White is engineered to meet the demands of precision lighting applications. This powerful automated LED Fresnel wash fixture features a high-CRI engine that utilizes a sophisticated 5-color homogenized LED array. The array includes Red, Green, Blue, Mint, and Amber sources, ensuring accurate color reproduction and delivering an impressive output of up to 17,000 lumens with a maximum CRI of 92.

Designed for versatility, the FUZE WASH 500 offers virtual color temperature adjustments, Magenta/Green correction, and both CMY and RGB emulation, providing lighting designers with immediate access to a broad spectrum of vibrant colors. This fixture is ideal for any setting that requires an automated Fresnel fixture capable of producing outstanding and impactful colors, a wide zoom range, and a soft, even field.

For enhanced remote beam control, the FUZE WASH 500 offers an optional indexable ovalizer lens and a fully automated barn door system. These features make it a perfect choice for professionals seeking precision and flexibility in their lighting design. Whether for live performances, broadcast environments, or special events, the FUZE WASH 500 stands out as a reliable and innovative lighting solution.

Elation FUZE WASH 500 Features

  • 500W Full Spectrum RGBMA LED Engine
  • Up to 17,000 Total Lumen Fixture Output @ 6500K
  • CRI up to 92
  • Wide Zoom Range from 6 Degree to 53 Degree
  • Variable 16-bit Dimming Curve Modes
  • CMY Emulation
  • Virtual Color Correction
  • Green/Magenta Shift
  • Virtual Gel Swatch Book

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Unleash vibrant washes with the FUZE WASH 500's full spectrum RGBMA LED engine for stunning light shows.
  • Achieve precise color mixing with CMY and RGB emulation, plus a virtual gel swatch book for unique effects.
  • Enjoy versatile control options: DMX, RDM, E-FLY wireless, Art-Net, and sACN protocol support included.
  • Create dynamic scenes with motorized zoom, ranging from a tight 6° beam to a wide 53° field angle.
  • The FUZE WASH 500 offers adjustable LED frequency, ensuring flicker-free performance on camera.
  • This moving head wash light features a robust design, perfect for concerts, events, and studio applications.

What's in the box:

  • Elation FUZE WASH 500 500W Full Spectrum RGBMA LED Wash Moving Head (White)
  • Omega Brackets
  • Snoot
  • powerCON TRUE1 Power Cord
  • Elation 2 Year Limited Warranty
