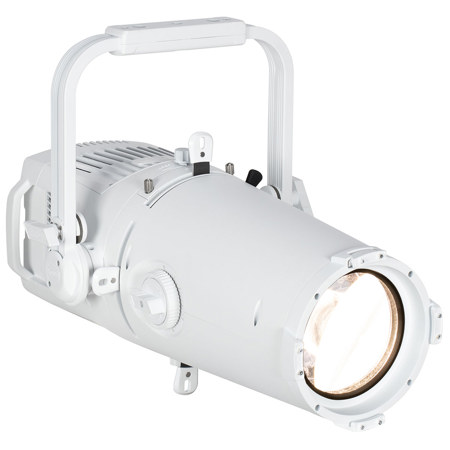

Elation KL PROFILE FC 305W Full Spectrum RGBMA LED Ellipsoidal Light, White

SKU: ELKLP423 MFR: KLP423
Earn VIP Reward Points

Key Features

  • Experience superior color mixing with the Elation KL PROFILE FC spotlight's RGBMA LED.
  • Achieve precise lighting control with manual zoom & framing blades on this LED spotlight.
  • Enjoy versatile gobo projections using the rotating gobo holder for unique stage effects.
  • Easily manage settings via the intuitive touch control panel with LCD menu display.
  • Benefit from wireless DMX control using Elation's E-FLY internal wireless transceiver.
  • Create dynamic lighting with variable CCT from 2400K-8500K for any event atmosphere.
See More Product Details
Special Order?Estimated to Ship: 09/11/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elation KL PROFILE FC Specifications

  • Color

    White

  • Color

    White

  • Source

    305W 6,500K RGBMA LED Engine
    30,000 Hour Average LED Life

  • Photometric Data

    10,600 Total Lumen Output
    CRI: 93.5
    Zoom Range: 6 Degree - 50 Degree
    Beam Angle: 5.9 Degree - 45.6 Degree
    Field Angle: 6.6 Degree - 50 Degree

  • Effects

    Manual Locking Zoom, Focus
    4 Manual Rotating Full Blackout Framing Blades
    Manual Barrel Rotation
    Integrated Manual Iris
    Variable 16-bit Dimming Curves

  • Gobos

    1x 16bit Rotating / Indexing Interchangeable Glass Gobo

  • Control / Connections

    8 DMX Channel Modes (1/5/12/21) CMY(10/17) RGB(10/17)
    DMX Adjustable LED Frequency
    DMX, RDM Protocol Support
    4 Button Touch Control Panel
    Encoder Control for Standalone Operation
    Full Color 180 Degree Reversible LCD Menu Display
    5pin DMX In/Out
    IP65 Locking Power In/Out
    Elation's E-FLY Internal Wireless DMX Transceiver

  • Electrical / Thermal

    AC 100-240V - 50/60Hz
    358W Max Power Consumption
    14 Degree F to 113 Degree F (-10 Degree C to 45 Degree C)
    BTU/hr (+/- 10%) 1124.1

  • Front Accessory

    7.5" Front Accessory Slot

  • Dimensions (L x W x H)

    Without Yoke: 25.1 x 15.4 x 11" (637.6 x 390 x 279mm)

  • Weight

    35.2 lbs (15.9kg)

  • UPC Code

    810008263815

About Elation KL PROFILE FC

Overcome the challenges of precision lighting with the KL PROFILE FC 305W Full Spectrum RGBMA LED Ellipsoidal Light. This manual LED framing fixture is expertly crafted for a diverse range of lighting applications, making it an ideal choice for theaters, performance venues, and live shows. Featuring an integrated manual zoom range from 6 to 50 degrees, this fixture eliminates the need for additional lens tubes, thereby reducing costs and complexity while offering exceptional flexibility.

The KL PROFILE FC is equipped with a 93.5 CRI engine that utilizes a sophisticated 5-color homogenized LED array, comprising Red, Green, Blue, Mint, and Amber sources. This powerful 305W LED array ensures accurate color reproduction and delivers an impressive output of over 10,000 lumens. With virtual color temperature and Magenta/Green adjustment capabilities, lighting designers can easily access and manipulate the extensive LED color spectrum to suit their creative needs.

Designed with user convenience in mind, the fixture includes an integrated manual Iris for enhanced beam control and a 16-bit rotating/indexing gobo slot. The fixture is shipped with the KL Profile Designer Gobo Set, featuring 10 high-resolution glass gobos, and the gobo slot is conveniently accessible from the top of the fixture. For those seeking versatility, the optional Fresnel Lens Conversion Kit transforms the fixture into a framing wash light, ensuring a uniform appearance and consistent fixture spacing.

The KL PROFILE FC is engineered for quiet operation, featuring advanced fan controls that include Elation's Mute Mode, which disables the internal cooling fan for noise-sensitive environments. Its enhanced optical design and specialized lens coatings guarantee precise, razor-sharp projections, eliminating unwanted color shifts and aberrations across all zoom, focus, or framing positions.

Whether you require an ellipsoidal or wash fixture, the KL PROFILE FC stands out with its remarkable color range, quality, and adaptable zoom capabilities, making it a superior choice for any lighting application demanding excellence and versatility.

Elation KL PROFILE FC Features

  • Compact Zooming Ellipsoidal
  • Extended Color RGBMA LED Engine, 93.5 CRI
  • Exceeding 10.000 lumens
  • Integrated Rotating Gobo Slot
  • Full Blackout Manual Framing System
  • Wide Zoom Range from 6 Degree to 50 Degree
  • 7.5" Front Accessory Holder
  • Includes 7.5" Gel Frame
  • Designer Gobo set with 10 high-resolution glass gobos
  • Optional Fresnel Wash Lens Conversion Kit

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience superior color mixing with the Elation KL PROFILE FC spotlight's RGBMA LED.
  • Achieve precise lighting control with manual zoom & framing blades on this LED spotlight.
  • Enjoy versatile gobo projections using the rotating gobo holder for unique stage effects.
  • Easily manage settings via the intuitive touch control panel with LCD menu display.
  • Benefit from wireless DMX control using Elation's E-FLY internal wireless transceiver.
  • Create dynamic lighting with variable CCT from 2400K-8500K for any event atmosphere.

What's in the box:

  • Elation KL PROFILE FC 305W Full Spectrum RGBMA LED Ellipsoidal Light (White)
  • Locking Power Cable
  • Designer Gobo Set (10 Gobos)
  • Rotating Gobo Holder
  • 7.5" Gel Frame
  • Elation 2 Year Limited Warranty
