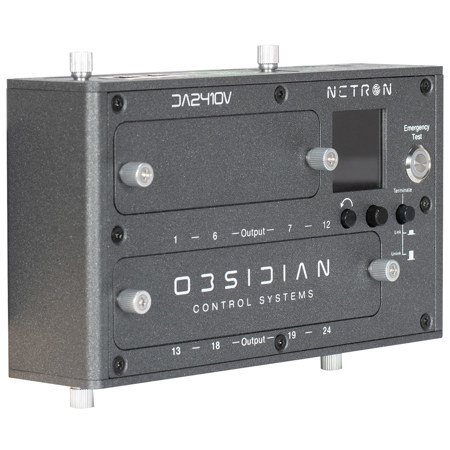

Elation DA2410V 24-Port DIN-Rail 0-10V Ethernet DMX Gateway

SKU: ELNDR241 MFR: NDR241
Earn VIP Reward Points

Key Features

  • Seamlessly manage your lighting with this 24-port DMX gateway for ultimate control.
  • Easily integrate with Ethernet for a robust lighting control network using this gateway.
  • Enjoy versatile mounting options with DIN rail and wall-mount capabilities for any setup.
  • Rely on durable, pro-grade Elation build for long-lasting performance in any venue.
  • Clearly view settings on the full-color OLED display for easy configuration of DMX settings.
  • Connect various devices via RJ45 Gigabit Ethernet for a flexible lighting interface.
See More Product Details
Special Order?Estimated to Ship: 08/08/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elation DA2410V Specifications

  • Mounting

    DIN Rail
    Wall-mount

  • Connections

    Front:
    Full color 1.3" OLED display
    Encoder w. Push to Select / Exit Button
    24-port Analog connection (Terminal Block) or Cover Plate
    (2) RJ45 Gigabit Ethernet (1x POE) + DMX In/Out or Cover Plate

    Top:
    (2) RJ45 Gigabit Ethernet (1x POE) + DMX In/Out or Cover Plate
    DC In (2pin Block)

    Bottom:
    24-port Analog connection (Terminal Block) or Cover Plate
    Emergency Contact (3pin Terminal Block, Dry Contact or 12V)

  • Electrical

    DC 12-48V

  • Approvals / Ratings

    cETLus / CE / IP20 / UL924

  • Dimensions (L x W x H)

    4.7 x 5.6 x 2.1" (116 x 143 x 52mm)

  • UPC Code

    810008264461

About Elation DA2410V

The Netron DA2410V 24-Port DIN-Rail 0-10V Ethernet DMX Gateway is a versatile and compact solution designed for seamless integration into various lighting control systems. This gateway offers 24x 0-10V analog outputs, making it an ideal choice for controlling a wide range of lighting fixtures. It can be easily configured using its intuitive OLED display, supporting multiple protocols such as DMX, Art-Net, or sACN as the source, ensuring compatibility with diverse network environments.

The innovative connector configurations of the Netron DA2410V provide flexibility and convenience, allowing users to choose between screw-terminals or IDC (Insulation Displacement Connectors). These options are facilitated through exchangeable plates, which can be mounted on the top, bottom, or front of the device, catering to installer preferences and space constraints. Furthermore, the device offers adaptable mounting solutions with interchangeable DIN Rail and wall mount brackets.

Engineered to accommodate a wide range of power inputs, the Netron DA2410V supports DC input from 12-48V, enhancing its adaptability in various installation scenarios. It is UL924 compliant, featuring a dedicated emergency cue, wet or dry contact closure, and a prominent test button with integrated LED feedback for reliable emergency operations. Users can record a custom cue, assign unique levels per channel, or set all analog outputs to 100%, providing comprehensive control over emergency settings. Additionally, the emergency off timeout is customizable, and individual channels can be excluded from the emergency cue, offering tailored solutions for specific requirements.

Elation DA2410V Features

  • 24x 0-10V 40mA Sink Outputs
  • Screw terminal or IDC connectivity
  • Configurable Top, Bottom and Front ports
  • DMX, RDM, Artnet and sACN support
  • Factory and user presets for plug and play setup
  • 12-48V DC power
  • 1.3" OLED Display with rotary knob
  • 99 Internal cues with fade and delay time
  • Emergency Cue System with test button and contact closure
  • Remote configuration via internal webpage
  • Powder-coated aluminum DIN Rail housing

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Seamlessly manage your lighting with this 24-port DMX gateway for ultimate control.
  • Easily integrate with Ethernet for a robust lighting control network using this gateway.
  • Enjoy versatile mounting options with DIN rail and wall-mount capabilities for any setup.
  • Rely on durable, pro-grade Elation build for long-lasting performance in any venue.
  • Clearly view settings on the full-color OLED display for easy configuration of DMX settings.
  • Connect various devices via RJ45 Gigabit Ethernet for a flexible lighting interface.

What's in the box:

  • Elation DA2410V 24-Port DIN-Rail 0-10V Ethernet DMX Gateway
  • 2x DIN Rail Clamps
  • 2x Wall Mount Plates
  • 24-Port Terminal Block Connection Plate
  • 2x Screw Terminal with Security Screws
  • 2x IDC Connector with Security Screws
  • Elation 2 Year Limited Warranty
